Details

THE ULTIMATE ALL-ROUNDER

The XR 9.7 GF is built to perform on the road while remaining capable beyond it, combining a lightweight XR Race carbon frame with efficient power transfer at just 17.5 lbs. It balances speed, comfort, and control for long-distance riding across smooth tarmac and rougher surfaces.

BUILT FOR PERFORMANCE

Equipped with a Shimano Ultegra Di2 12-speed drivetrain for precise electronic shifting and efficient gearing, the XR 9.7 GF delivers smooth power transfer and consistent performance. DT Swiss wheels provide reliable rolling efficiency, durability, and stable handling across varied road conditions.

MODERN ROAD DESIGN

Clearance for tires up to 45 mm expands versatility beyond the road. The adaptable frame allows easy conversion between road and gravel setups. UDH compatibility ensures drivetrain future-readiness, while internal cable routing and combo bar integration deliver a clean, streamlined front-end.

INDUSTRY REVIEW

The Superior XR 9.7 GF claims to do it all, and was built to handle any scenario with ease. Designed around an endurance geometry, it’s meant to be a fast and versatile all-rounder. - GRAN FONDO Cycling Magazine

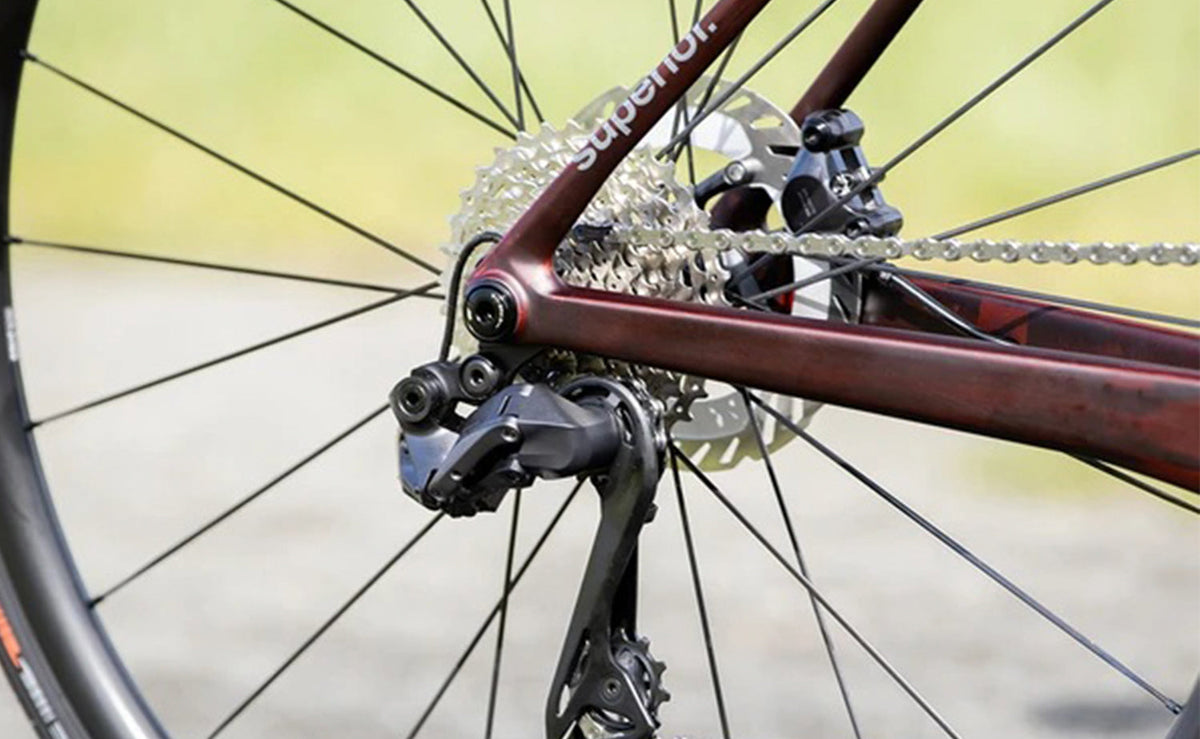

**SHIMANO ULTEGRA Di2 2X12** The 12-speed Ultegra Di2 system delivers fast, precise electronic shifting with consistent performance under load. Its wide gear range supports efficient climbing and sustained speed, while synchronized shifting ensures smooth, intuitive transitions across the entire drivetrain.

**SHIMANO ULTEGRA HYDRAULIC** Engineered for high-speed road performance, these hydraulic disc brakes provide superior modulation and heat dissipation. Expect consistent, one-finger stopping power even during technical alpine descents or in wet, unpredictable conditions.

**DT SWISS ER 1600 WHEELS** Built with a lightweight aluminum rim and DT Swiss Ratchet System hub, these tubeless-ready wheels deliver a balanced mix of stiffness, durability, and reliability. Designed for high-mileage road riding and mixed surfaces, they offer consistent performance with efficient power transfer and long-term dependability.

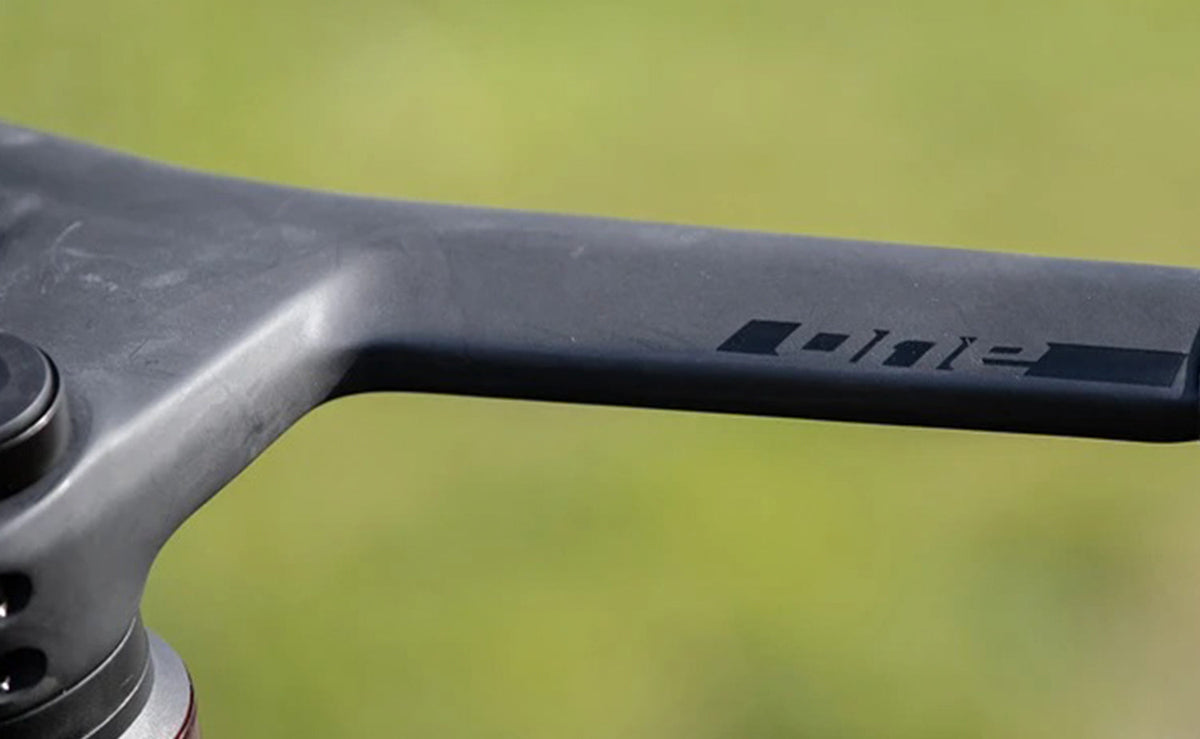

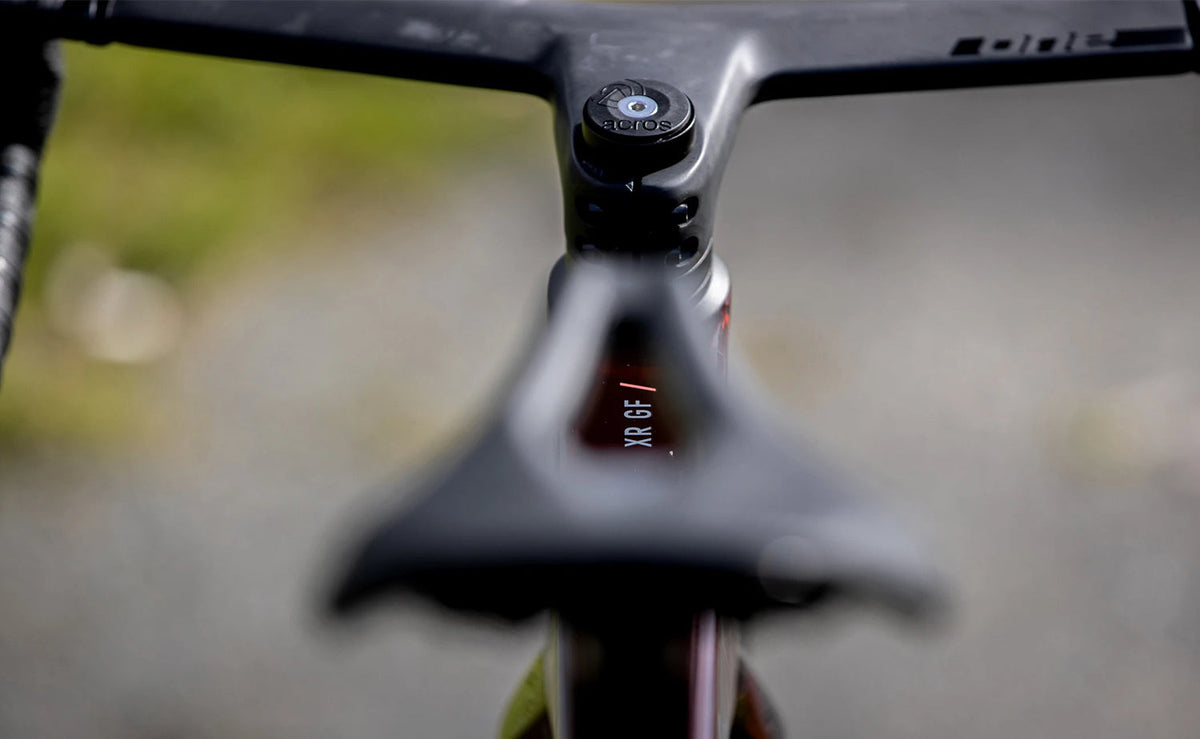

**INTEGRATED COCKPIT** Carbon handlebar and stem combo with full internal cable routing creates a clean front end with no visible cables or hoses. Optimized ergonomics improve hand positioning and control, delivering a precise and comfortable riding experience on road and gravel.

**XR RACE CARBON PLATFORM** Lightweight XR Race high-modulus carbon frame delivers increased stiffness and lower weight, improving power transfer and responsiveness for faster acceleration and more efficient performance on gravel and road.

Specs

frameset
Frame	SU-51-01 Carbon XR Race High Modulus Frame, Road Advanced Geometry, Disc Brake Flat Mount, BB86.5 PressFit Bottom Bracket, SH Dropout, Thru Axle 12x142mm Rear, Internal Cable Routing, Di2 Compatible, Mudguards Ready
Headset	ACROS AIX-525R3S Integrated Headset, OD56, IS52/28.6 – 40, ICR
suspension
Fork	XR High Modulus Carbon Fork, 12x100mm Thru Axle
drivetrain
Rear derailleur	Shimano Ultegra RD-R8150 Shadow Design 12-Speed, Di2
Front derailleur	Shimano Ultegra FD-R8150 Down Swing, Brazed-On Type, Di2
Shifter	Shimano Ultegra R8170 Di2 Hydraulic Shifters, 2-Speed Left / 12-Speed Right
Crank	Shimano Ultegra FC-R8100 Hollowtech II, 165mm (XS, S), 170mm (M), 172.5mm (L, XL), 175mm (XXL)
Chainring	50/34T
Cassette	Shimano Ultegra CS-R8101 12-Speed, 11–34T
Chain	Shimano XT CN-M8100
brakes
Front brake	Shimano Ultegra R8170 Hydraulic Disc, 2-Piston
Rear brake	Shimano Ultegra R8170 Hydraulic Disc, 2-Piston
Rotor	Shimano RT-CL800, 160mm (Front), Shimano RT-CL800, 140mm (Rear)
wheels
Front hub	DT Swiss ER 1600 Spline Hub, 12x100mm Thru Axle
Rear hub	DT Swiss ER 1600 Spline Hub, 12x142mm Thru Axle, Shimano HG Freehub
Rim	DT Swiss ER 1600 Spline, Tubeless Ready
Tyre	Schwalbe Pro One Evo, 30-622, ADDIX Race, V-Guard, Tubeless Ready
Max tyre size	700c x 45mm
contact points
Handlebar	ONE Carbon Integrated Cockpit ICR, 380mm, 70mm (XS), 380mm, 90mm (S), 400mm, 100mm (M), 400mm, 100mm (L), 420mm, 100mm (XL), 420mm, 100mm (XXL) Handlebar and stem are integrated (one-piece design)
Grips	ONE Handlebar Tape
Saddle	Fizik Vento Argo R5 Alloy
Seatpost	ONE Aero Carbon, 400mm, 15mm Offset
Stem	ONE Carbon Integrated Cockpit ICR, 70mm (XS), 90mm (S), 100mm (M), 100mm (L), 100mm (XL), 100mm (XXL)
Pedals	Not Included
weight
Bike weight	17.5 lbs

Geo

	XS (49cm)	S (52cm)	M (54cm)	L (56cm)	XL (58cm)	XXL (61cm)
Rider's Height	5'3"-5'9"	5'7"-5'11"	5'9"-6'1"	5'11"-6'3"	6'1"-6'5"	6'3"-6'7"
Seat Tube Length	421	464	484	504	524	555
Effective Top Tube Length	523	535	545	574	595	616
Seat Tube Angle	74.7°	74°	73.8°	72.6°	72.6°	72°
Head Tube Angle	70.5°	71°	71.5°	71.5°	72°	72°
Head Tube Length	100	120	140	160	180	200
Bottom Bracket Drop	77	77	75	75	73	73
Rear Center	415	415	415	415	415	415
Wheelbase	994	995	1000	1016	1034	1048
Stack	524	545	563	582	601	620
Reach	380	379	381	391	407	414
Crank Length	165	165	170	172.5	172.5	175
Handlebar / Stem (mm)	380/70	380/90	400/100	400/100	420/100	420/100
Seatpost Length / Offset	400 / 15	400 / 15	400 / 15	400 / 15	400 / 15	400 / 15

Build

Assembly Guide - Gravel Bikes

How To Unbox Your Bike
Dial In Your Bike Fit
Dial In Your Tyre Pressures
Pre-Ride Check

Liquid error (sections/bo-main-product line 248): invalid url input

Superior XR 9.7 GF - Carbon Road Bike

Shimano Ultegra Di2 1x12 | DT Swiss ER 1600 Wheels | 17.5 lbs

$4,499.99 ~~$5,499.99~~

30-DayBike returns

Factory pro-builtEasy assembly

Short Description

The ultimate performance all-rounder. Built with a lightweight XR Race carbon frame, Shimano 105 Di2 12-speed, and DT Swiss alloy wheels, the XR 9.7 GF delivers precise electronic shifting, efficient power transfer, and confident speed across long road rides, with the capability to handle light gravel when needed.
