Details

THE EVERYDAY ALL-ROUNDER

The all-new XR 6.5 GR features a redesigned X6 Ultralite aluminum frame with progressive gravel geometry and an XR full carbon fork. Weighing around 23 lbs, the updated geometry includes a longer wheelbase, extended chainstays, and a lower bottom bracket, delivering greater high-speed stability, traction, and control on rough terrain.

RELIABLE PERFORMANCE

Equipped with a Shimano GRX 1x12-speed drivetrain and a 10-45T cassette, this build delivers a wide gear range for steep off-road climbs. DT Swiss R500 tubeless-ready rims and Shimano hubs ensure consistent braking and durable performance across varied surface conditions.

MODERN GRAVEL GEOMETRY

The updated frame utilizes a PressFit 86.5mm bottom bracket to increase stiffness and power transfer. Featuring clearance for 40 mm tires, internal cable routing, and multiple bikepacking mounting points including dedicated top tube bag mounts, it provides a highly practical, versatile setup tailored for mixed-surface riding.

DESIGNED & BUILT IN EUROPE

Superior designs and assembles its bikes in Europe with full control from prototype to production. This factory oversight ensures consistent frame tolerances, tidy routing and durable hardware. With over 200,000 bikes produced annually and race-validated development, the brand focuses on dependable engineering and long-term durability.

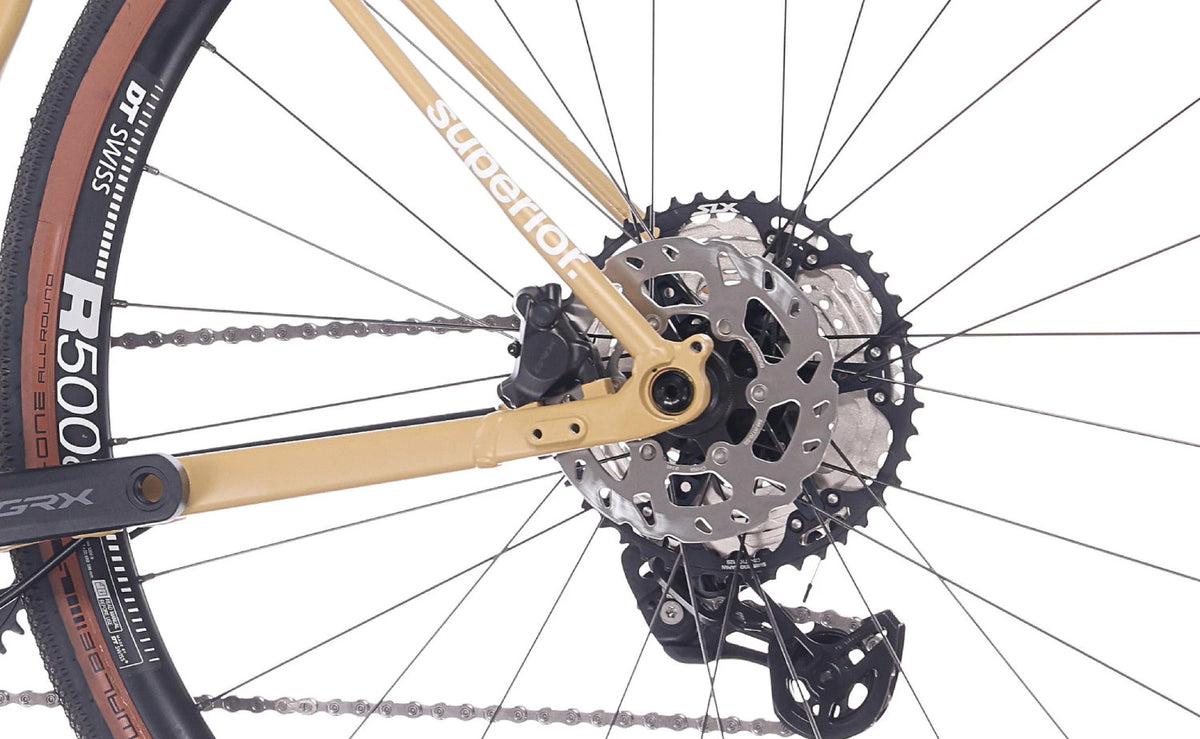

**SHIMANO GRX 1X12** The RX610/RX822 drivetrain system utilizes a 10–45T cassette to provide tight gear spacing for rhythm on flats and low-end torque for steep gravel gradients. The Shadow RD+ clutch mechanism minimizes chain slap and ensures secure shifting performance on high-frequency vibration surfaces.

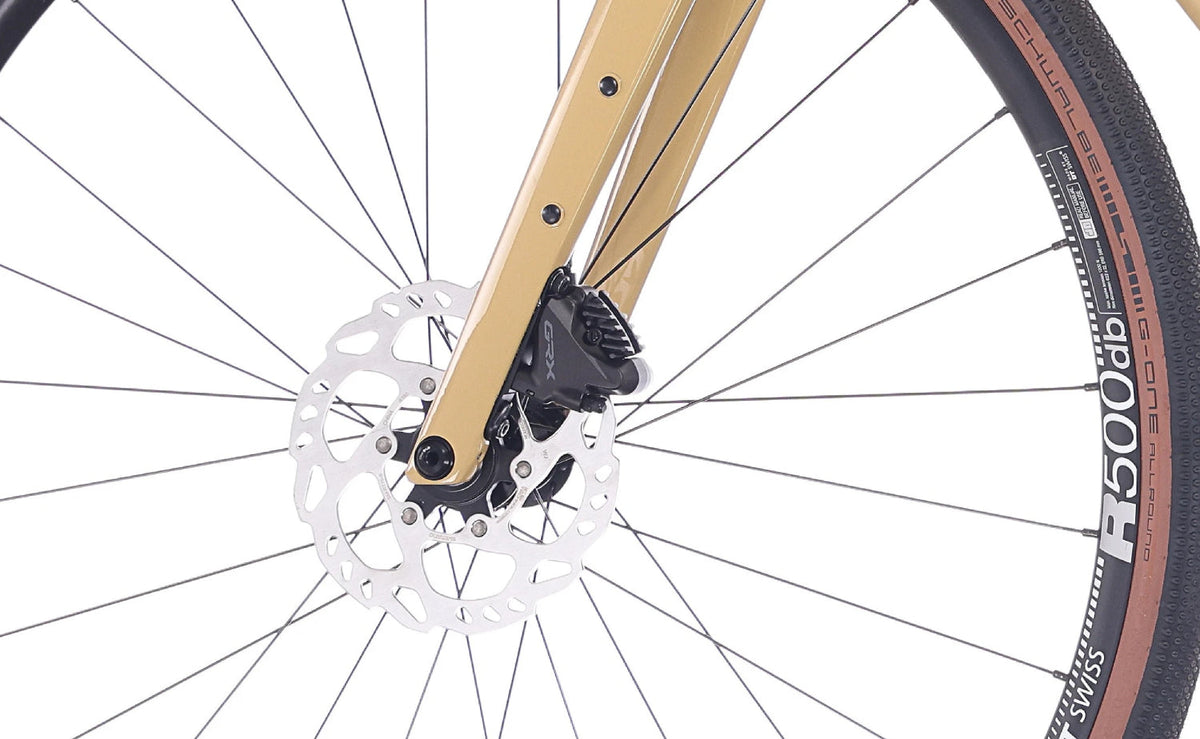

**GRX HYDRAULIC BRAKES** Shimano GRX RX610 hydraulic disc brakes with 160mm front and 140mm rear rotors provide strong, controlled stopping power and smooth modulation, giving you confidence and consistent braking performance in all riding conditions.

**DT SWISS R500 WHEELS** DT Swiss R500 rims feature a 22mm internal width optimized for 40mm tires, allowing for lower tire pressures and increased contact patches. Paired with Shimano hubs, this tubeless-ready wheelset provides the lateral stiffness and impact resistance required for efficient power transfer on rough gravel roads.

**SCHWALBE G-ONE TIRES** Schwalbe G-One Allround tires feature a versatile tread pattern and RaceGuard puncture protection, delivering reliable grip, low rolling resistance, and confidence across both paved roads and loose gravel terrain.

Specs

frameset
Frame	Alu X6 Ultralite X-Road Race, Road Advanced Geometry, Smooth Welding, Flat Mount Disc, BSA 68mm Threaded BB, 142x12mm TA, Internal Cable Routing
Headset	ACROS AIX-643, ICR, OD56, IS52/28.6 – 40IPS
suspension
Fork	X-ROAD Full Carbon, 12x100mm Thru-Axle
drivetrain
Rear derailleur	Shimano GRX RD-RX822, Shadow Plus, 12-Speed
Shifter	Shimano GRX RX610, 12-Speed
Crank	Shimano GRX FC-RX610, 165mm (XS, S) / 170mm (M) / 172.5mm (L, XL) / 175mm (XXL)
Chainring	40T
Cassette	Shimano SLX CS-M7101, 10–45T, 12-Speed
Chain	Shimano Deore CN-M6100, 12-Speed
brakes
Front brake	Shimano GRX RX610 Hydraulic Disc, 2-Piston
Rear brake	Shimano GRX RX610 Hydraulic Disc, 2-Piston
Rotor	Shimano SM-RT70, 160mm (F) / 140mm (R)
wheels
Front hub	Shimano HB-RS470, 28H, 12x100mm, Center Lock
Rear hub	Shimano FH-TC500-MS, 28H, 12x142mm, Center Lock
Rim	DT Swiss R500, 700C, 22mm Inner Width, 26mm Outer Width, 23mm Depth, Tubeless Ready
Tyre	Schwalbe G-One Allround, 40-622, ADDIX, RaceGuard, Tubeless Ready
contact points
Handlebar	ONE Alloy X-Race Aero, 31.8mm, 410mm (XS, S, M) / 430mm (L, XL, XXL)
Saddle	Selle Royal SRX, 148mm
Seatpost	ONE Race Alloy, 27.2mm x 350mm
Stem	ONE Race ICR Alloy, 31.8mm, -7°, 70mm (XS, S) / 80mm (M, L) / 100mm (XL, XXL)
weight
Bike weight	23.3 lbs

Geo

	XS (470mm)	S (490mm)	M (510mm)	L (530mm)	XL (550mm)
Rider's Height (ft/in)	5'3" - 5'8"	5'7" - 5'10"	5'9" - 5'11"	5'11" - 6'3"	6'3" - 6'9"
Seat Tube Length	470	490	510	530	550
Effective Top Tube	530	538	551	579	599
Seat Tube Angle	74°	74°	73.8°	72.6°	72.8°
Head Tube Angle	70.5°	71°	71.5°	71.5°	72°
Head Tube Length	100	130	160	180	200
Bottom Bracket Drop	77	77	75	75	73
Rear Center	425	425	425	425	425
Wheelbase	1004	1009	1016	1033	1051
Stack	523	553	581	600	619
Reach	380	379	381	391	407
Stem Length (mm)	70	70	80	80	100
Handlebar Width (mm)	400	400	400	420	420
Crank Length (mm)	165	165	170	172.5	172.5
Seatpost Length (mm)	350	350	350	350	350

Build

Assembly Guide - Gravel Bikes

How To Unbox Your Bike
Dial In Your Bike Fit
Dial In Your Tyre Pressures
Pre-Ride Check

Liquid error (sections/bo-main-product line 248): invalid url input

Superior XR 6.5 GR - Gravel Bike [New]

Shimano GRX 1x12 | DT Swiss R500 Wheels | 23.3 lbs

$1,799.99 ~~$2,999.99~~

30-DayBike returns

Factory pro-builtEasy assembly

Short Description

The all-new XR 6.5 GR is the ultimate everyday all-rounder designed for riders who want a seamless transition from fast daily commutes to rugged weekend gravel adventures. Re-engineered with a stable, progressive geometry and multiple mounting points including dedicated top tube mounts, this dependable Shimano GRX 1x12-speed machine gives adventure-seeking riders maximum control and utility on any surface.
