Details
ENGINEERED FOR EFFICIENCY
The RR Mid Modulus Carbon frame is designed to balance low weight and stiffness for efficient road performance. Its carbon structure delivers responsive acceleration and stable power transfer, making it ideal for fast group rides and endurance-focused road riding.
BALANCED RACE GEOMETRY
Advanced road geometry combines compact chainstays and a performance-focused seat tube angle for efficient pedaling position. Size-specific stack and reach ensure consistent fit, while a refined head tube angle keeps handling stable at speed and precise through corners.
REFINED INTEGRATION
Internal cable routing keeps the frame clean and reduces drag while maintaining serviceability. A performance-focused cockpit setup completes the package with a streamlined and functional road layout built for everyday speed.
DESIGNED & BUILT IN EUROPE
Superior designs and assembles its bikes in Europe with full control from prototype to production. This factory oversight ensures consistent frame tolerances, tidy routing and durable hardware. With over 200,000 bikes produced annually and race-validated development, the brand focuses on dependable engineering and long-term durability.
Specs
| frameset | |
|---|---|
| Frame | Carbon RR Mid Modulus, Road Advanced Geometry, Disc Brake Flat Mount, BSA 68, SH dropout, Thru Axle 142x12 mm, Internal cable routing, Di2 compatible |
| Headset | ACROS AIX-525, ICR, IS52/28.6 – IS52/40 |
| suspension | |
| Fork | RR Mid Modulus Carbon Fork, Rake 50mm, Thru Axle 12x100 mm, Flat Mount Disc, Internal cable routing |
| drivetrain | |
| Rear derailleur | Shimano 105 R7120, 2x12-Speed |
| Front derailleur | Shimano 105 FD-R7100, Down Swing, Down Pull, Brazed-On Type |
| Shifter | Shimano 105 RD-R7100, Shadow Design, 2x12-Speed |
| Crank | Shimano 105 FC-R7100, Hollowtech II |
| Chainring | Shimano 105 CS-R7101, 12-Speed, 11–34T |
| Cassette | Shimano Deore CN-M6100 |
| brakes | |
| Front brake | Shimano 105 R7120 Hydraulic Disc, 2-Piston |
| Rear brake | Shimano 105 R7120 Hydraulic Disc, 2-Piston |
| Rotor | Front: Shimano SM-RT70, 160mm / Rear: Shimano SM-RT70, 140mm |
| wheels | |
| Front hub | Shimano HB-RS470, 28H, Center Lock, 12x100mm |
| Rear hub | Shimano FH-RS470, 28H, Center Lock, 12x142mm |
| Rim | DT Swiss R500, Disc, 28H, 20mm Internal Width, Sapim Race Spokes and Nipples, Tubeless Ready |
| Tyre | Schwalbe One Performance, RaceGuard, 700x28mm, ADDIX, Tubeless Ready |
| contact points | |

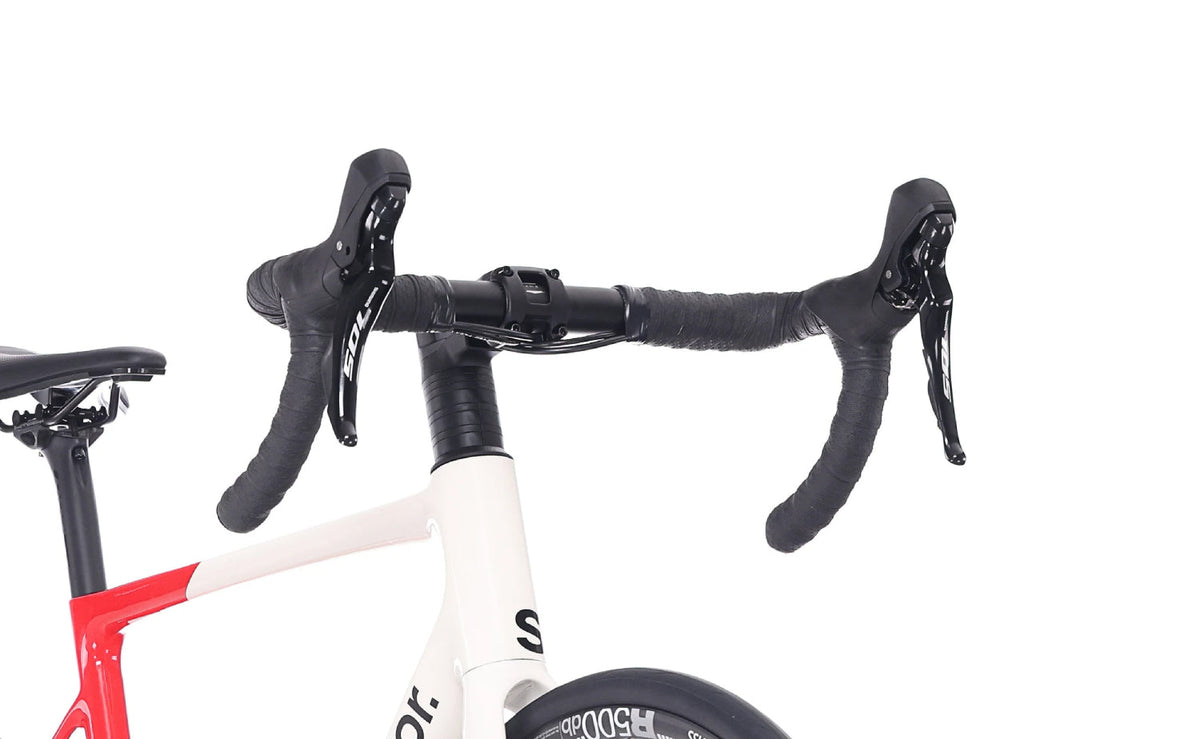

| Handlebar | ONE Alloy X-Race Aero, 31.8mm, Reach 70mm, Drop 127mm, Flare 2°, Backsweep 6° |
| Grips | ONE Handlebar Tape |
| Saddle | Selle Royal SRX, 148mm |
| Seatpost | ONE Carbon, Offset 13mm |
| Stem | ONE Race ICR, Alloy, 31.8mm, -7° |
| Pedals | Not Included |
| weight | |
| Bike weight | 18.5 lbs |
Geo
| 49cm (XS) | 52cm (S) | 54cm (M) | 56cm (L) | 58cm (XL) | |
| Rider's Height (ft/in) | 5'1"–5'5" | 5'3"–5'9" | 5'7"–6'1" | 5'11"–6'5" | 6'2"–6'7" |
| BB Drop (mm) | 74 | 74 | 70 | 70 | 70 |
| Seat Tube Length (mm) | 471 | 486 | 503 | 522 | 533 |
| Effective Top Tube Length (mm) | 503 | 524 | 540 | 555 | 576 |
| Stack Height (mm) | 505 | 527 | 546 | 565 | 584 |
| Reach (mm) | 368 | 378 | 384 | 388 | 397 |
| Seat Tube Angle | 75° | 74.5° | 74° | 73.5° | 73° |
| Head Tube Angle | 71.5° | 72.5° | 73° | 73° | 73° |
| Rear Center (mm) | 410 | 410 | 410 | 410 | 410 |
| Head Tube Length (mm) | 100 | 120 | 140 | 160 | 180 |
| Wheelbase (mm) | 969 | 977 | 981 | 990 | 1005 |
| Stem (mm) | 80 | 80 | 90 | 100 | 110 |
| Handlebar (mm) | 410 | 410 | 410 | 430 | 430 |
| Crankset (mm) | 165, 50-34T | 165, 50-34T | 170, 52-36T | 172.5, 52-36T | 172.5, 52-36T |
| Seatpost (mm) | 400 | 400 | 400 | 400 | 400 |
Build

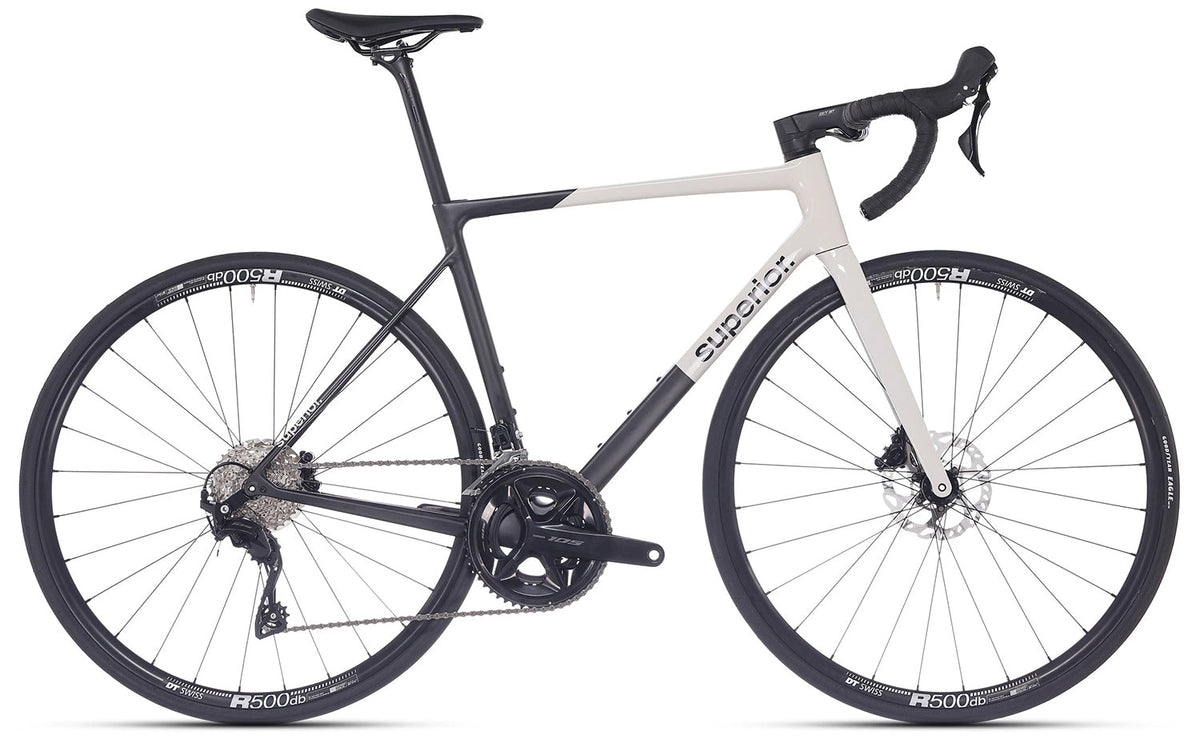

Superior RR 9.8 - Carbon Road Bike
Your bike needs minor assembly before riding; use the tools and videos included.
As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.
Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.
Please follow the video playlist below to complete the setup of your new bike correctly.
How To Unbox Your Bike Your Superior X-Road 9.8 GF
Dial In Your Bike Fit
Dial In Your Tyre Pressures
Pre-Ride Check
