Details

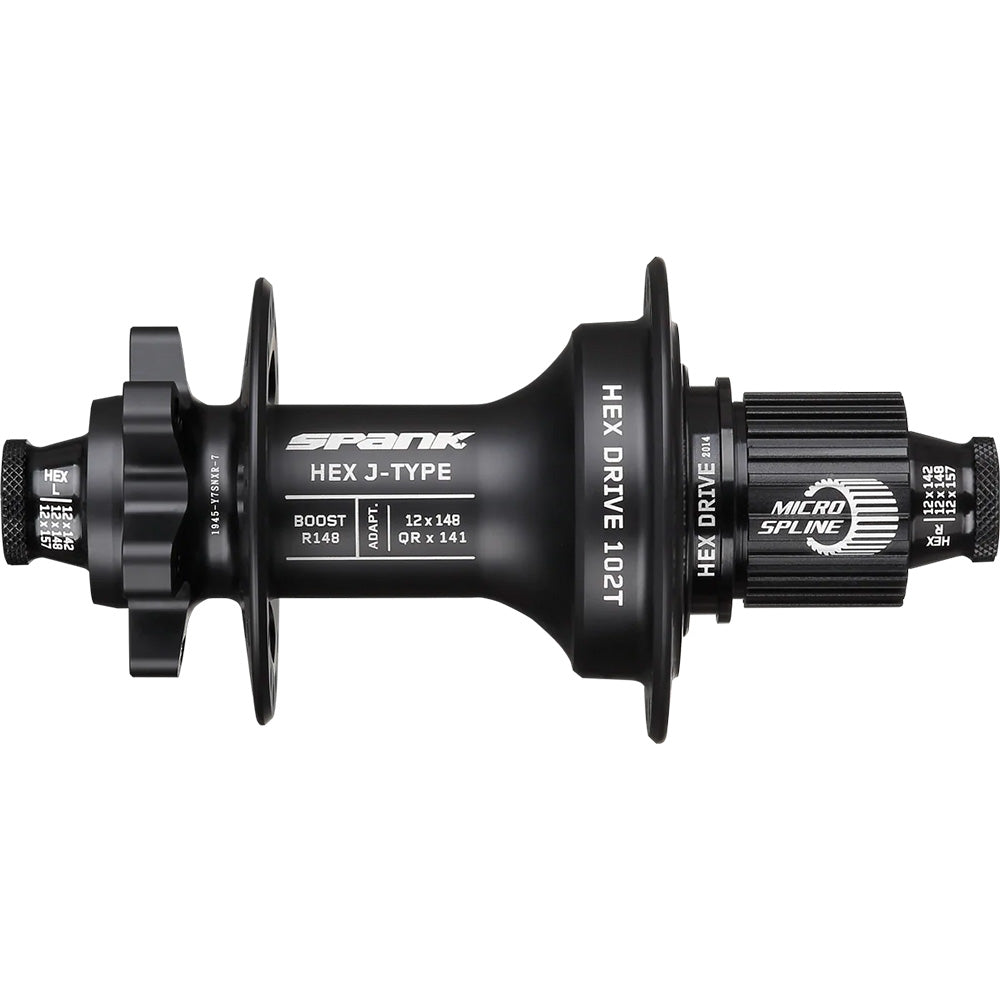

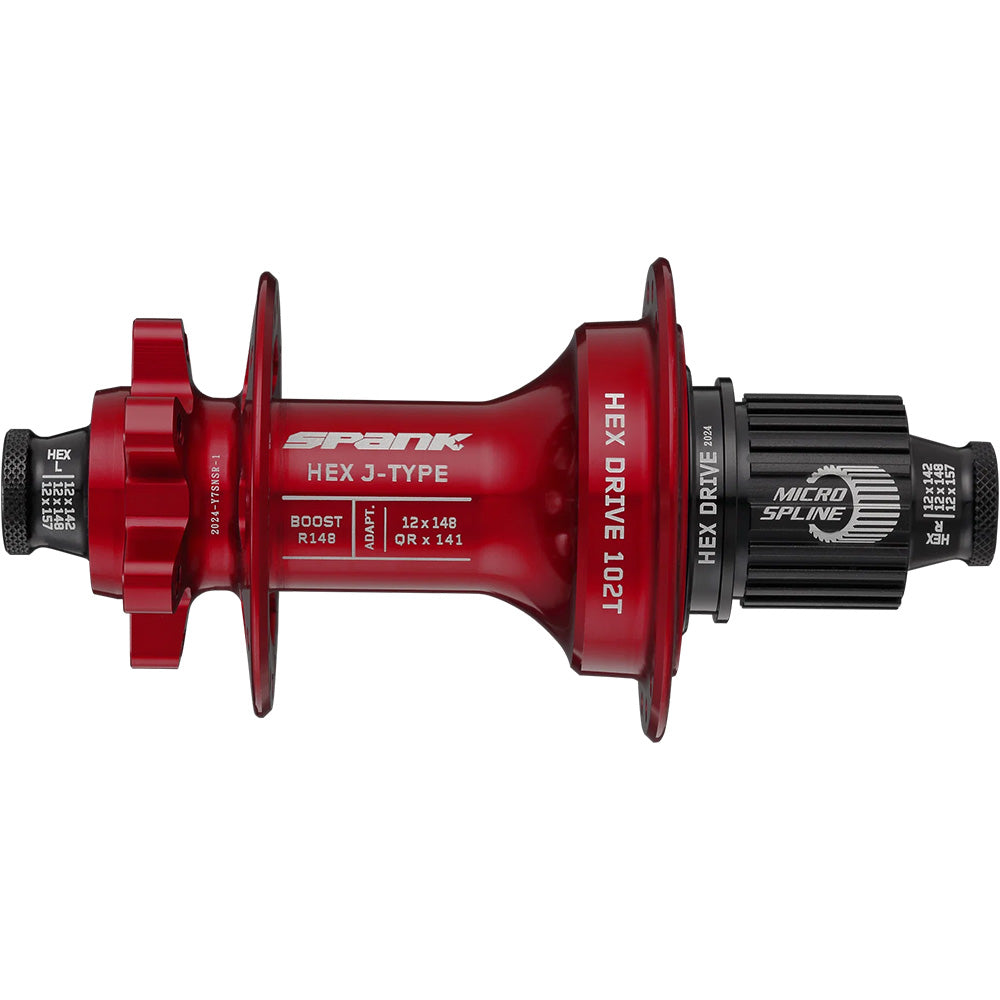

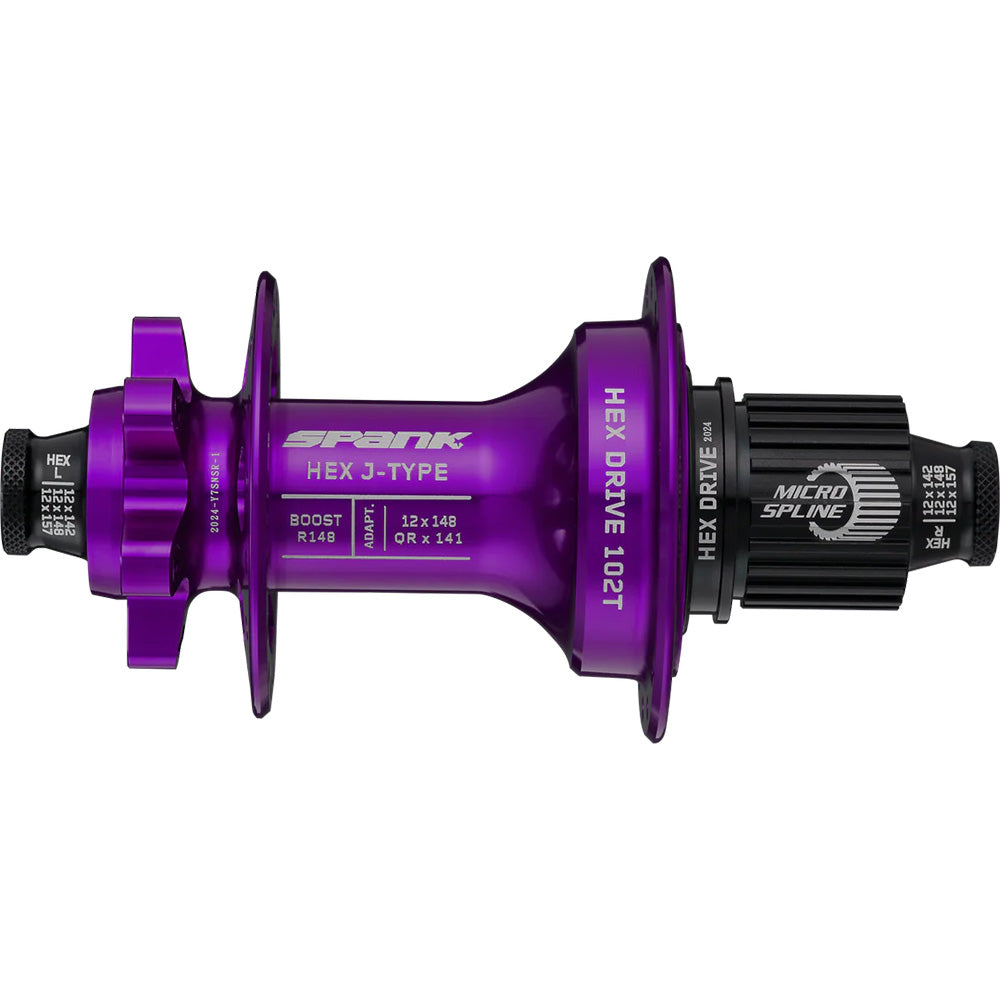

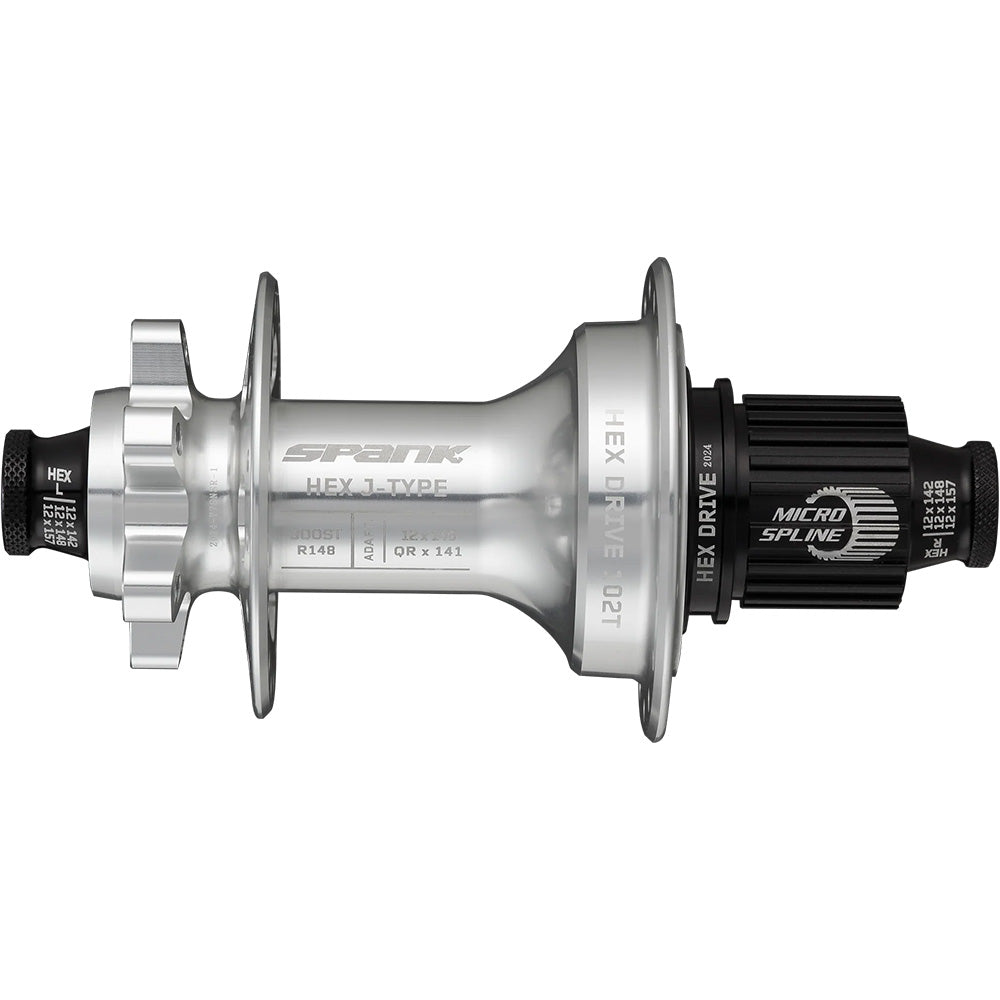

The New SPANK HEX DRIVE HUB, featuring:
- 102T, 6-Pawl 3.5 degree Engagement
- Full Alloy body and axle
- Bite Block Alloy freehubs
- Advanced seal system
Classification & Intended Use
| All Mountain | ✔ |
| Trail | ✔ |
| Enduro | ✔ |
| Freeride | ✔ |
| Downhill | ✔ |
| Gravel | - |
| XC | - |
- SPANK’s HEX DRIVE 102T technology delivers 3.5° engagement, for almost instant pickup
- 6 independent pawls with 3 steps per pawl, work in unison, meaning 18 engagement points per click
- Bite-Block Alloy HG and XD Freehub bodies resist damage from cassettes without the weight penalty of steel
- Unique flange design reduces dish requirement and minimizes tension range between drive side and non-drive side spokes
- Advanced seal system improves prevention of bearing/drive system contamination
Specifications
| Engagement | HEX DRIVE 102T / 3.5° / 6 Pawl |
| Hole Count | 32H J-Hook |
| Disc Mount | 6-bolt |
| Material | CNC optimized forged alloy hub body, alloy axle, alloy freehub body |
| Finish | Matte anodized, laser logos |
Hub Configurations
| Configuration | Axle / Spacing | Freehub | Weight ± | Adapters Included | Adapters Available Separately |
|---|---|---|---|---|---|
| Boost R148 HG | Boost 12x148mm, J-hook | Alloy HG | 318g | None | Boost QRx141 |
| Boost R148 XD | Boost 12x148mm, J-hook | Alloy XD | 310g | None | Boost QRx141 |
| Boost R148 Microspline | Boost 12x148mm, J-hook | Alloy MICROSPLINE | 322g | None | Boost QRx141 |
| R150/157 HG | 12x150mm, J-hook | Alloy HG | 323g | 12x157 | None |
| R150/157 XD | 12x150mm, J-hook | Alloy XD | 315g | 12x157 | None |
| R150/157 Microspline | 12x150mm, J-hook | Alloy MICROSPLINE | 327g | 12x157 | None |
| R135/142 HG | 12x142mm, J-hook | Alloy HG | 314g | 12x135 | QRx135, 10x135 |
| R135/142 XD | 12x142mm, J-hook | Alloy XD | 309g | 12x135 | QRx135, 10x135 |
HEX J-Type for E-Bike
To handle the extra torque experienced in electric assisted mountainbikes, HEX E-PLUS Rear Hubs are enhanced with a steel freehub body and high grade bearings.
EPAC Standard & E-bike Class 1 compatible.
Available in Boost 148 HG, XD & Microspline.
| Configuration | Axle / Spacing | Freehub | Weight ± | Adapters Included | Adapters Available Separately |
|---|---|---|---|---|---|
| Boost 148 HG E-PLUS | Boost 12x148mm, J-hook | Steel HG | 406.5g | None | Boost QRx141 |
| Boost 148 XD E-PLUS | Boost 12x148mm, J-hook | Steel XD | 395g | None | Boost QRx141 |
| Boost 148 Microspline E-PLUS | Boost 12x148mm, J-hook | Steel MICROSPLINE | 380.5g | None | Boost QRx141 |
Compatible Adapters & Service Kits
Use the information below to determine compatible adapters & service parts, or visit the SPANK service parts collection.
Boost R148
- HEX Rear Hub QRx135/141 Adapter
R150/157
N/A
R135/142
- HEX Rear Hub QRx135/141 Adapter
- HEX Rear Hub 10x135 Adapter
Compatible Service Kits
- HEX Rear HG/HGR Hub Replacement Bearing Kit
- HEX Rear XD/XDR Hub Replacement Bearing Kit
- HEX Boost Rear Hub Alloy Axle Shaft
- HEX Rear Hub 135/142mm Alloy Axle Shaft
- HEX Rear Hub 150/157mm Alloy Axle Shaft
- HEX Rear Hub HG Alloy Anti-Bite Freehub
- HEX Rear Hub XD Alloy Freehub
