Details
Front and center of any great wheelset.

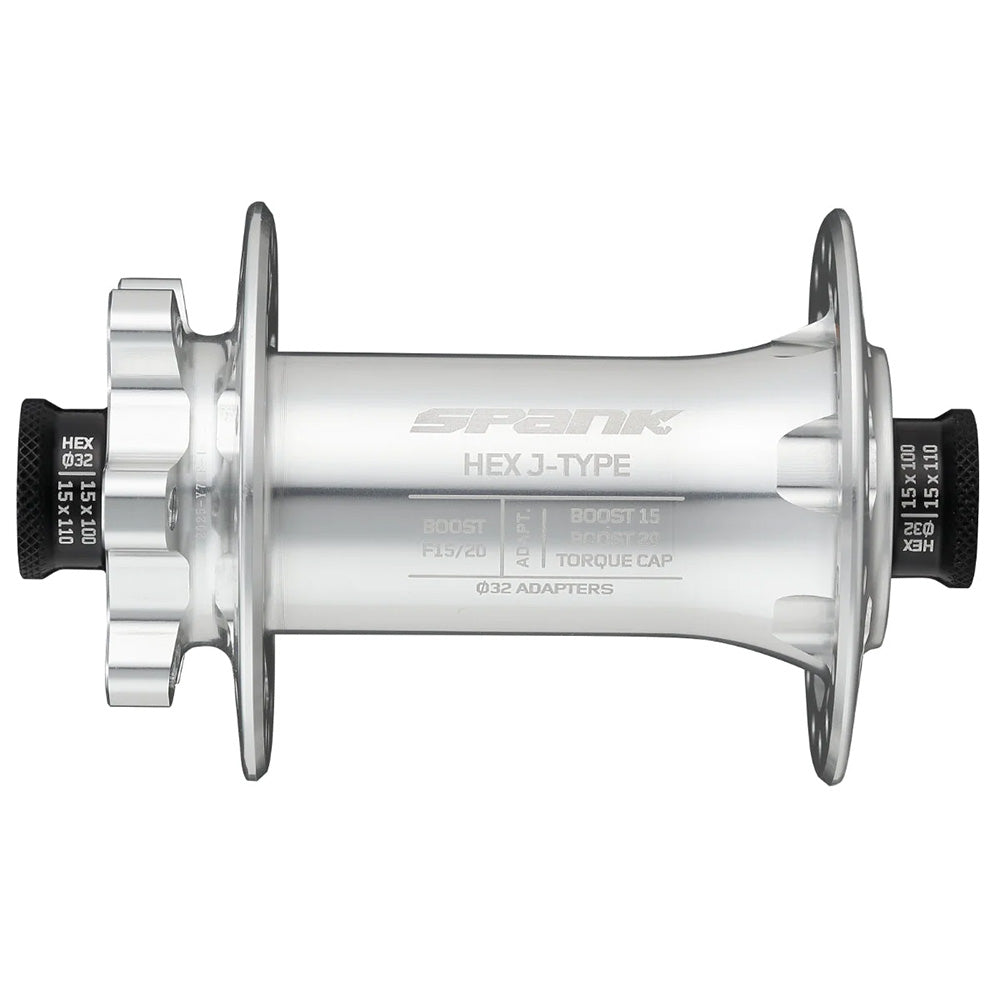

The New SPANK HEX DRIVE HUB, featuring:
- Oversized bearings for optimal adaptability
- Simple to maintain
- Light weight
- Advanced seal system
- Choose from BOOST 15/20x110mm or Non-Boost 15x100/20x110mm
Classification & Intended Use
| All Mountain | ✔ |
| Trail | ✔ |
| Enduro | ✔ |
| Freeride | ✔ |
| Downhill | ✔ |
| Gravel | - |
| XC | - |
- Weight optimized, gravity inspired front hub
- Ø32 Oversized bearings, allow adaptability up to 20mm thru-axles
- Unique flange design reduces dish requirement and minimizes tension range between the drive side and non-drive side spokes
- Compatible with Ø32 HEX front hub adapters only
- Advanced seal system improves prevention of bearing contamination
Specifications
| Hole Count | 32H J-Hook |
| Disc Mount | 6-bolt |
| Material | CNC optimized forged alloy hub body |
| Finish | Matte anodized, laser logos |
Hub Configurations
| Boost F15/20 | F15/20 | |
|---|---|---|
| Configuration | Boost 15x110, J-hook | 20x110, J-hook |
| Weight ± | 173g | 165g |
| Adapters Included | Ø32 Boost 20x110 | Ø32 15x100 |
| Adapters Available Separately | Ø32 Torque Caps | Ø32 QRx100, Ø32 12x100 |
Compatible Adapters & Service Kits
Boost F15/20
- HEX Ø32 Boost Front Hub Torque Caps Adapter
F15/20
- HEX Ø32 Front Hub QRx100 Adapter
- HEX Ø32 Front Hub 12x100 Adapter
All HEX J-Type Front Hubs
- HEX Ø32 Front Hub Boost 15x110 Conversion Kit
- HEX Ø32 Front Hub Boost 20x110 Conversion Kit
- HEX Ø32 Front Hub Replacement Bearing Kit
