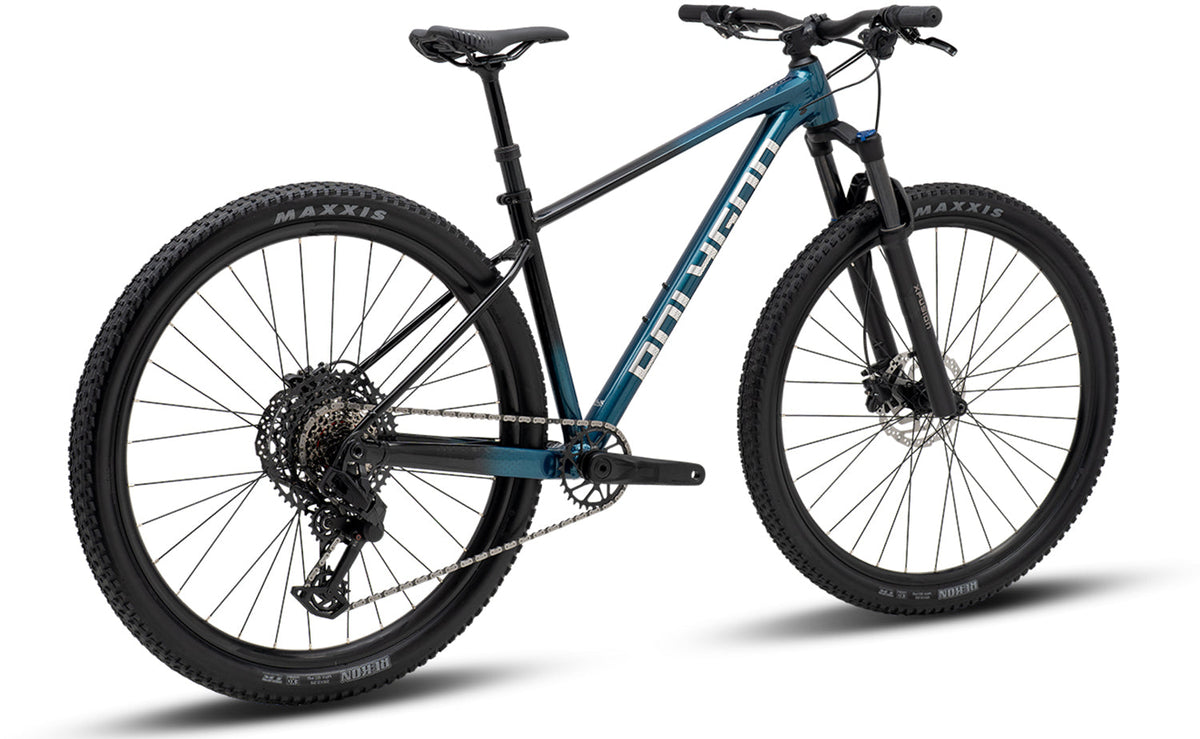

Polygon Xtrada 7 - Mountain Bike [New] - hardtail mountain bike
Polygon Xtrada 7 - Mountain Bike [New] - hardtail mountain bikes product image 2
Polygon Xtrada 7 - Mountain Bike [New] - hard tail mountain bike product image 3
Polygon Xtrada 7 - Mountain Bike [New] - hardtail mountain bike product image 4
Polygon Xtrada 7 - Mountain Bike [New] - hardtail mountain bikes product image 5
Polygon Xtrada 7 - Mountain Bike [New] - hard tail mountain bike product image 6
Polygon Xtrada 7 - Mountain Bike [New] - hardtail mountain bike product image 7
Polygon Xtrada 7 - Mountain Bike [New] - hardtail mountain bikes product image 8
Polygon Xtrada 7 - Mountain Bike [New] - hard tail mountain bike product image 9
Polygon Xtrada 7 - Mountain Bike [New] - hardtail mountain bike product image 10
Polygon Xtrada 7 - Mountain Bike [New] - hardtail mountain bikes product image 11
Polygon Xtrada 7 - Mountain Bike [New] - hard tail mountain bike product image 12
Polygon Xtrada 7 - Mountain Bike [New] - hardtail mountain bike product image 13
Polygon Xtrada 7 - Mountain Bike [New] - hardtail mountain bikes product image 14
Polygon Xtrada 7 - Mountain Bike [New] - hard tail mountain bike product image 15
Polygon Xtrada 7 - Mountain Bike [New] - hardtail mountain bike product image 16

Details

YOUR FIRST REAL MTB

YOUR FIRST REAL MTB

Built to open the door to real mountain biking, with handling that feels composed, efficient, and confidence-inspiring from the first ride. Stable on loose terrain yet responsive under power, it encourages riders to progress onto faster, more technical trails.

MODERN XC GEOMETRY

MODERN XC GEOMETRY

Modern XC geometry creates a refined balance of stability and agility. A more confident front end improves control on descents, while an efficient pedaling position and 29-inch wheels help maintain speed smoothly across varied trail conditions.

TRAIL-READY PERFORMANCE

TRAIL-READY PERFORMANCE

A lightweight 120 mm air fork gives the Xtrada 7 a more responsive, performance-focused feel, while the SRAM 12-speed drivetrain, hydraulic brakes, and dropper post work together for confident control across demanding terrain.

X-FUSION MIGO 32 RC
X-FUSION MIGO 32 RC 120 mm air-spring fork with lockout and adjustable rebound, allowing riders to fine-tune fork return speed to suit rider weight and trail conditions. 32 mm stanchions, a lightweight aluminum tapered steerer and Boost 15x110 axle improve stiffness and steering precision.
SRAM EAGLE 70 12-SPEED
SRAM EAGLE 70 12-SPEED SRAM Eagle 70 12-speed delivers a wide 10–51T gear range for efficient pedalling across climbs, flats, and varied terrain, paired with a 165 mm crank and X-12 chain for consistent power transfer.
SHIMANO MT200 HYDRAULIC
SHIMANO MT200 HYDRAULIC 2‑piston hydraulic disc brakes provide predictable stopping power and modulation for XC and trail riding, keeping control consistent on climbs, descents, and loose terrain.
X-FUSION MANIC DROPPER POST
X-FUSION MANIC DROPPER POST Internal dropper lets you lower the saddle at the press of a lever, getting it out of the way for descents and obstacles to increase manoeuvrability and confidence, then raise it instantly for climbing.
BOOST AXLES & UDH
BOOST AXLES & UDH Boost 15×110 / 12×148 hub spacing increases wheel stiffness and tire clearance for more precise handling. The Universal Derailleur Hanger standard protects drivetrain alignment from impacts and makes hanger replacement simple and widely compatible.
Any questions? Chat to our friendly team
Specs
frameset
FrameALX XC 29", Aluminium, Hardtail, Internal Cable Routing, 12x148mm Thru Axle Rear, UDH Hanger, Post-Mount Disc Brake 160mm
HeadsetZero Stack w/ Sealed Bearings, ZS 44/28.6 Top | ZS 56/40 Bottom
suspension
ForkX-Fusion Migo 32, 120mm Travel, Air Spring, RC Damper, Lockout, Adjustable Rebound, 15x110mm Boost Thru-Axle, Tapered Alloy Steerer
drivetrain
Rear derailleurSRAM RD-70-A1, 12-Speed
ShifterSRAM SL-70-A1, 12-Speed Trigger
CrankSRAM Eagle 70 T-Type, 165mm
Chainring32T
CassetteSRAM CS-XS-1270-A1, 12-Speed
ChainSRAM Eagle 70 T-Type, 12-Speed
brakes
Front brakeShimano MT200, 2-Piston, Hydraulic Disc
Rear brakeShimano MT200, 2-Piston, Hydraulic Disc
RotorShimano SM-RT10, 160mm
wheels
Front hubNovatec D041SB-15, Boost Thru Axle 15x110mm, 32H, Centerlock Compatible, Alloy Body, Sealed Bearings
Rear hubNovatec D442SB, Boost Thru Axle 12x148mm, 32H, Microspline Compatible, Centerlock Rotor Interface, Alloy Body, Sealed Bearings
RimAlloy Double Wall, Internal Width 30mm, Depth 23mm, 32H, Tubeless-Ready
TyreMaxxis Rekon 29x2.25", TLR, Tubeless-Ready
Max tyre size29x2.25"
contact points
HandlebarPolygon Sport, 760mm Width, 20mm Rise, 9° Bend, 31.8mm Diameter, Alloy
SaddleLinc Void, Steel Rails ø7mm
SeatpostX-Fusion Manic LC Dropper Post, 30.9x350mm, 150mm Travel, Alloy
StemPolygon Sport, 40mm Length, 3° Rise/Drop, Alloy
PedalsOne-Piece PP Body
weight
Bike weight30lbs
Geo

  S M L XL
Rider Height 5'1"-5'5" 5'5"-5'9" 5'9"-6'1" 6'1"-6'5"
(A) Stack 620 629 638 647
(B) Reach 410 430 450 470
(C) Head Tube Angle 67° 67° 67° 67°
(D) Head Tube Length 90 100 110 120
(E) Seat Tube Angle 73° 73° 73° 73°
Seat Tube Angle Effective 74° 74° 74° 74°
(F) Seat Tube Length 390 430 450 470
(G) Top Tube Effective 586 609 632 655
(H) Bottom Bracket Height 313 313 313 313
(I) Bottom Bracket Offset 60 60 60 60
(J) Chainstay 432 432 437 437
(K) Wheel Base 1121 1145 1174 1198
(L) Standover Height 725 756 772 788
Fork Travel 120 120 120 120

* All lengths in mm

Build

2024 Polygon Xtrada 7 1x12 Assembly Video

Your bike needs minor assembly before riding; use the tools and videos included.

As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.

Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.

  1. Unboxing Your 2024 Polygon Xtrada 7 1x12

  2. Bike Fit Setup

  3. Tyre Pressure Setup
