Details

YOUR FIRST REAL MTB

YOUR FIRST REAL MTB

Built to open the door to real mountain biking, with handling that feels composed, efficient, and confidence-inspiring from the first ride. Stable on loose terrain yet responsive under power, it encourages riders to progress onto faster, more technical trails.

MODERN XC GEOMETRY

MODERN XC GEOMETRY

Modern XC geometry creates a refined balance of stability and agility. A more confident front end improves control on descents, while an efficient pedaling position and 29-inch wheels help maintain speed smoothly across varied trail conditions.

TRAIL-READY PERFORMANCE

TRAIL-READY PERFORMANCE

A 120 mm air fork brings more tunable front-end performance, while the dropper post adds confidence on descents and technical terrain. Shimano Deore 12-speed gearing and hydraulic disc brakes round out a more capable trail package.

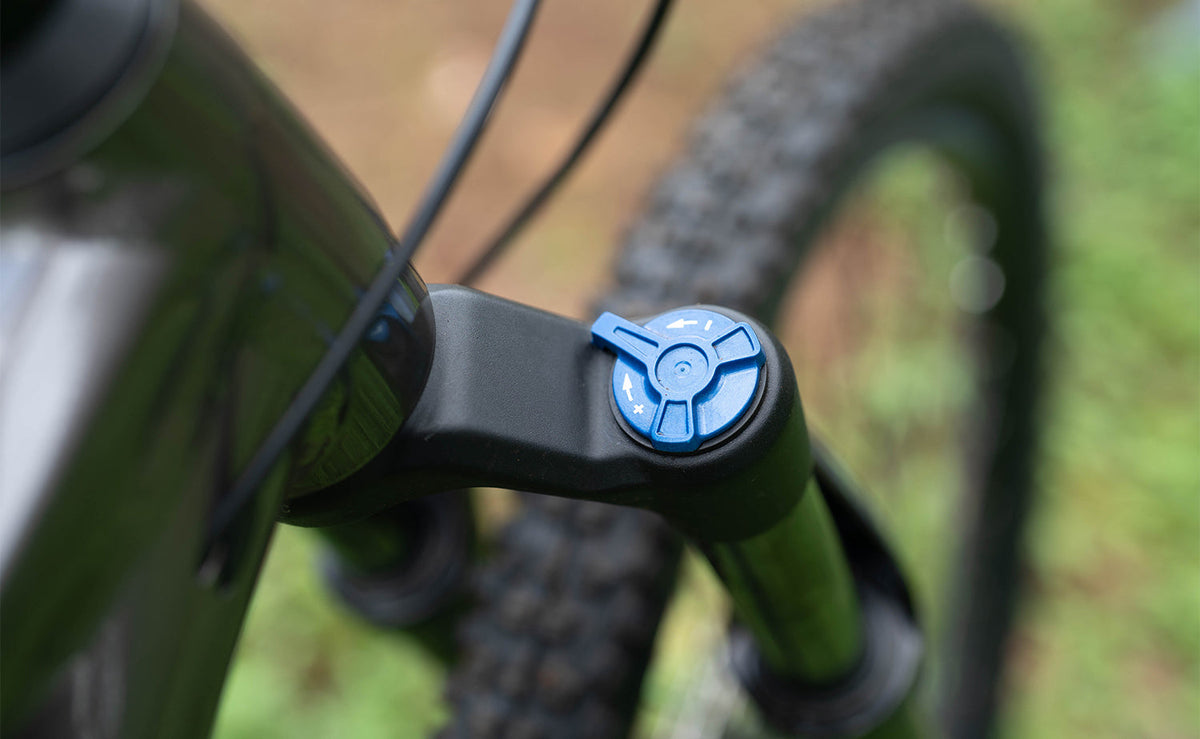

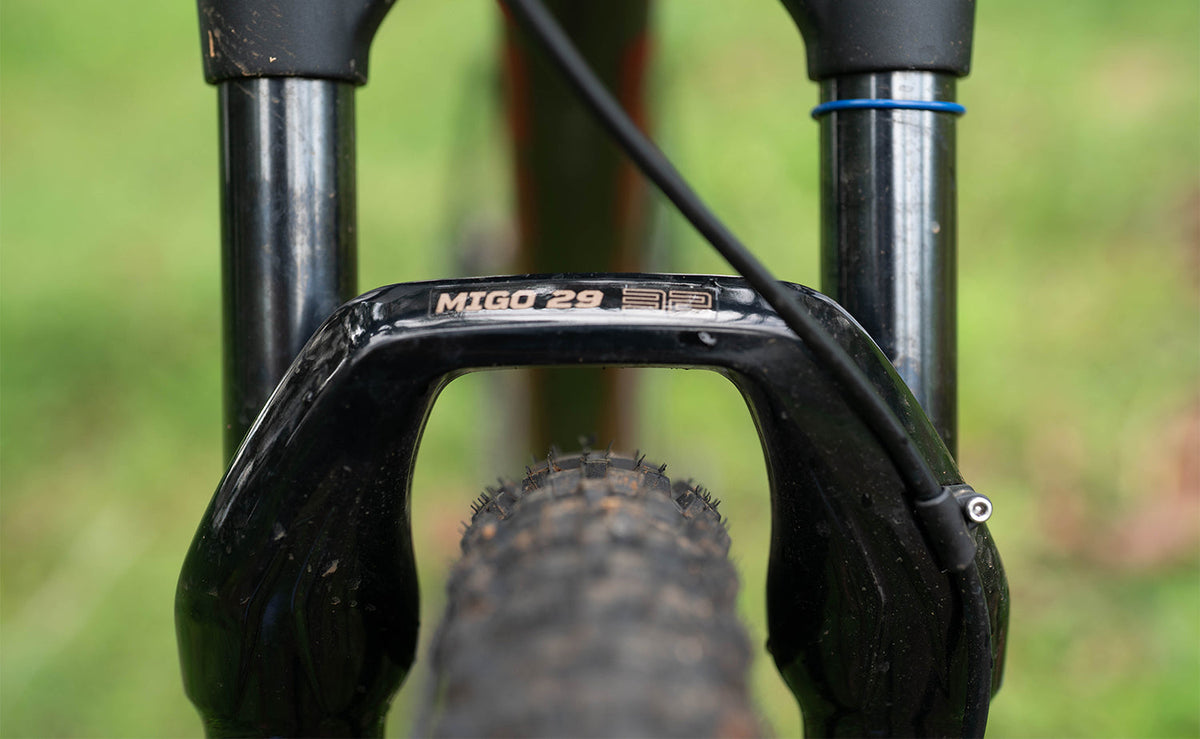

X-FUSION MIGO 32 LO
X-FUSION MIGO 32 LO 120 mm air-spring fork with lockout and tuneable air pressure to suit rider weight and riding style, while 32 mm stanchions, a tapered steerer and a Boost 15x110 front axle improve stiffness and steering precision.
DEORE 12-SPEED DRIVETRAIN

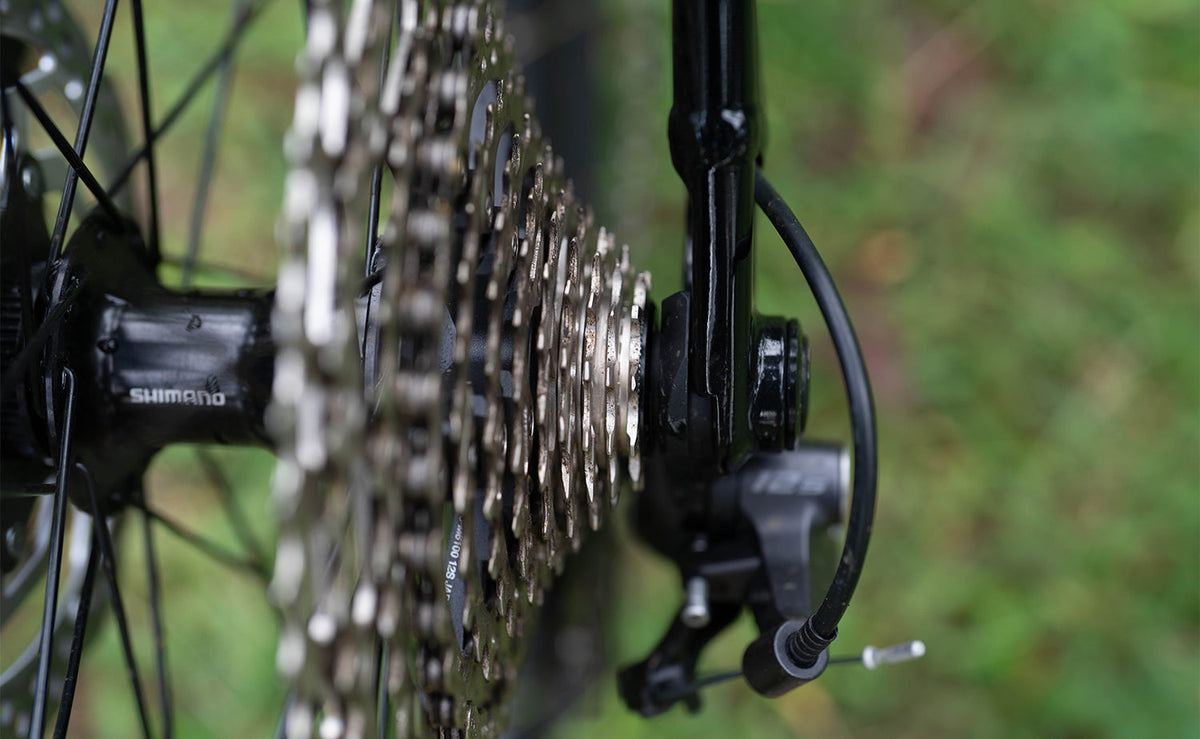

DEORE 12-SPEED DRIVETRAIN HyperGlide+ shift ramps enable under-load shifting with a 10–51T cassette on Micro-Spline freehub. Durable steel sprockets optimize longevity and value for trail riding.
SHIMANO MT200 HYDRAULIC BRAKES
SHIMANO MT200 HYDRAULIC BRAKES Two-piston hydraulic system delivers consistent modulation and fade resistance. Mineral oil and a closed hydraulic layout minimize maintenance and improve lever feel compared to mechanical discs.

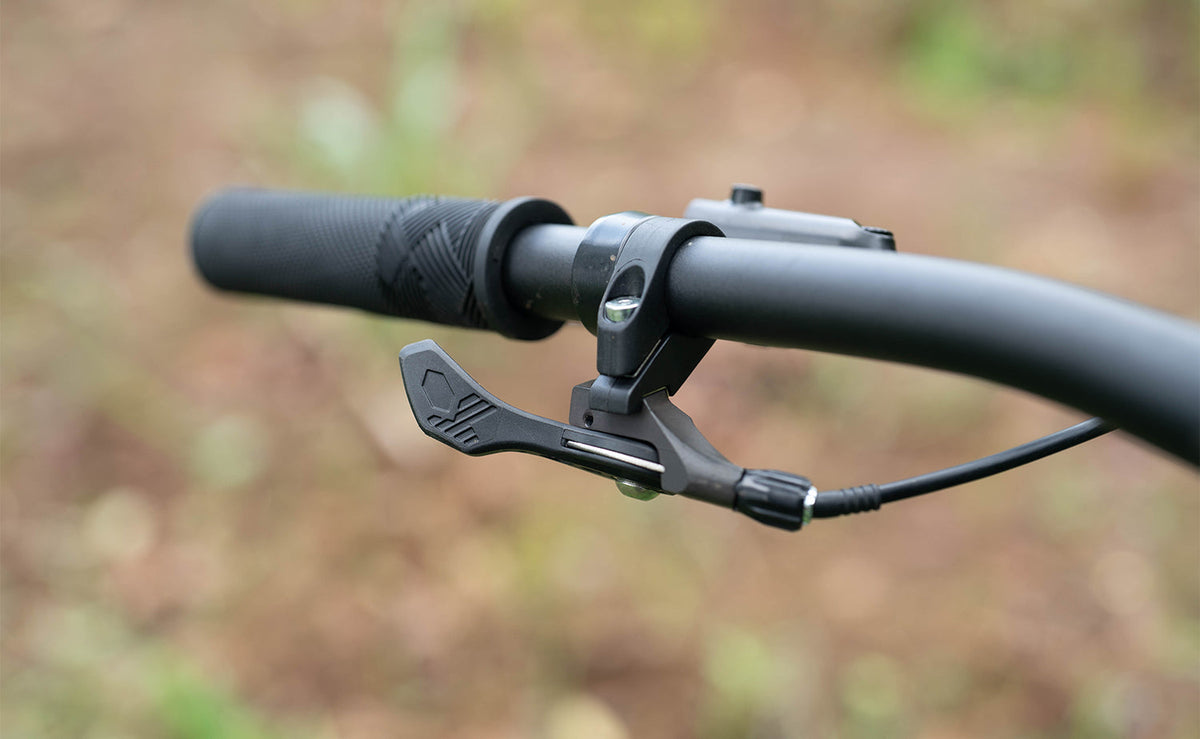

X-FUSION MANIC DROPPER POST
X-FUSION MANIC DROPPER POST Internal dropper lets you lower the saddle at the press of a lever, getting it out of the way for descents and obstacles to increase maneuverability and confidence, then raise it instantly for climbing.
BOOST AXLES & UDH
BOOST AXLES & UDH Boost 15×110 / 12×148 hub spacing increases wheel stiffness and tIre clearance for more precise handling. The Universal Derailleur Hanger standard protects drivetrain alignment from impacts and makes hanger replacement simple and widely compatible.
Any questions? Chat to our friendly team
Specs
frameset

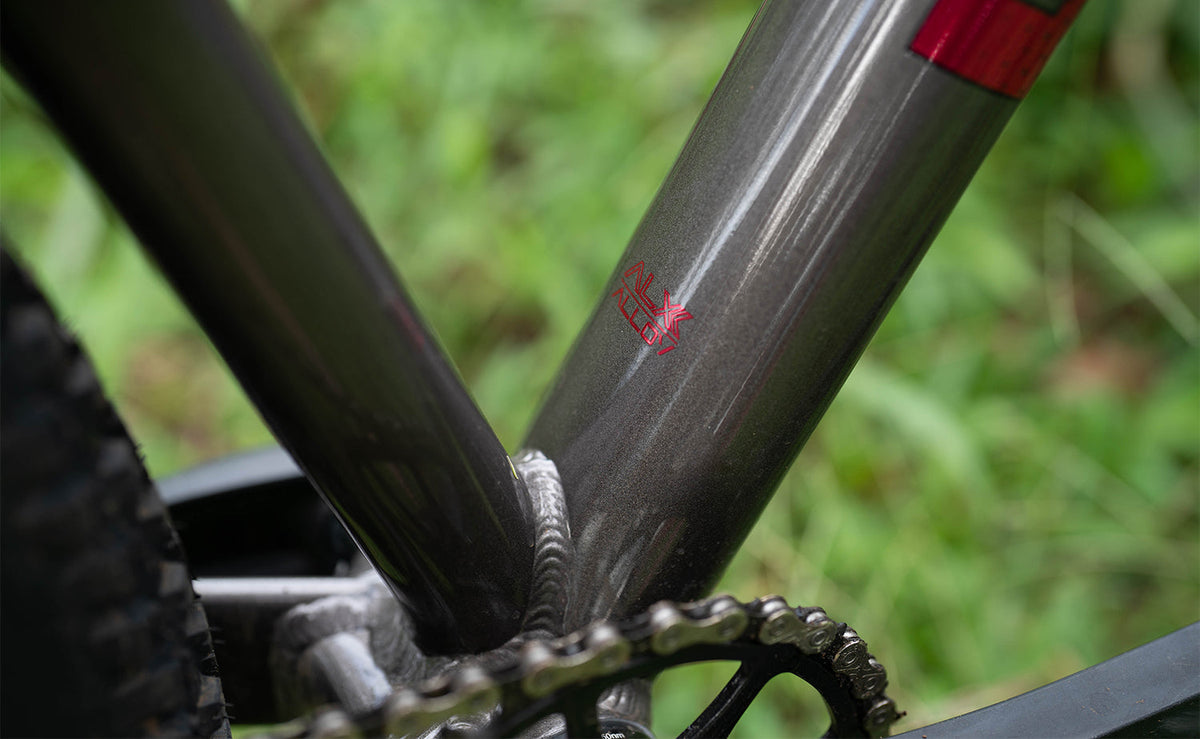

FrameALX XC 29", Aluminum, Hardtail, Internal Cable Routing, 12x148mm Thru Axle Rear, UDH Hanger, Post-Mount Disc Brake 160mm
HeadsetZero Stack w/ Sealed Bearings, ZS 44/28.6 Top | ZS 56/40 Bottom
suspension
ForkX-Fusion Migo 32, 120mmTravel, Air Spring, LO Damper, Lockout, Fixed Rebound, 15x110mm Boost Thru-Axle, Tapered Steel Steerer
drivetrain

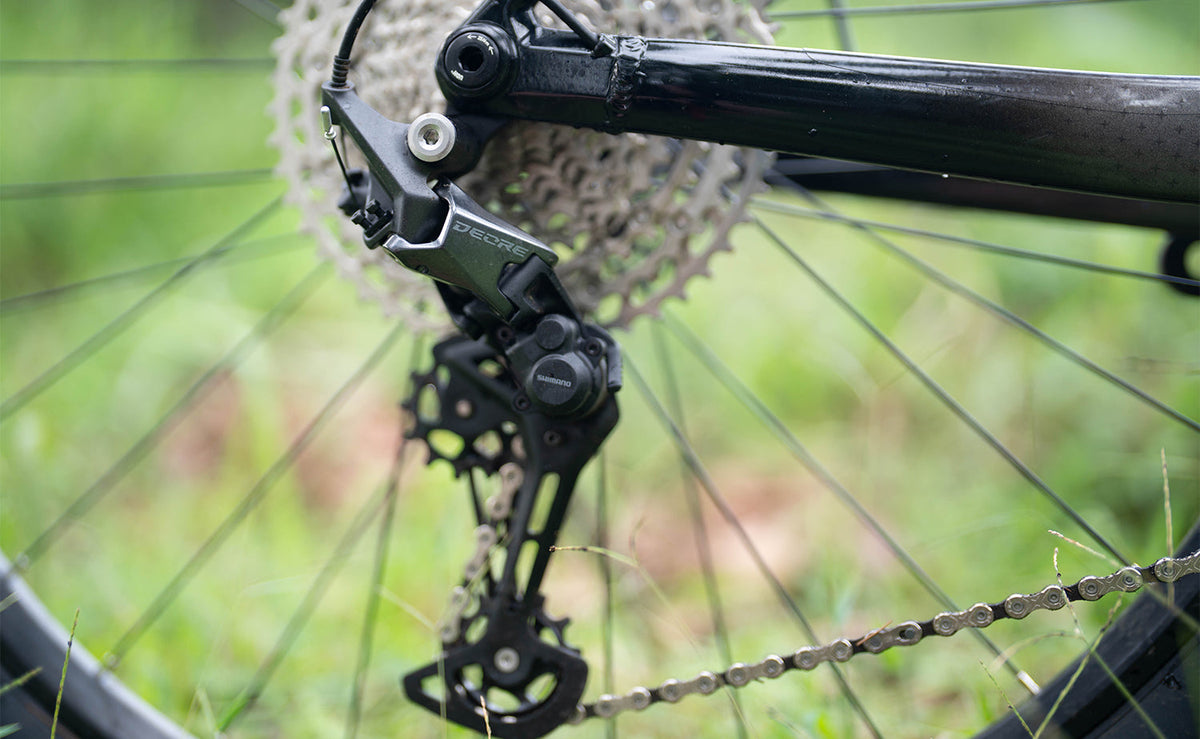

Rear derailleurShimano Deore RD-M6100, 12-Speed

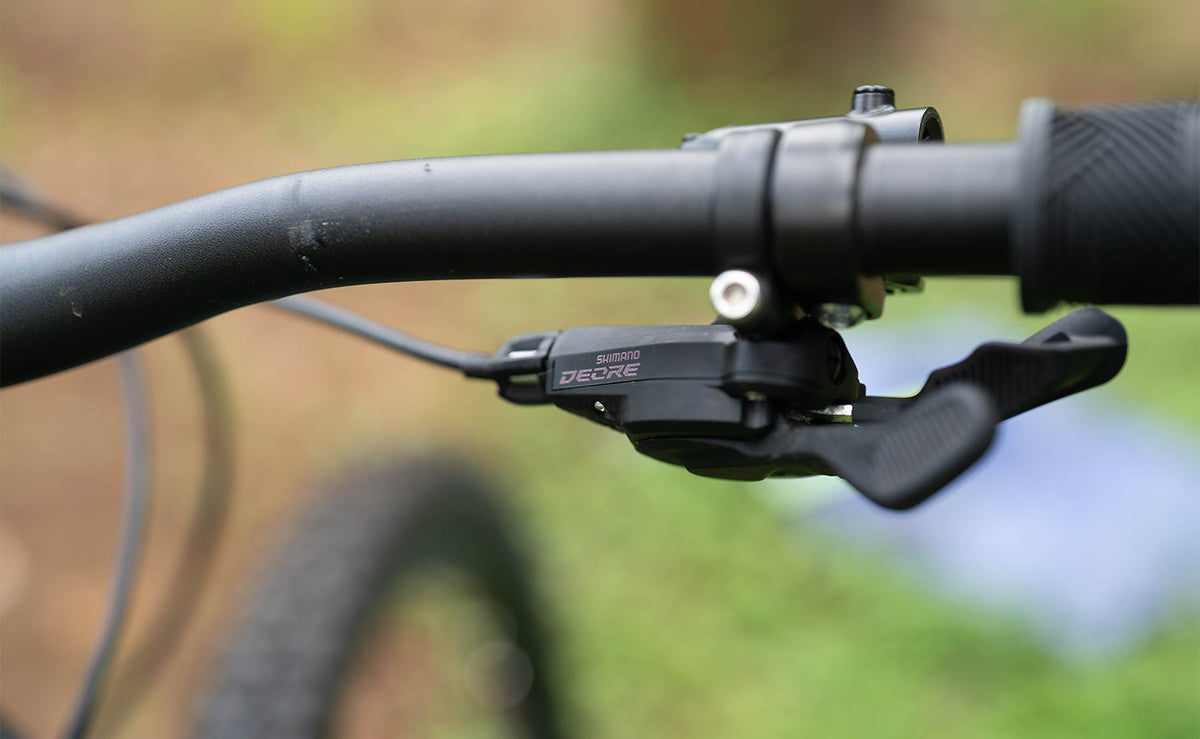

ShifterShimano Deore SL-M6100, 12-Speed Trigger
CrankSamox RAC61, 2-Piece, 165mm
Chainring32T
CassetteShimano CS-M6100-12, 12-Speed
ChainKMC X-12, 12-Speed
brakes
Front brakeShimano MT200, 2-Piston, Hydraulic Disc
Rear brakeShimano MT200, 2-Piston, Hydraulic Disc
RotorShimano SM-RT10, 160mm
wheels
Front hubShimano TC500 Thru Axle 15x110mm
Rear hubShimano TC500 Thru Axle 12x148mm, Microspline
RimAlloy Double Wall, Internal Width 23mm, Depth 19mm, 32H, Tubeless-Ready
TyreWTB Trail Boss, 29x2.25"
Max tyre size29x2.25"
contact points

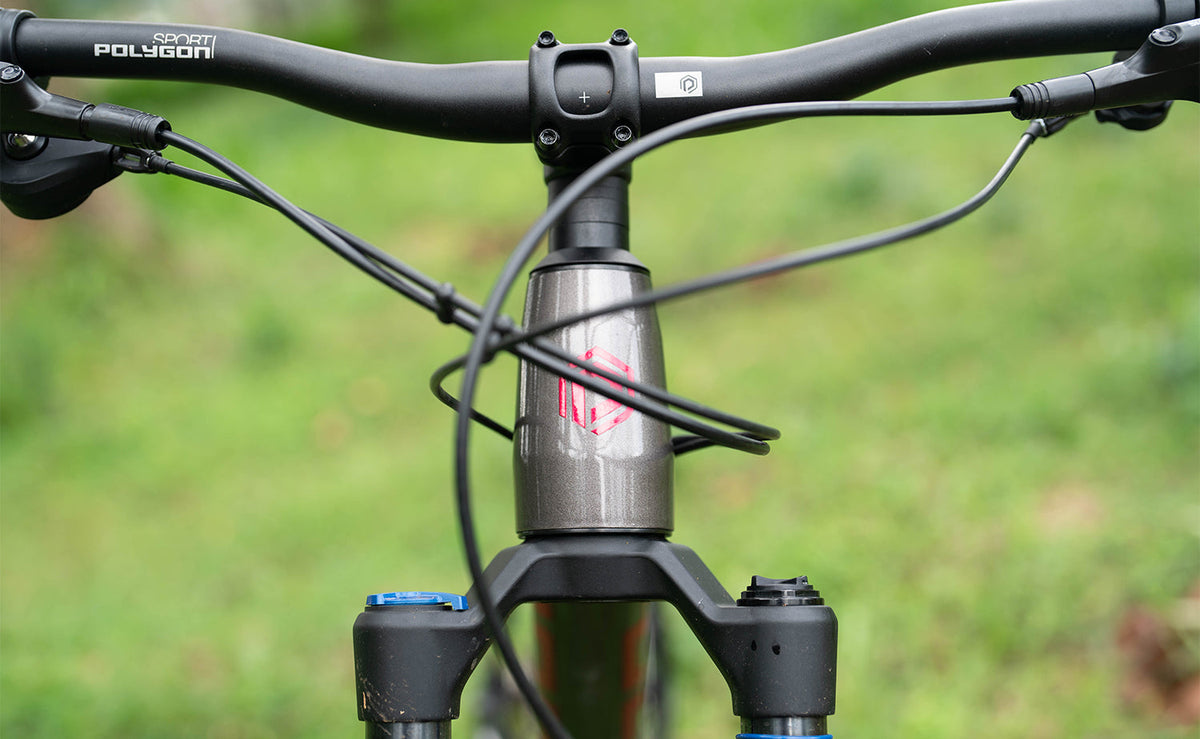

HandlebarPolygon Sport, 760mm Width, 20mm Rise, 9° Bend, 31.8mm Diameter, Alloy
SaddleLinc Void, Steel Rails ø7mm
SeatpostX-Fusion Manic LC Dropper Post, 30.9x350mm, 150mm Travel, Alloy
StemPolygon Sport, 40mm Length, 3° Rise/Drop, Alloy
PedalsPP Pedal
weight
Bike weight34lbs
Geo

  S M L XL
Rider Height 5'1"-5'5" 5'5"-5'9" 5'9"-6'1" 6'1"-6'5"
(A) Stack 620 629 638 647
(B) Reach 410 430 450 470
(C) Head Tube Angle 67° 67° 67° 67°
(D) Head Tube Length 90 100 110 120
(E) Seat Tube Angle 73° 73° 73° 73°
Seat Tube Angle Effective 74° 74° 74° 74°
(F) Seat Tube Length 390 430 450 470
(G) Top Tube Effective 586 609 632 655
(H) Bottom Bracket Height 313 313 313 313
(I) Bottom Bracket Offset 60 60 60 60
(J) Chainstay 432 432 437 437
(K) Wheel Base 1121 1145 1174 1198
(L) Standover Height 725 756 772 788
Fork Travel 120 120 120 120

* All lengths in mm

Build

2024 Polygon Xtrada 7 1x12 Assembly Video

Your bike needs minor assembly before riding; use the tools and videos included.

As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.

Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.

  1. Unboxing Your 2024 Polygon Xtrada 7 1x12

  2. Bike Fit Setup

  3. Tyre Pressure Setup
