ENDURANCE REDEFINED

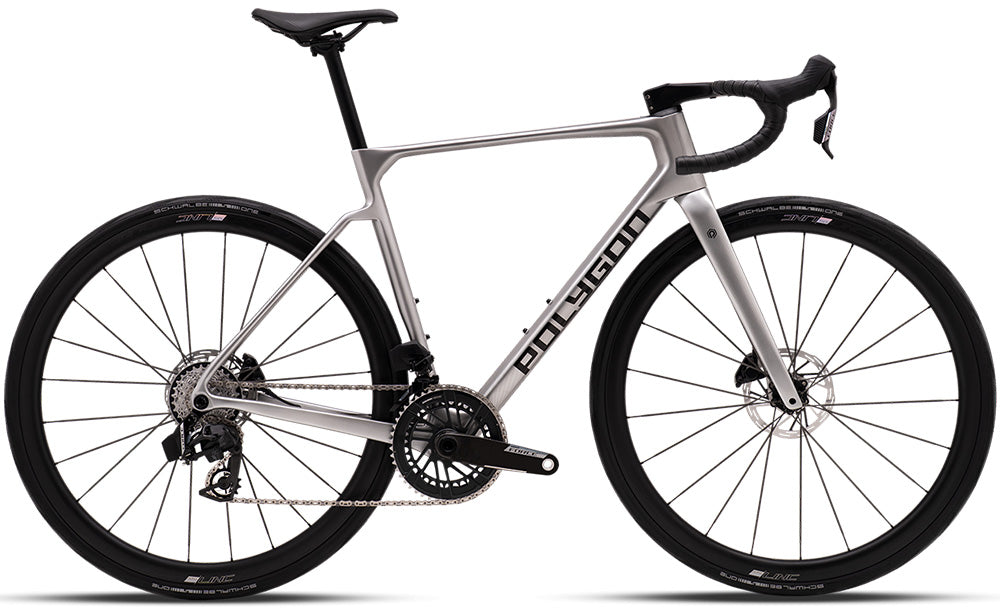

Ride farther, smoother, and stronger with the Strattos C, a Premium Endurance road bike built for long days over chip-seal, patched asphalt, and mixed surfaces. Its ACX carbon frame absorbs road vibration while maintaining lively, responsive pedaling, keeping you fresher for longer rides and confident under acceleration, climbs, and wheel-to-wheel efforts.
RIDER-CENTRIC DESIGN
Endurance-focused geometry balances comfort, stability, and speed. The chassis stays composed on uneven roads, with precise steering through corners. At pace or under load, the bike feels planted and predictable, delivering control, confidence, and engagement on descents, rolling terrain, and sustained efforts.
ALL-ROAD MASTERY
Up to 34 mm tire clearance and tubeless-ready carbon wheels extend your riding beyond smooth pavement. Wider tires at lower pressures boost grip and reduce fatigue, while clean internal routing and an integrated cockpit provide a smooth, distraction-free setup for long rides, mixed-surface training, and year-round cycling.
Specs
| frameset | |
|---|---|
| Frame | ACX All-Round, Carbon, Internal Cable Routing, Integrated Seat Clamp w/ Bolt, 12x142mm Thru Axle, UDH Hanger, Flat-Mount Disc Brake |
| Headset | Integrated (IS) Sealed Bearings, IS 52/28.6 Top | IS 52/40 Bottom |
| suspension | |
| Fork | ACX All-Round, Carbon, Tapered Steerer 1-1/8"–1-1/2", 12x100mm Thru Axle, Flat Mount Disc |
| drivetrain | |
| Rear derailleur | SRAM Force AXS E1 Direct Attach |
| Front derailleur | SRAM Force AXS E1, Braze-On, Down-Pull |
| Shifter | SRAM Force AXS E1, 2×12 Speed |
| Crank | SRAM Force AXS E1, Crank Arm Length: 165 mm (XXS–S) / 170 mm (M–L) / 172.5 mm (XL–XXL) |
| Chainring | 48/35T, Max Chainring: 53/39T |
| Cassette | SRAM Force XG-1270, 12-Speed, 10–36T, XDR |
| Chain | SRAM Force E1 W/ Powerlock, 12-Speed |
| brakes | |
| Front brake | SRAM Force, 2-Piston, Hydraulic Disc |
| Rear brake | SRAM Force, 2-Piston, Hydraulic Disc |
| Rotor | SRAM Paceline, Front/Rear 160mm, Center Lock |
| wheels | |
| Front hub | LINC Alloy Thru Axle 12x100mm, 21H, Sealed Bearings, Center Lock |
| Rear hub | LINC Alloy Thru Axle 12x142mm, 24H, Sealed Bearings, Center Lock |
| Rim | LINC Alpha 35 Carbon Disc, 35 mm Depth, 22mm Internal Width, Tubeless-Ready ** |
| Tyre | Schwalbe One Addix TLE, 700×30mm, Tubeless Ready ** |
| Max tyre size | 700×34 mm |
| contact points | |
| Handlebar | LINC Carbon Integrated, Width: 380 mm (XXS–S) / 400 mm (M–L) / 420 mm (XL–XXL), Reach 75 mm, Drop 125 mm, 10° Bend |
| Saddle | LINC Glyd, CR-MO Rails Ø7mm |
| Seatpost | Polygon Xpert Alloy, 27.2 x 350mm, Integrated Clamp |
| Stem | LINC Carbon Integrated, 90 mm (XXS) / 100 mm (XS–S) / 110 mm (M–L) / 120 mm (XL–XXL) |
| weight | |
| Bike weight | 16.5 lbs ( Size M ) | Frame: 1040g | Fork: 425g | Wheelset: 1340g |
Geo
| Size | XXS | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|---|
| Rider's Height (ft/in) | 5'0"–5'4" | 5'3"–5'6" | 5'5"–5'8" | 5'8"–5'10" | 5'10"–6'1" | 6'0"–6'3" | 6'3"–6'6" |
| Top Tube Effective | 498.4 | 507.2 | 525.1 | 542.4 | 564.3 | 580.97 | 597.61 |
| Reach | 355 | 360 | 369 | 378 | 387 | 396 | 405 |
| Seat Tube Length | 400 | 430 | 470 | 520 | 560 | 580 | 610 |
| Seat Tube Angle | 74.5° | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| Effective Seat Tube Angle | 74.5° | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| Head Tube Angle | 70.5° | 70.5° | 71.5° | 72° | 72° | 72° | 72° |
| Head Tube Length | 100 | 115 | 125 | 136 | 162 | 191 | 217 |
| BB Offset | 76.5 | 76.5 | 76.5 | 74 | 74 | 71.5 | 71.5 |
| Bottom Bracket Height | 268 | 268 | 268 | 270.5 | 270.5 | 273 | 273 |
| Chainstay Length | 415 | 415 | 415 | 415 | 415 | 415 | 415 |
| Wheelbase | 975.1 | 985.1 | 989.3 | 995.2 | 1012.3 | 1030.7 | 1047.84 |
| Frame Stack | 516.9 | 531.1 | 544.3 | 555 | 580 | 605 | 630 |
| Standover Height | 686.1 | 711.4 | 747.4 | 784.5 | 821.7 | 845 | 868.9 |
| Handlebar Width | 380mm | 380mm | 380mm | 400mm | 400mm | 420mm | 420mm |
| Crank Length | 165mm | 165mm | 165mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Stem Length | 90mm | 100mm | 100mm | 110mm | 110mm | 120mm | 120mm |
| Headset Spacer Height | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
* All dimensions are in millimetres (mm) and degrees (°) unless stated otherwise.
Build
2025 Polygon Strattos S7 Disc Assembly Video
Your bike needs minor assembly before riding; use the tools and videos included.
As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.
Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.
