Details
EMPOWER YOUR RIDE

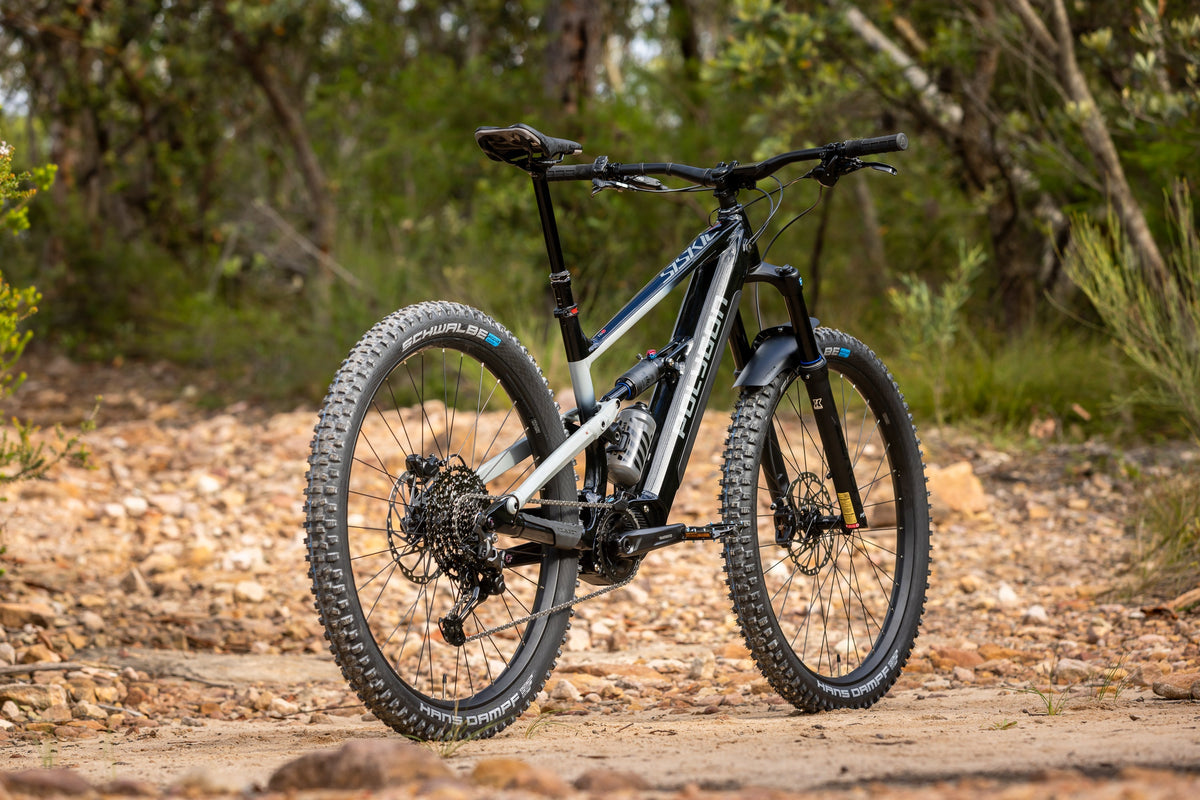

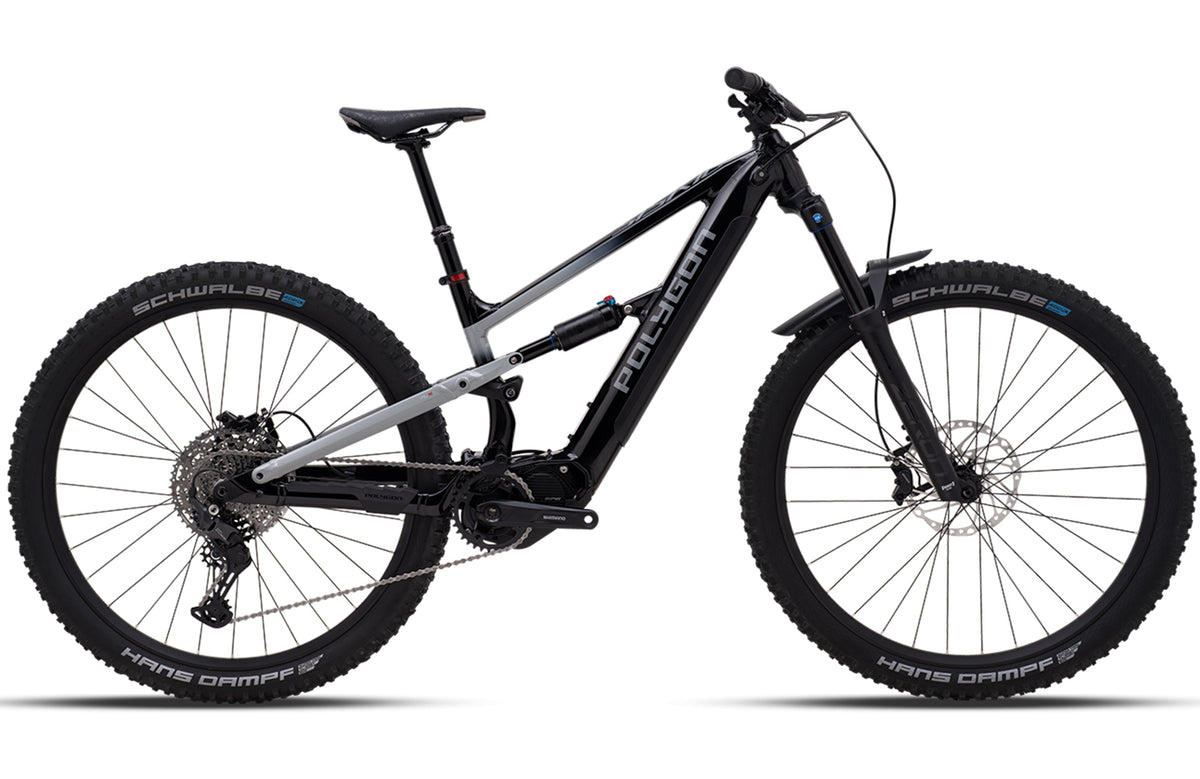

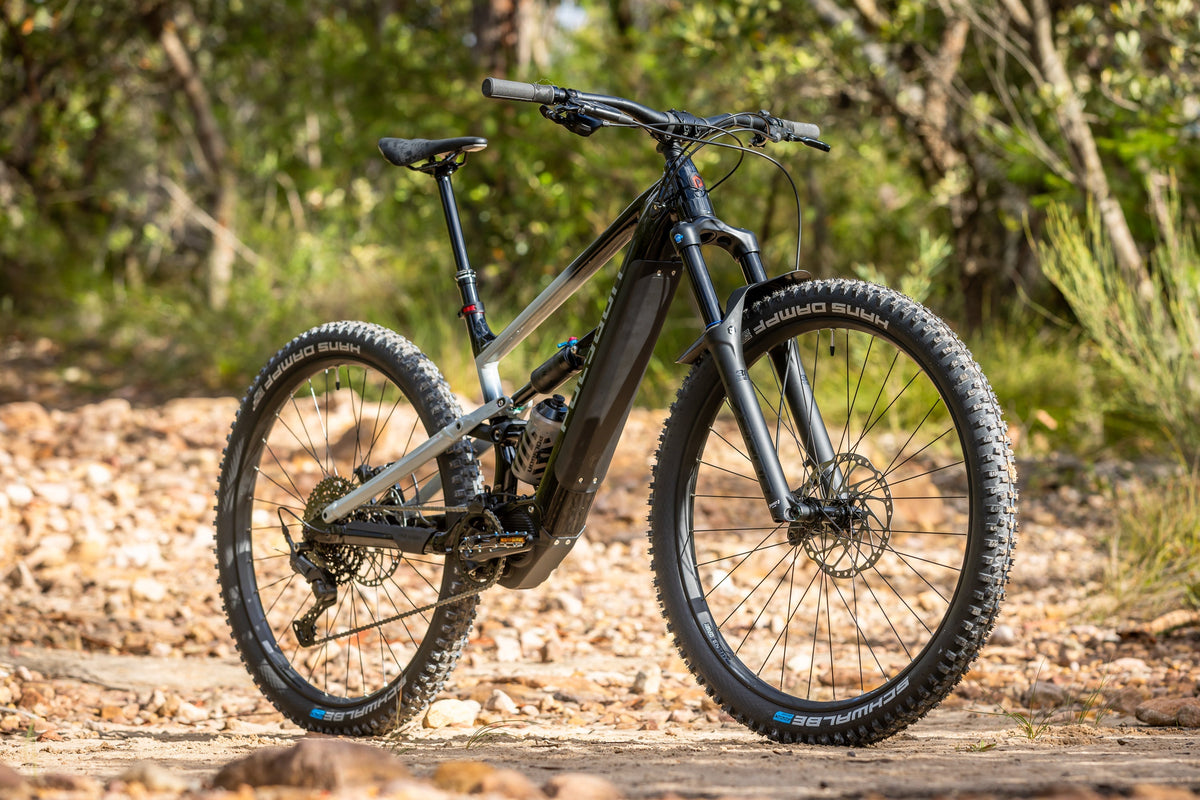

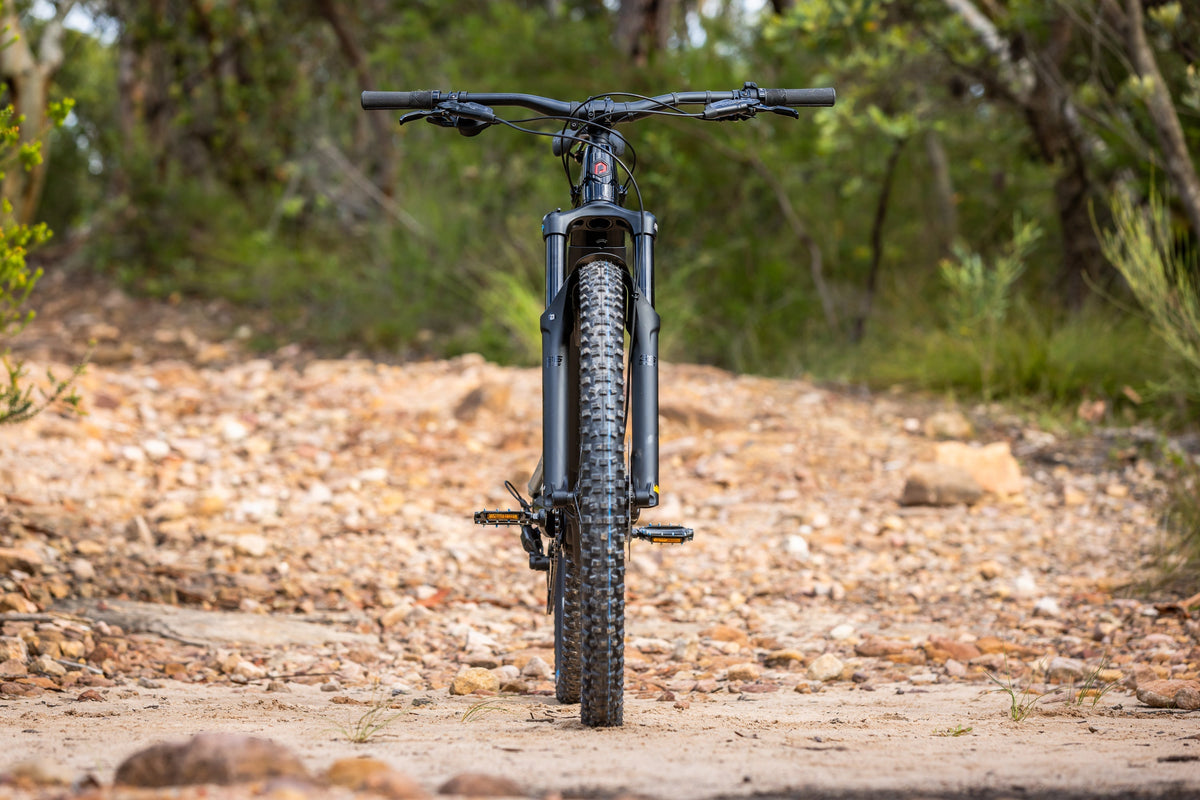

The Siskiu T6E is a 150/140mm full-suspension all-mountain e-bike built for tackling anything from epic adventures to lap after lap of your local trails. Featuring modern geometry, a mullet-compatible design thanks to its built-in flip chip, and a powerful motor, enjoy the freedom to explore and conquer more challenging terrain.

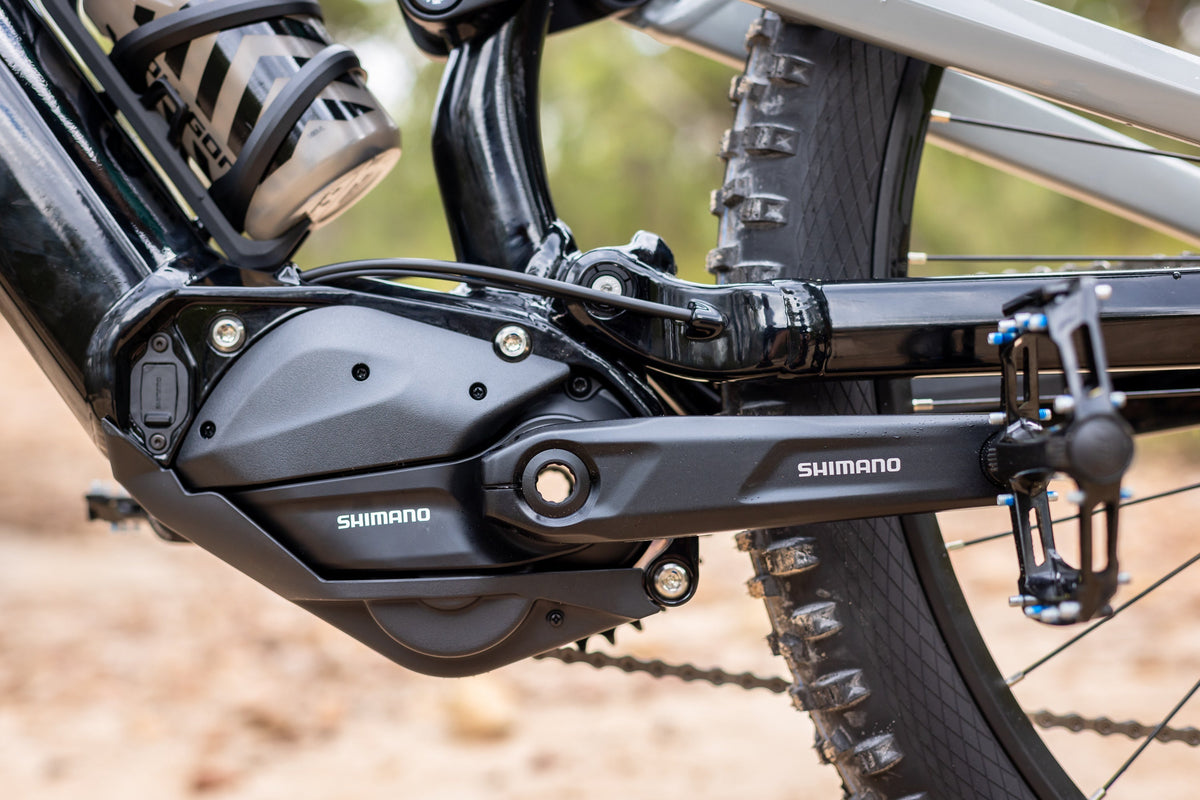

SHIMANO STEPS EP6 / 504Wh
The Shimano EP6 motor takes everything we love about the top-of-the-line EP801 at a slight weight penalty. So that means you still get 85nm of intuitive and efficient power you need to tackle steep climbs. Combined with a dropper post, 4 piston brakes, and 504Wh battery you will be able to hit your favourite trails with confidence!
A TRUSTED BRAND
Polygon is a factory-direct brand with over 30 years of experience crafting high-performance bikes at competitive prices. Vertically integrated manufacturing ensures quality and cost savings. Their mountain bikes have been tested on the world stage at events like Redbull Rampage and the World Cup circuit, boasting a 5-year frame warranty for peace of mind.
INDUSTRY REVIEWS
"Polygon's 2024 range has been knocking it out of the park on value and handling - and the Siskiu T6E trail e-bike is no different." - AMB
Specs
| frameset | |
|---|---|

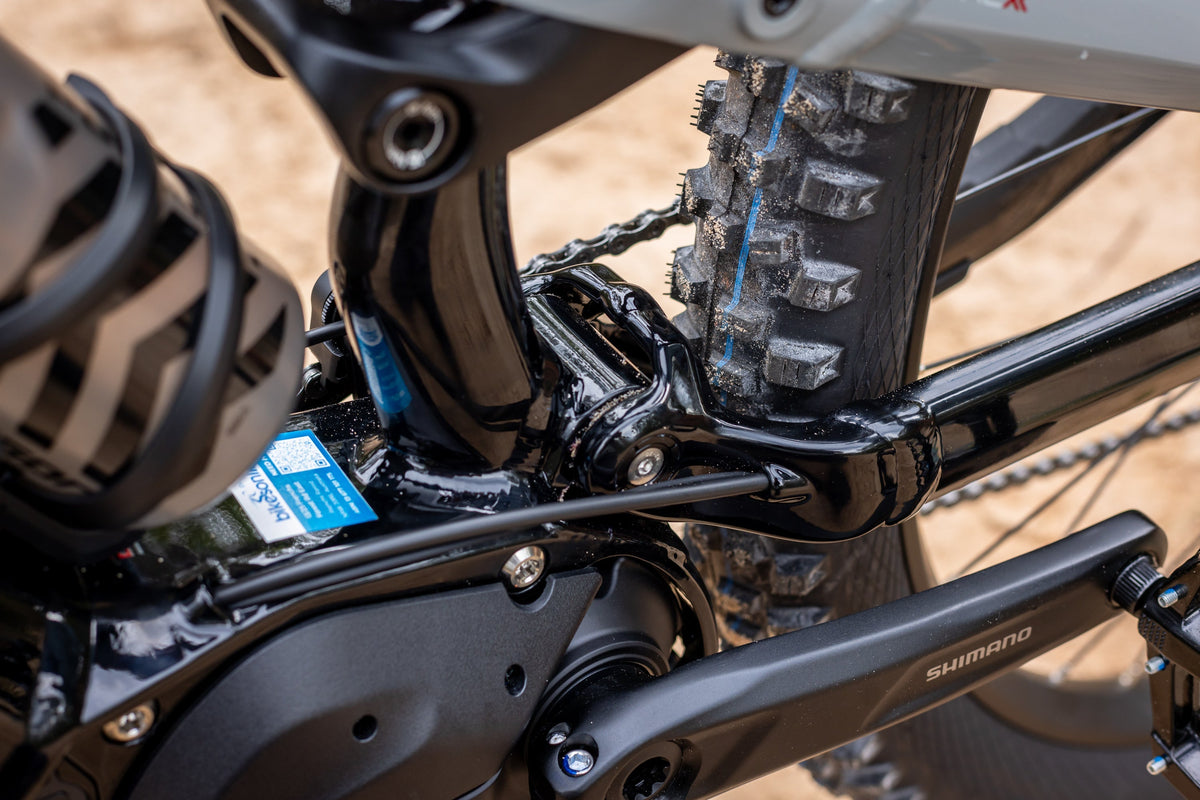

| Frame | ALX Trail Frame, One Piece Linkage Suspension Platform 140mm Travel, Dropper Post And Rear Derailleur Routing, Direct Post-Mount Disc Brake, 148x12mm Boost Thru-Axle, 73mm Threaded BB, ISCG 05 Tabs |
| suspension | |

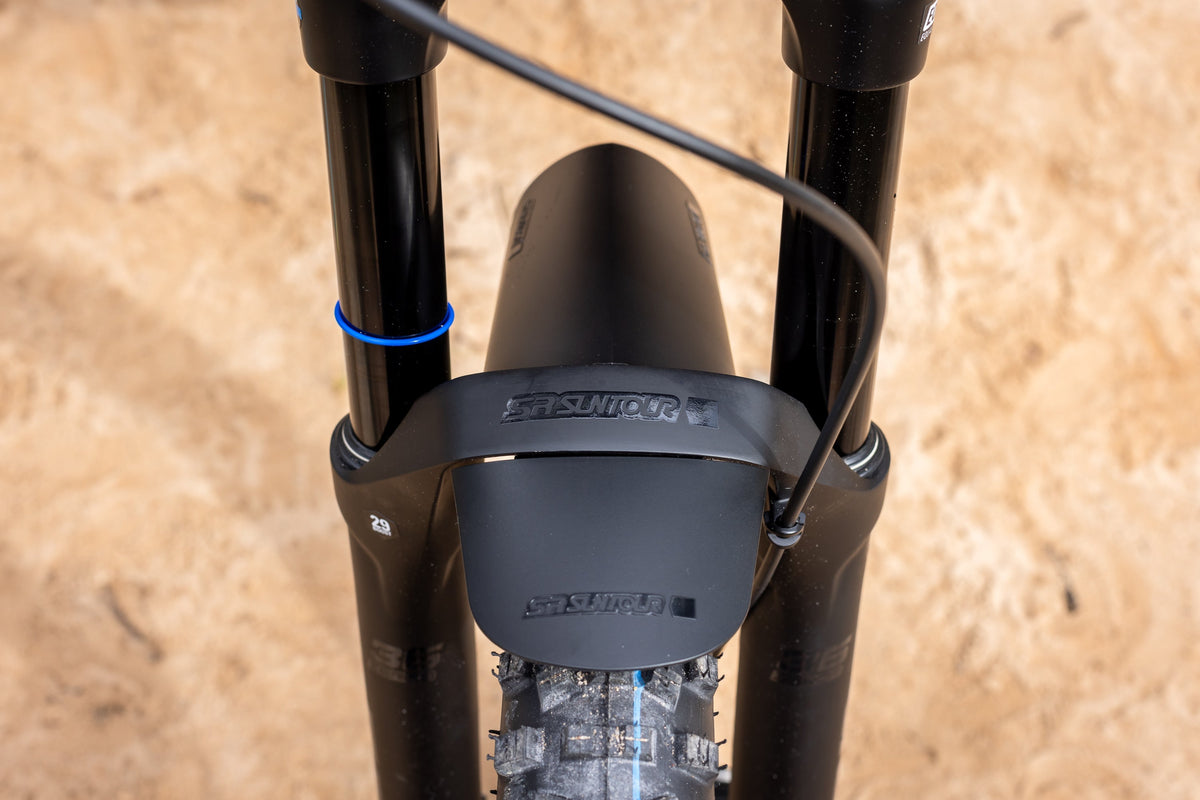

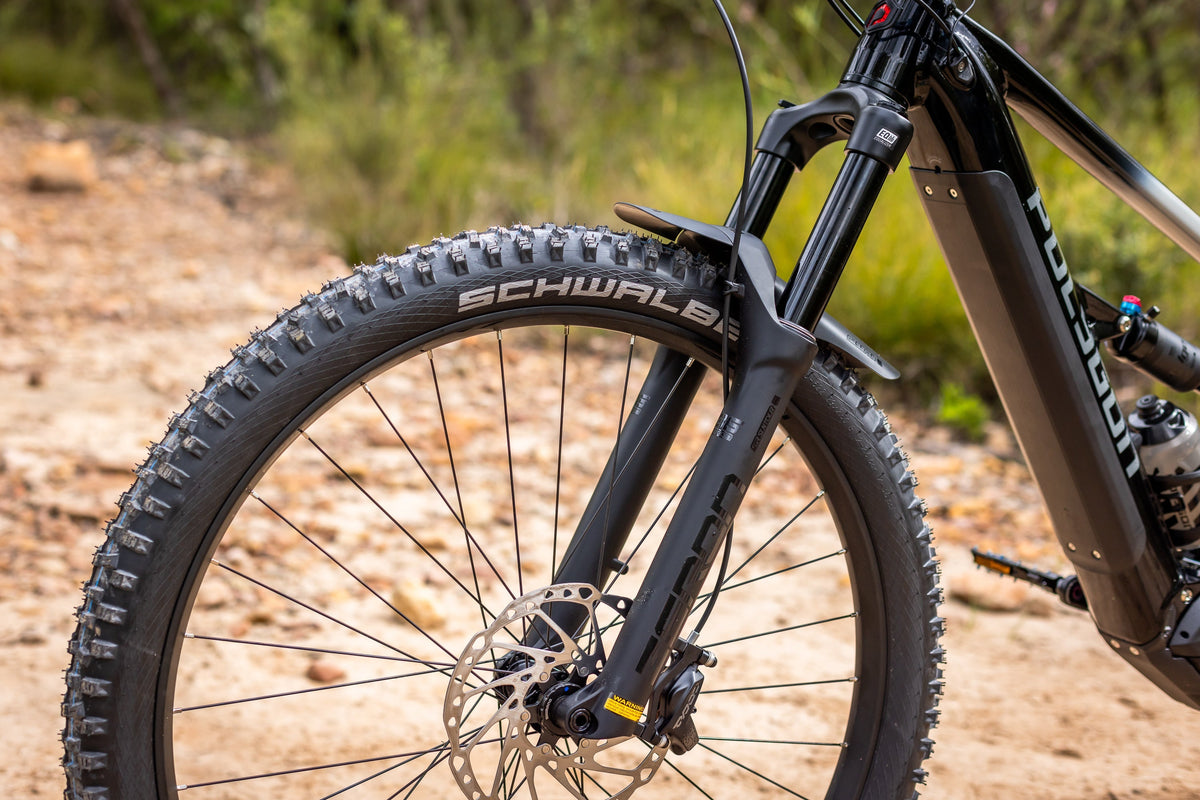

| Fork | SR Suntour Zeron 35 Boost LO-R, 150mm Travel, 110x15mm Boost Thru-Axle, 51mm offset |

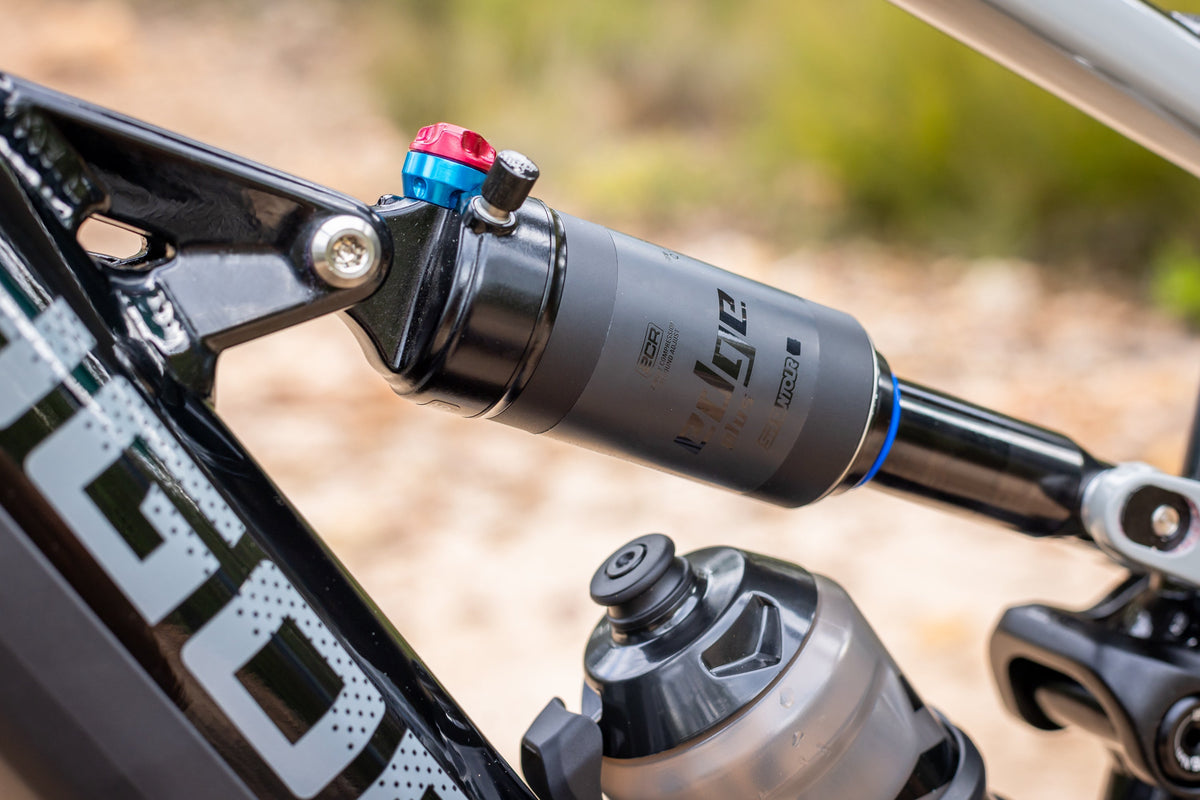

| Shock | SR Suntour Edge Plus RC, 210x55mm Open Eyelet, Air, 2-Position Adjustment |

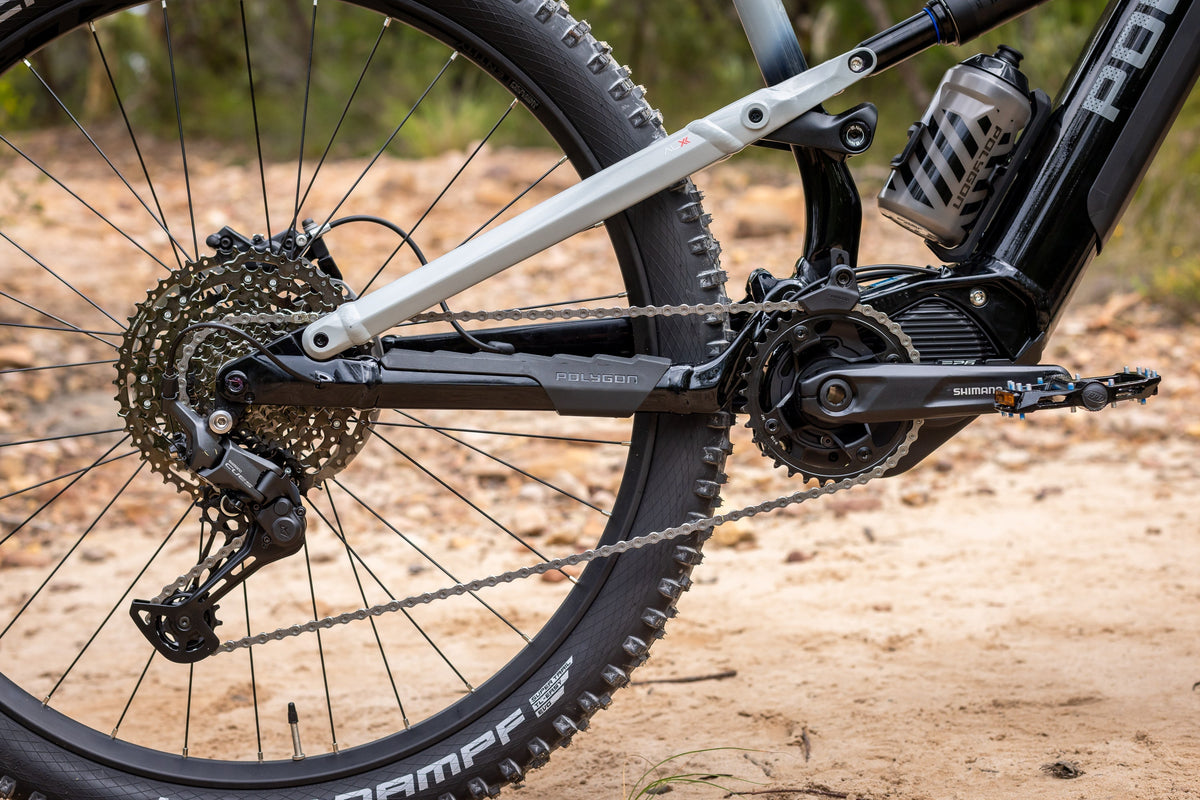

| drivetrain | |
| Rear derailleur | Shimano CUES RD-U6000-GS, 11-speed |

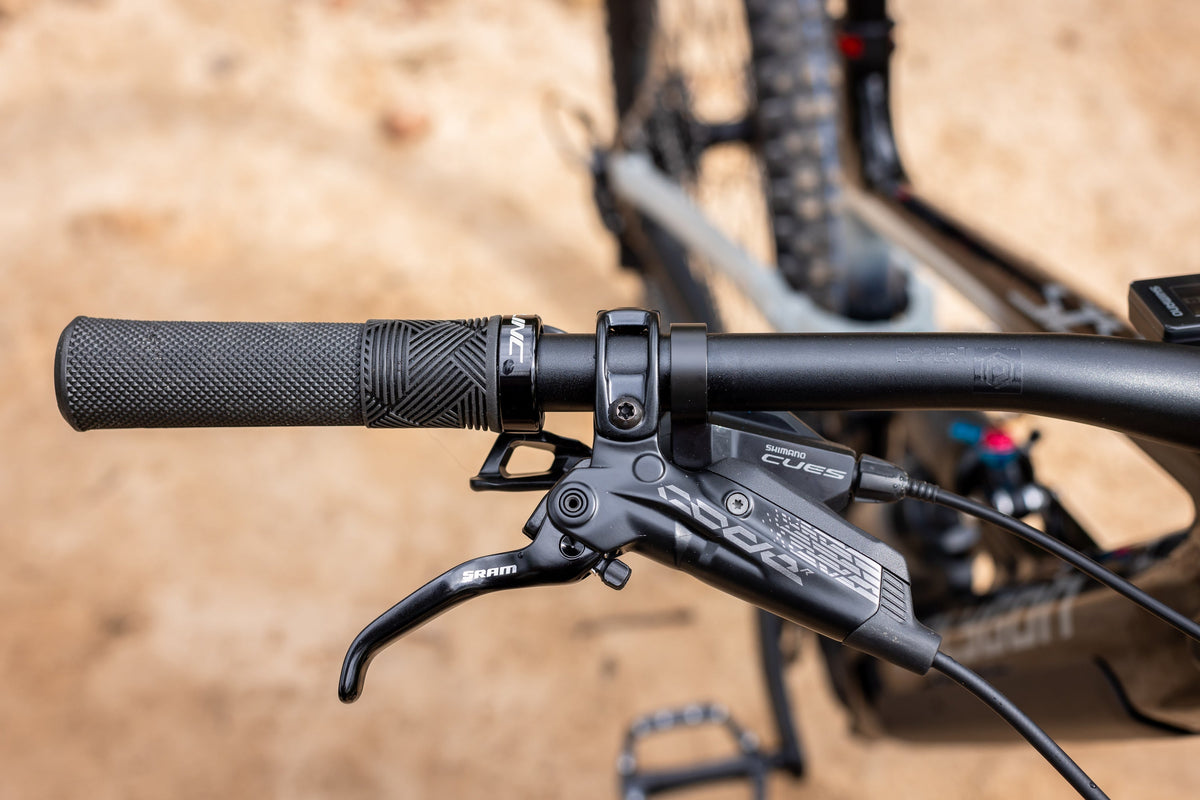

| Shifter | Shimano CUES SL-U6100-11R, 1x11-Speed Trigger |
| Crank | Shimano SM-CRE70-B, 34T, 160mm |
| Cassette | Shimano CUES CS-M4100, 11-Speed, 11-50T |
| Chain | KMC Eglide, 11-Speed |
| e system | |
| Battery | Shimano STEPS BT-EN805-L, Integrated, 504Wh Capacity |
| Motor | Shimano STEPS DU-EP600, 85Nm Maximum Torque, 250W Continuous Power |
| Display | Shimano STEPS SC-EN600, 1.4” LCD Screen, Customizable data dashboards |
| Range | 30-100km (Based on rider weight, terrain, climate and level of assist used) |
| Charging time | 3 hours to 80%, 5 hours to 100% |
| Charger | Shimano EC-E6002 |
| Switch | Shimano STEPS SW-EN600-L, Left Hand Switch for Assist Mode Change |
| brakes | |
| Front brake | Shimano BR-MT420, 4-Piston |
| Rear brake | Shimano BR-MT420, 4-Piston |
| Rotor | Shimano F: SM-RT64, 203mm / R: RT-EM600 w/ Speed Sensor, 203mm |
| wheels | |
| Front hub | Shimano HB-MT400-B, 15mm Thru-Axle, 110mm spacing |
| Rear hub | Shimano FH-MT400-B, Freehub, 12mm Thru-Axle, 148mm spacing |
| Rim | Entity XL3, Alloy Double Wall, 35mm Inner, 32H, Tubeless ready |
| Tyre | Schwalbe Hans Dampf EVO, 29x2.6”, Super Trail TLE Addix Speed Grip, Tubeless Ready |
| Max tyre size | 2.6” |
| contact points | |

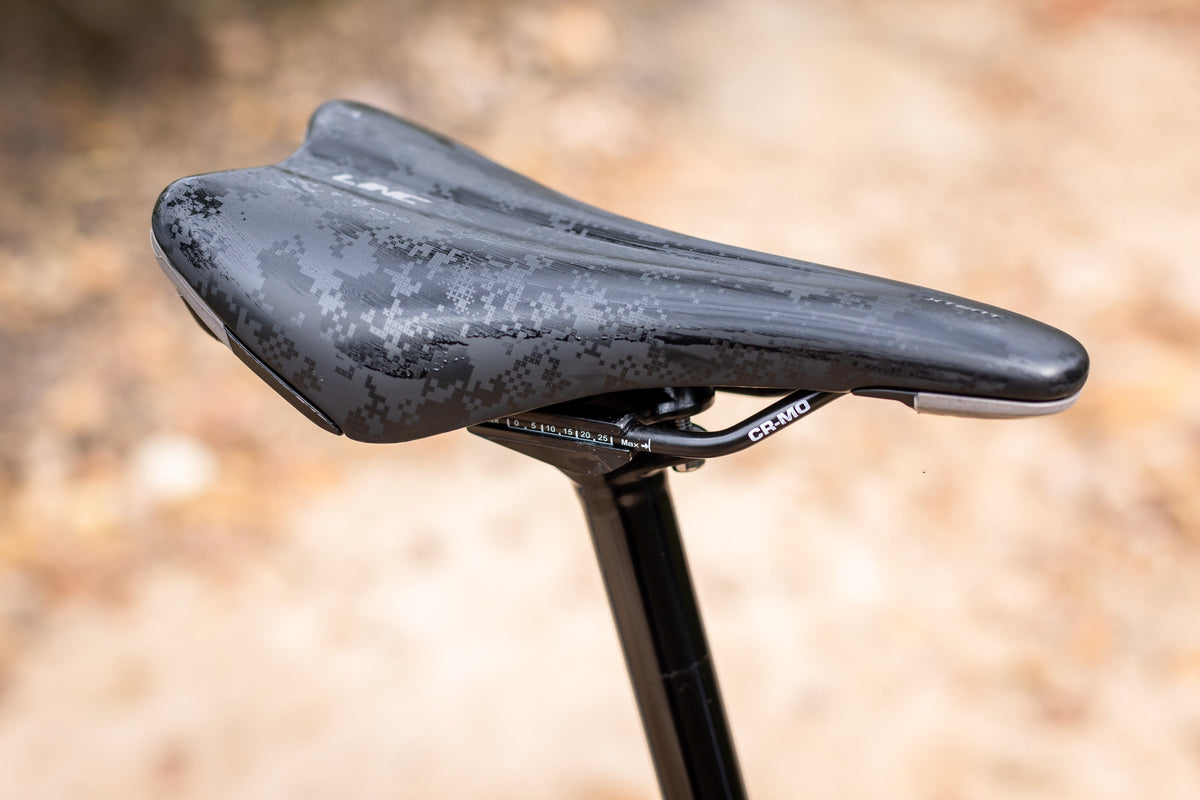

| Saddle | Entity Xtend |
| Seatpost | TranzX JD-YSP23JL, 1x Remote, 30.9mm, 150mm (S-M), 170mm (L-XL) |
| Handlebar | Entity Expert, 35mm Clamp, 780mm Width, 25mm Rise, 9° Bend |
| Stem | Entity Expert, 35mm Length |
| Pedals | Included |
| weight | |
| Bike weight | 52.5 lbs (Size L) |
Geo
| S | M | L | XL | |
| Rider Height | 5'2" - 5'6" | 5'6" - 5'10" | 5'10" - 6'1" | 6'1" - 6'5" |
| (B) Seat tube angle | 71.7 | 71.7 | 71.7 | 71.7 |
| (C) Effective seat tube angle | 77 | 77 | 77 | 77 |
| (D) Head tube length | 95 | 95 | 105 | 120 |
| (E) Head tube angle | 65 | 65 | 65 | 65 |
| (F) Effective top tube | 588 | 608 | 630 | 653 |
| (G) BB Height | 337 | 337 | 337 | 337 |
| (H) BB offset | 39 (drop) | 39 (drop) | 39 (drop) | 39 (drop) |
| (I) Chainstay length | 445 | 445 | 445 | 445 |
| (J) Wheelbase | 1205 | 1225 | 1249 | 1275 |
| (K) Frame reach | 445 | 465 | 485 | 505 |
| (L) Frame stack | 618 | 618 | 627 | 641 |
| (M) Standover height | 677 | 683 | 706 | 720 |
| S | M | L | XL | |
| (A) Seat tube length | 390 | 400 | 430 | 450 |
| (B) Seat tube angle | 72.6 | 72.6 | 72.6 | 72.5 |
| (C) Effective seat tube angle | 77.9 | 77.9 | 77.9 | 77.8 |
| (D) Head tube length | 95 | 95 | 105 | 120 |
| (E) Head tube angle | 65.9 | 65.9 | 65.9 | 65.8 |
| (F) Effective top tube | 586 | 606 | 628 | 651 |
| (G) BB Height | 349 | 349 | 349 | 349 |
| (H) BB offset | 27 (drop) | 27 (drop) | 27 (drop) | 27 (drop) |
| (I) Chainstay length | 442 | 442 | 442 | 442 |
| (J) Wheelbase | 1203 | 1223 | 1247 | 1274 |
| (K) Frame reach | 454 | 474 | 494 | 514 |
| (L) Frame stack | 611 | 611 | 620 | 634 |
| (M) Standover height | 689 | 695 | 718 | 732 |
Build
2024 Polygon Siskiu T6E - Trail eBike Assembly
Your bike needs minor assembly before riding; use the tools and videos included.
As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.
Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.
Please follow the video playlist below to complete the setup of your new bike correctly.
Unboxing Your 2024 Polygon Siskiu T6E
Dial In Your Suspension Setup
Dial In Your Bike Fit
Dial In Your Tyre Pressures
Pre-Ride Check
