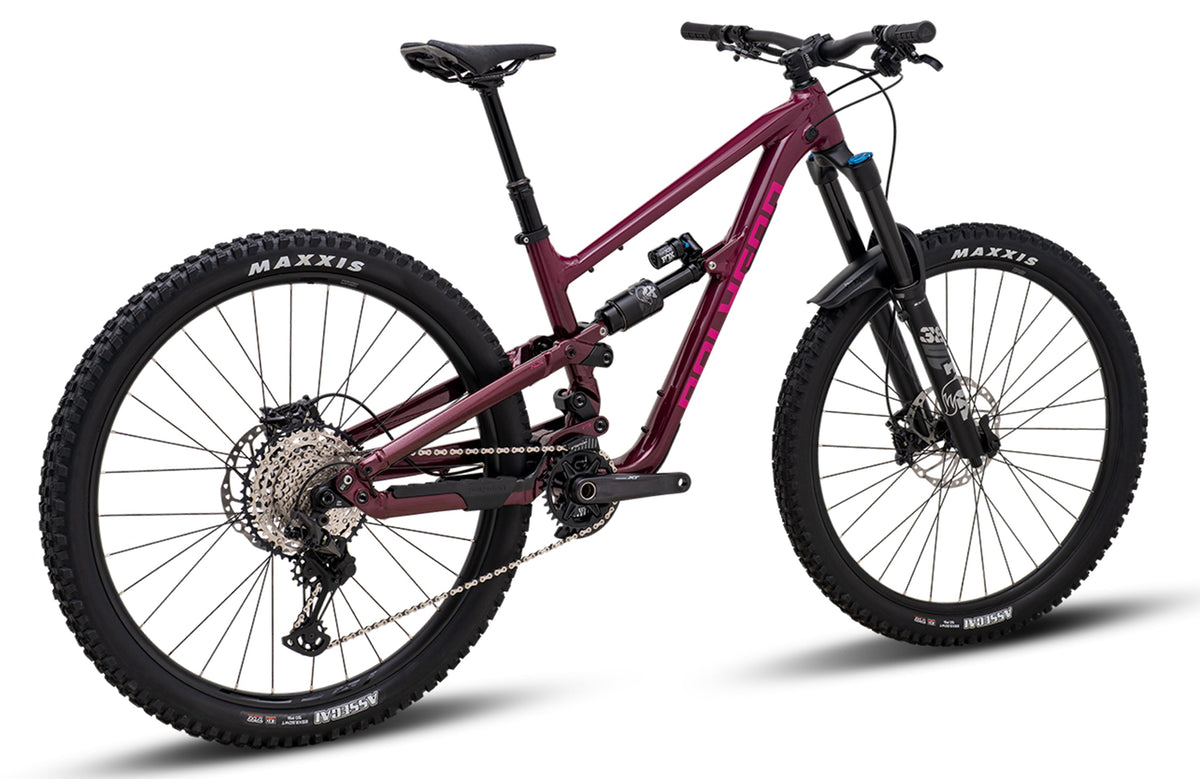

Polygon Collosus N9 - Enduro Mountain Bike [New] - full suspension mountain bike
Polygon Collosus N9 - Enduro Mountain Bike [New] - full suspension mountain bikes product image 2
Polygon Collosus N9 - Enduro Mountain Bike [New] - dual suspension mountain bike product image 3
Polygon Collosus N9 - Enduro Mountain Bike [New] - full suspension mountain bike product image 4
Polygon Collosus N9 - Enduro Mountain Bike [New] - full suspension mountain bikes product image 5
Polygon Collosus N9 - Enduro Mountain Bike [New] - dual suspension mountain bike product image 6
Polygon Collosus N9 - Enduro Mountain Bike [New] - full suspension mountain bike product image 7
Polygon Collosus N9 - Enduro Mountain Bike [New] - full suspension mountain bikes product image 8
Polygon Collosus N9 - Enduro Mountain Bike [New] - dual suspension mountain bike product image 9
Polygon Collosus N9 - Enduro Mountain Bike [New] - full suspension mountain bike product image 10
Polygon Collosus N9 - Enduro Mountain Bike [New] - full suspension mountain bikes product image 11
Polygon Collosus N9 - Enduro Mountain Bike [New] - dual suspension mountain bike product image 12
Polygon Collosus N9 - Enduro Mountain Bike [New] - full suspension mountain bike product image 13
Polygon Collosus N9 - Enduro Mountain Bike [New] - full suspension mountain bikes product image 14
Polygon Collosus N9 - Enduro Mountain Bike [New] - dual suspension mountain bike product image 15
Polygon Collosus N9 - Enduro Mountain Bike [New] - full suspension mountain bike product image 16
Polygon Collosus N9 - Enduro Mountain Bike [New] - full suspension mountain bikes product image 17

Details

ENDURO BEAST

ENDURO BEAST

The new Collosus N blends race-proven performance with enduro-ready versatility. Developed with input from the EDR World Cup and Polygon Factory Racing, it’s built to tackle everything - gnarly trails, big hits, and steep climbs. With 170mm of suspension and 29" wheels, it’s the perfect bike for riders who demand it all.

TWEAKED & TUNED

TWEAKED & TUNED

The updated frame now has UDH compatibility, a stiffer rear end with adjustable bolt-on dropouts to handle mixed wheel sizes. A reengineered lower link fine-tunes the flex to where it needs to be, while the new metric shock allows for more shock options and better stability through the system for increased performance. Plus, a beefier 34.9mm dropper post for enhanced durability and customization.

IFS LINKAGE DESIGN

IFS LINKAGE DESIGN

Independent Floating Suspension (IFS) system provides unparalleled control and responsiveness. By independently controlling wheel path, anti-squat, and leverage curve, the IFS system delivers both plush small-bump sensitivity, efficient pedaling, and progressive bottom-out resistance.

FOX 38 FLOAT PERFORMANCE
FOX 38 FLOAT PERFORMANCE Engineered for aggressive enduro riding, the FOX 38 FLOAT Performance delivers stiff, confident front-end support. With its GRIP damper and beefy 38mm stanchions, it stays planted through chunky rock gardens and steep chutes—keeping the ride smooth, precise, and in control at speed.
FOX FLOAT X2 REAR SHOCK
FOX FLOAT X2 REAR SHOCK The Float X2 is built for high-speed hits and big terrain. Combining the plushness of a coil with the lightweight efficiency of an air spring, it delivers incredible damping and endless tunability—giving riders a dialed-in feel no matter how rough or fast the trail gets.
SHIMANO XT 4-PISTON BRAKES
SHIMANO XT 4-PISTON BRAKES Confident braking starts here. The Shimano XT 4-piston calipers deliver strong, consistent power with refined modulation—perfect for technical descents and fast-paced enduro lines where control is everything.
RACE FACE AEFFECT 35 COCKPIT
RACE FACE AEFFECT 35 COCKPIT Designed for durability and precision, the Race Face Aeffect 35 handlebar offers a stiff, responsive platform for aggressive riding. Its 35mm diameter boosts strength and control on rugged trails, giving riders the confidence to charge harder through demanding terrain.
MAXXIS ASSEGAI TIRES
MAXXIS ASSEGAI TIRES An aggressive, grippy, and incredibly predictable tire that thrives on everything from loose dust to slick roots. Its standout feature is the edge-to-edge control—those small knobs between the center and side lugs deliver smooth, consistent grip through corners, giving you confidence when things get rowdy.
Any questions? Chat to our friendly team
Specs
frameset
FrameALX Enduro Frame, 29", Updated IFS Suspension, 170mm Travel, Internal Dropper & Derailleur Routing, Chainstay Mounted Disc Brake, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs, Reinforced Lower Link, Flip Chip for Geometry Adjustment, UDH-Compatible Dropouts
HeadsetFSA NO.57E W/ Sealed Bearing ZS 44/28.6 | ZS 56/40
suspension
ForkFox 38 Performance, 170mm, 110x15mm Boost, 44mm offset w/ Fender
ShockFox Float X2, 230x65mm, Air Spring, 2-Position Adjustment
drivetrain
Rear derailleurShimano XT RD-M8100, 12-Speed
ShifterShimano XT SL-M8100, 12-Speed
CrankShimano XT FC-M8100-1, 170mm, Max Chainring: 34T
Chainring32T
CassetteShimano SLX CS-M7100, 12-Speed, 10-51T, Microspline
ChainKMC X12
brakes
Front brakeShimano XT M8120 4-Piston Hydraulic Brakes
Rear brakeShimano XT M8120 4-Piston Hydraulic Brakes
RotorShimano SM-RT64, 203mm
wheels
Front hubShimano XT HB-M8110-B Boost 15x110mm, 32H, CL
Rear hubShimano XT FH-M8110-B Boost, 12x148mm, 32H, CL, Microspline
RimPolygon MT6 Alloy Double Wall, 30mm Inner Width, Tubeless Ready **
TyreMaxxis Assegai 29x2.5", Dual Compound, EXO, Tubeless Ready **
Max tyre size29x2.6"
contact points
HandlebarRaceface Aeffect R35, Length: 780mm, Rise: 20mm, Bar Bore: 35mm
SaddleXtent, Cr-MO ø 7mm
SeatpostTranz X JD-YSP23KL, 34.9mm, 150mm (S, M) / 170mm (L, XL)
StemRaceface Aeffect R35, Length: 40mm, Bar Bore: 35mm
PedalsAlloy Flat w/ Replaceable Pin
weight
Bike weight39.2 lbs (Size L)
accessories
Fender mudguardFender for Fox 38
Geo

Frame Size S M L XL
Rider height 5'2" - 5'6" 5'6" - 5'10" 5'10" - 6'1"  6'1" - 6'5"
(A) Frame Stack (mm) 625.5 630 635 643
(B) Frame Reach (mm) 440 460 480 500
(C) Head Tube Angle (°) 63.5 63.5 63.5 63.5
(D) Head Tube Length (mm) 100 105 110 120
(E) Effective Top Tube (mm) 584 605 626 648
(F) Seat Tube Angle (°) 70 70 70 70
(G) Effective Seat Tube Angle (°) 77 77 77 77
(H) Seat Tube Length (mm) 390 400 415 430
(I) Chainstay Length (mm) 435 435 435 435
(J) Wheelbase (mm) 1222 1244 1266 1291
(K) Bottom Bracket Height (mm) 353 353 353 353
(L) Bottom Bracket Drop (mm) 27 27 27 27
(M) Standover Height (mm) 710 716 717 720
Build

Polygon Collosus N9

Your bike needs minor assembly before riding; use the tools and videos included.

As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.

Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.

Please follow the video playlist below to complete the setup of your new bike correctly.

  1. Unboxing Your Polygon Colossus N9

  2. Dial In Your Bike Fit

  3. Dial In Your Suspension Setup

  4. Tyre Pressure Setup

  5. Pre-Ride Check
