Details
START THEM STRONG

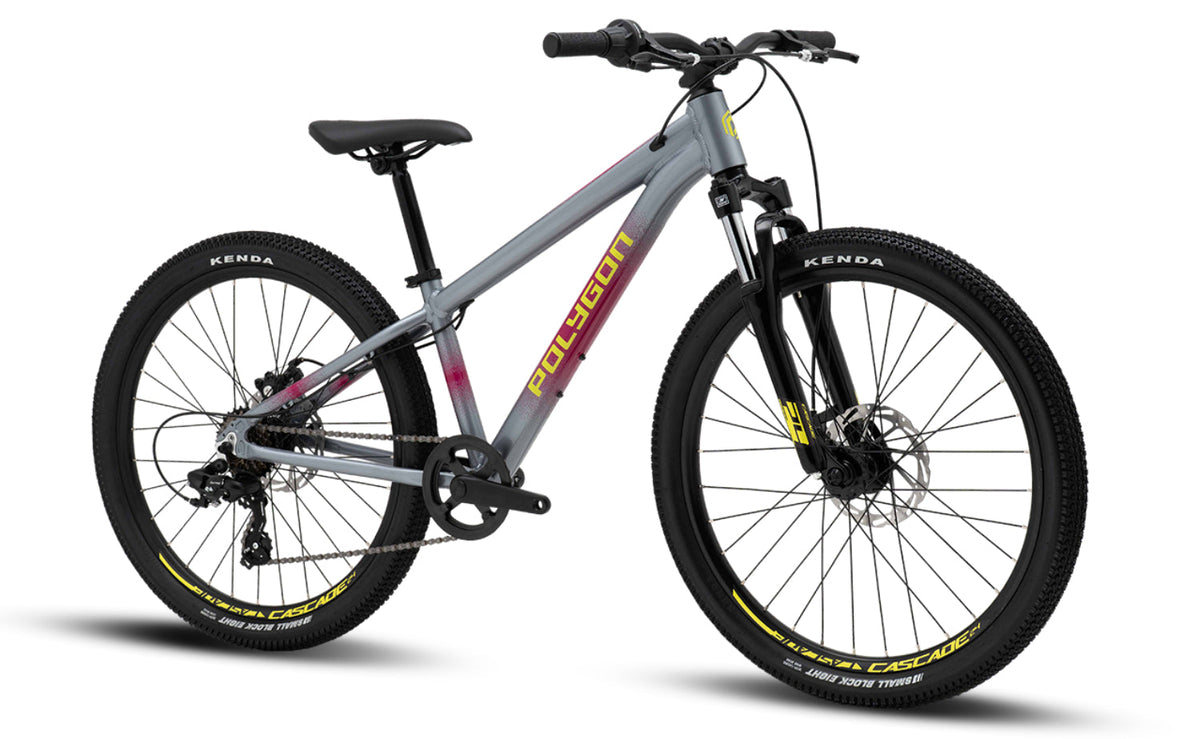

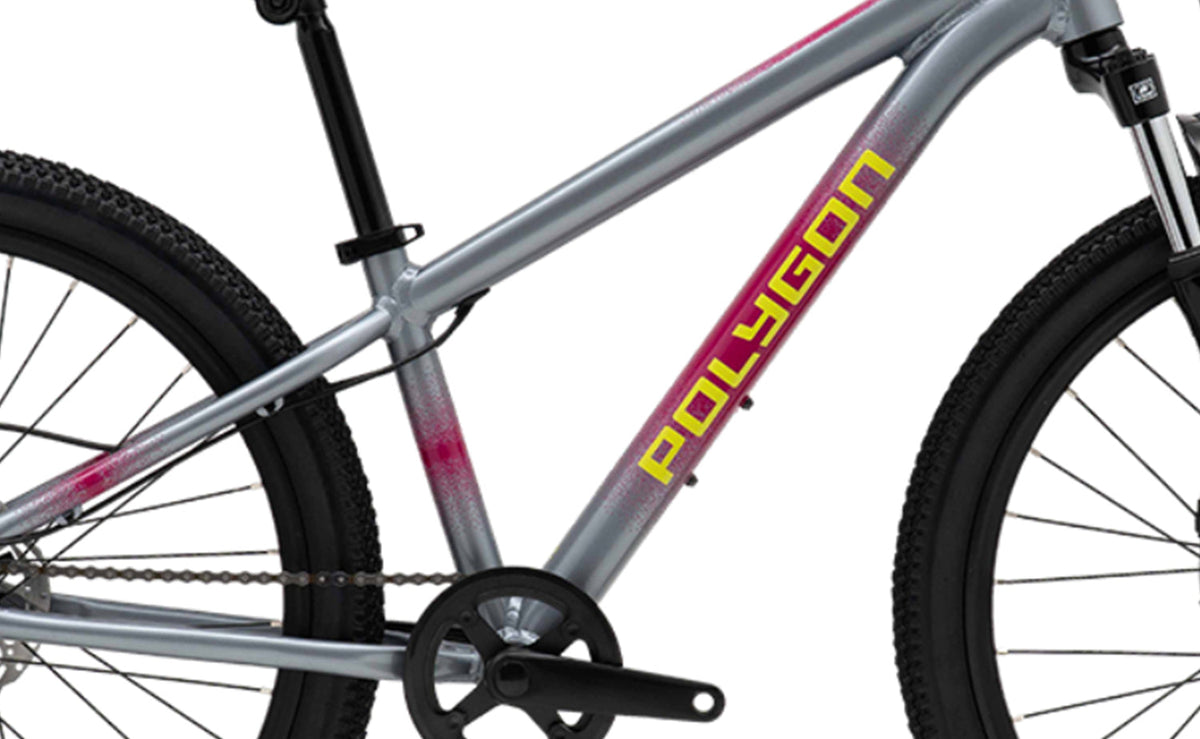

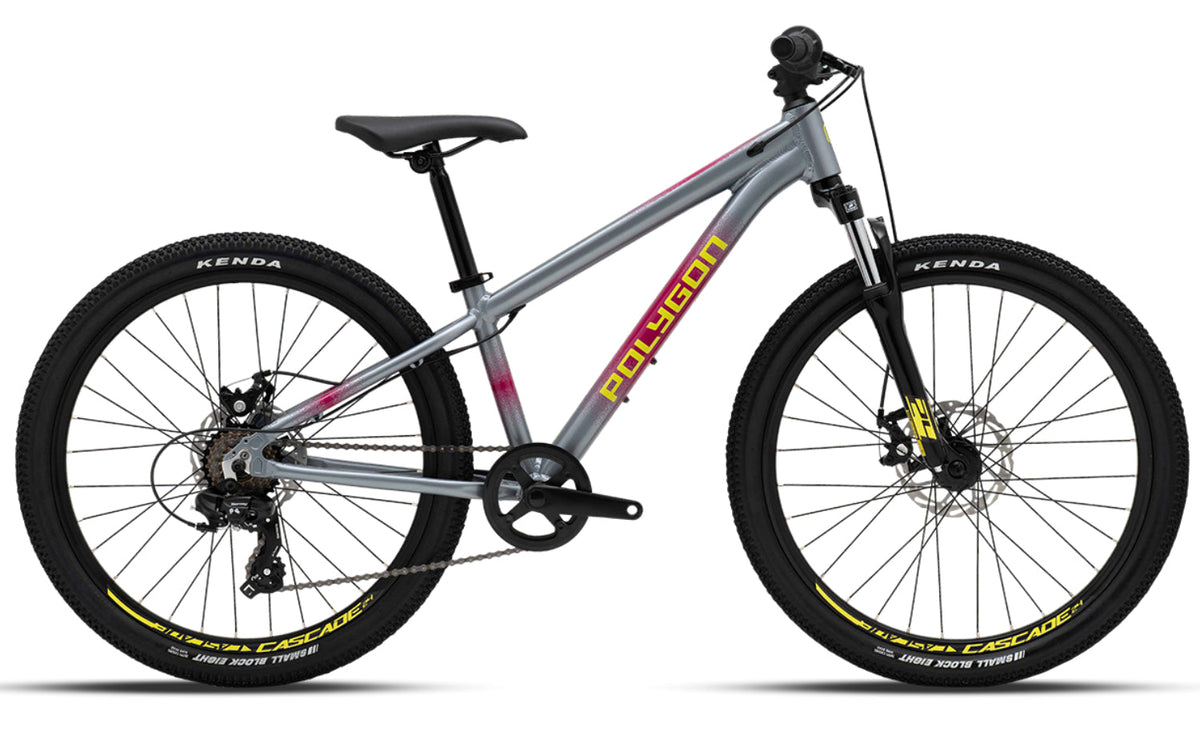

Built for growing riders ready for more adventure, the Cascade 24 delivers a confident and capable entry into trail riding. Its AL6 aluminum frame and balanced geometry provide stability, control, and comfort on longer rides and rougher paths.
SMOOTH OVER EVERY BUMP
A 50mm coil suspension fork absorbs bumps and uneven surfaces with ease, giving extra comfort and stability on trails and gravel. It helps riders stay in control when the terrain gets rougher or faster.
SIMPLE, RELIABLE CONTROL
A 1x7 Shimano Tourney drivetrain keeps gear changes simple and predictable, while Tektro mechanical disc brakes provide strong, reliable stopping power. Double wall wheels and durable tires complete a setup built for confidence and progression.
Specs
| frameset | |
|---|---|
| Frame | AL6 Rigid Frame, Internal Brake Routing, Threaded BSA 68mm Bottom Bracket, Disc Brake IS Mount 160mm, Kickstand Mount (Bolt-On Center Chainstay), 135mm Rear Dropout (QR) |
| Headset | Zero Stack, Caged Bearing, ZS 44/28.6 | ZS 44/30 |
| suspension | |
| Fork | Suspension Fork, 50mm Travel, Alloy Crown & Lower, Soft Coil Spring, Straight 1-1/8" Threadless Steerer, Disc Brake Post Mount 160mm, QR 9x100mm |
| drivetrain | |
| Rear derailleur | Shimano Tourney RD-TY200, 7-Speed |
| Shifter | Shimano Tourney SL-RV400 Revo Shifter, 1x7-Speed |
| Crank | Alloy Crankset, 127mm Crank Arm Length, Square Taper Interface |
| Chainring | 32T, Steel |
| Cassette | 7-Speed Freewheel, 14–28T |
| Chain | Meile M70 |
| brakes | |
| Front brake | Tektro M280 Mechanical Disc Brake, Tektro TS-325A 3-Finger Brake Levers |
| Rear brake | Tektro M280 Mechanical Disc Brake, Tektro TS-325A 3-Finger Brake Levers |
| Rotor | Tektro TR160-52, 160mm (Front & Rear) |
| wheels | |
| Front hub | Alloy, M9x100mm, 32H, QR |
| Rear hub | Alloy, M10x135mm, 32H, QR |
| Rim | 24" Alloy Double Wall, 20mm Height, 21mm Internal Width, 32H |
| Tyre | Kenda K1047, 24 x 2.1" |
| Max tyre size | 24 x 2.1" |
| contact points | |
| Handlebar | Steel Handlebar, 640mm Width, 25.4mm Clamp, 7° Rise, 6° Backsweep |
| Grips | Standard Rubber Grips |
| Saddle | Youth Saddle, Steel Rail 7mm |
| Seatpost | Steel Seatpost, 27.2x300mm |
| Stem | Alloy Stem, 40mm Length, 25.4mm Clamp |
| Pedals | One-Piece PP Body |
| weight | |
| Bike weight | 28.2 lbs |
| accessories | |
| Kick stand | Included |
Geo
| Riders Height | 4'1" to 4'11" |
| (A) Stack | 563 |
| (B) Reach | 345 |
| (C) Head Tube Angle | 70 |
| (D) Head Tube Length | 100 |
| (E) Seat Tube Angle | 72 |
| Seat Tube Angle Effective | 72 |
| (F) Seat Tube Length | 305 |
| (G) Top Tube Effective | 528 |
| (H) Bottom Bracket Height | 235 |
| (I) Bottom Bracket Offset | -81 |
| (J) Chainstay | 430 |
| (K) Wheel Base | 985 |
| (L) Standover Height | 551 |
| Crank Arm Length | 127 |
| Hbar Width | 640 |
| Stem Length | 40 |
* All lengths in mm
** Realistic standover height measured at 3 o'clock pedal position
Build
Polygon Premier Kids- Assembly Video
Your bike needs minor assembly before riding; use the tools and videos included.
As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.
Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.
Unboxing Your Bike
Bike Fit Setup
Tyre Pressure Setup
Pre-Ride Check
