Details
PURE ENDURO POWER
If you’re looking for a super enduro from Mondraker with everything you’ll ever need to gas it when the trail points downwards but a carbon frame just isn’t on your list of priorities, the Superfoxy R is the bike for you. Designed to dominate aggressive enduro trails with a powerful combination of premium components and cutting-edge technology.
FORWARD GEOMETRY
The Superfoxy R's geometry is designed for stability on descents and agility on climbs. Forward Geometry enhances handling at high speeds, while 160mm of travel and the Öhlins TTX Air shock ensure a smooth, controlled ride. Confidently tackle tight corners, rocky climbs, and challenging trails with ease.
ENDURO-READY COMPONENTS

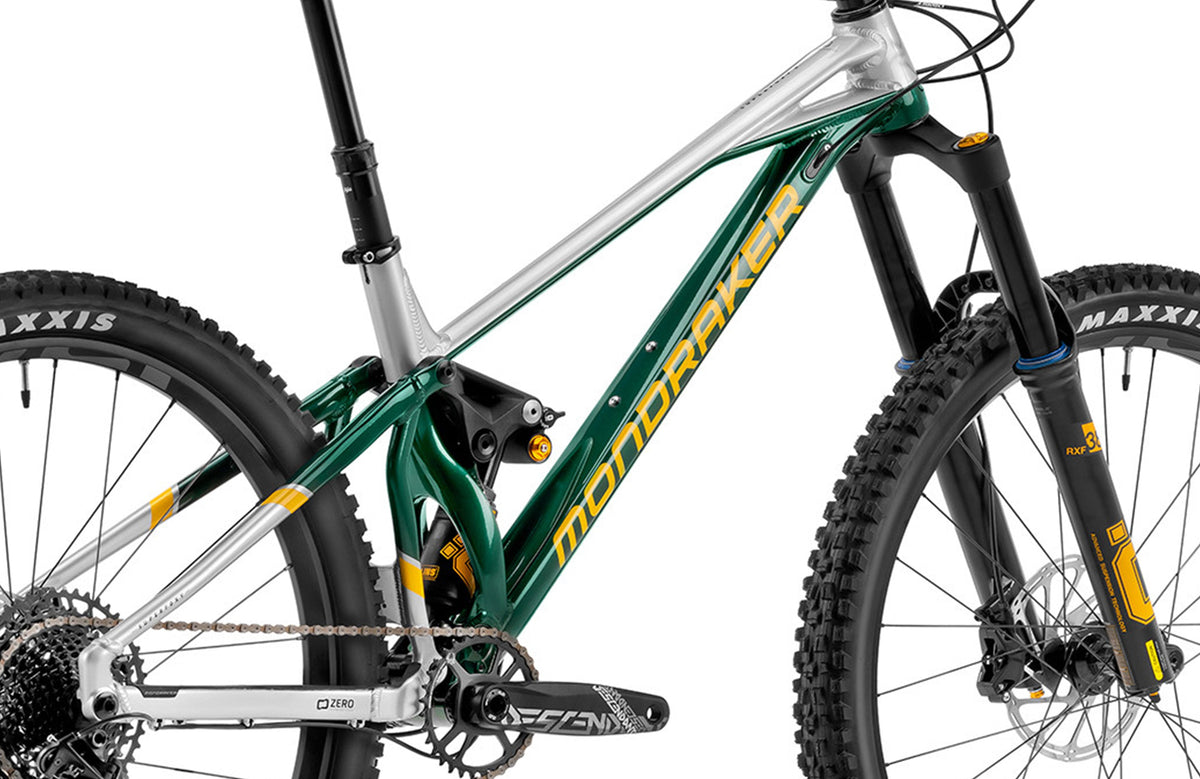

Featuring a SuperFoxy 29 6061 Alloy frame (160mm travel), Öhlins RXF 38 M.2 fork (170mm), and Öhlins rear shock (205x65mm). The SRAM NX Eagle 12-speed drivetrain, Truvativ Descendant crankset, and SRAM DB8 brakes with 200mm rotors ensure smooth shifting and reliable stopping power. e*thirteen LG1 Enduro wheels and Maxxis Assegai/Dissector tires deliver grip, durability, and control on rugged terrain.
INDUSTRY REVIEW
“The Superfoxy R’s Ohlins suspension and Zero Suspension system itself are what make this bike an absolute dream in the rough. The long and stable chassis tracks across steep and chunky trails with ease, eating braking bumps and ruts like they weren’t there.” - AMB
Specs
| frameset | |
|---|---|
| Frame | SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one-piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05 |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| suspension | |

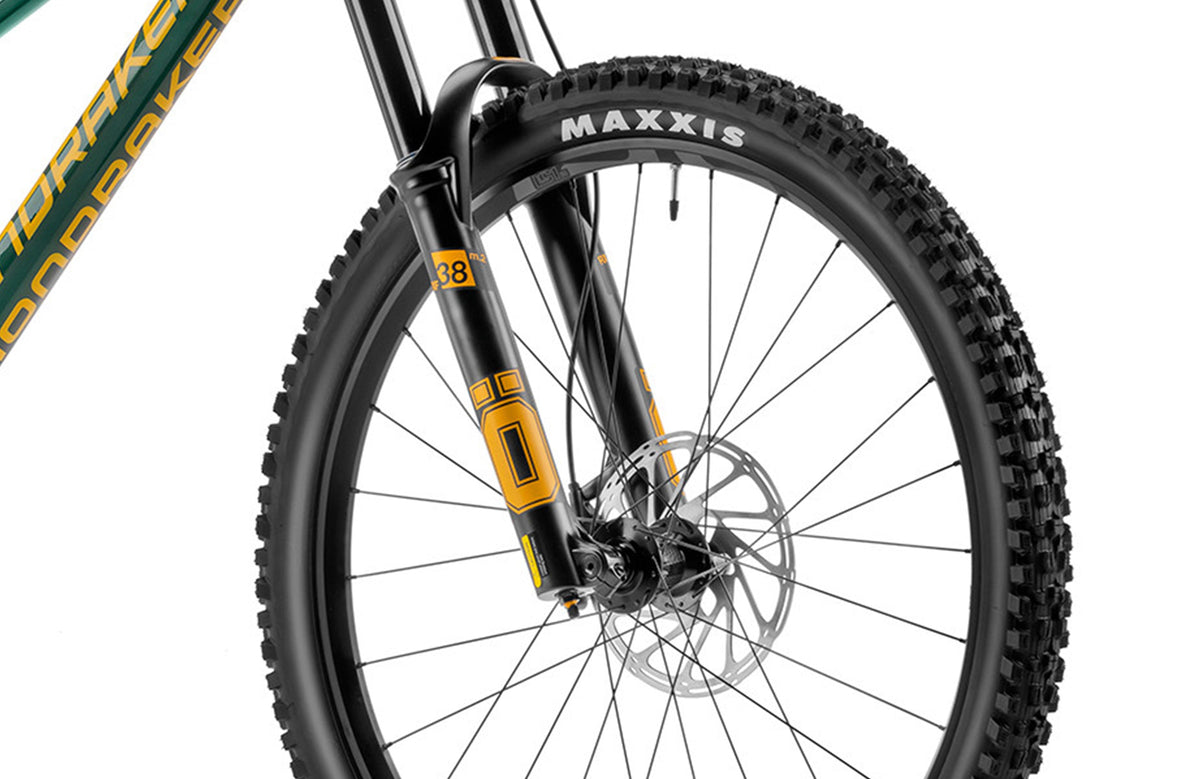

| Fork | Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| Shock | Öhlins TTX Air 205X65mm. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
| drivetrain | |

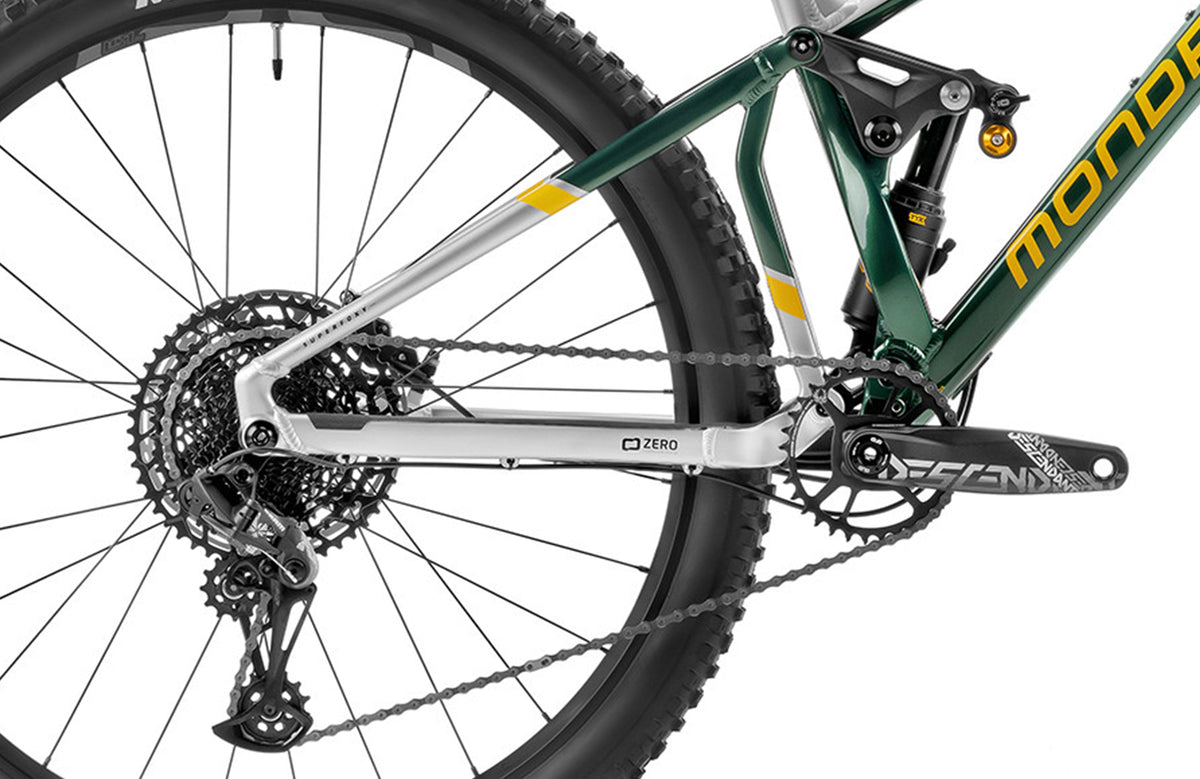

| Rear derailleur | Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
| Shifter | Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Crank | Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chainring, S/M size: 170mm, L/XL size: 175mm |
| Chainring | 32T, CNC-machined alloy, X-SYNC 2 |
| Cassette | Sram XG-1230, 11-50T, 12s |
| Chain | Sram SX Eagle, 12s, Powerlock |
| brakes | |
| Front brake | Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear brake | Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rotor | Centerline 200mm IS 6 bolts one-piece rotor |
| wheels | |
| Front hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear hub | e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub |
| Rim | e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Tyre | Front Tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead Rear Tire: Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| contact points | |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips | Onoff Twin, 1 lock-on, 135mm |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| weight | |
| Bike weight | 37.7 lbs |
Geo
| Frame Size | S | M | L | XL |
| Rider Height | 165–170 cm (5'5"–5'7") | 170–180 cm (5'7"–5'11") | 175–187 cm (5'9"–6'1") | 185–195 cm (6'1"–6'5") |
| A Seat Tube Length | 14.96" | 16.54" | 18.50" | 20.08" |
| B Top Tube Length | 23.82" | 24.61" | 25.59" | 26.38" |
| C Bottom Bracket Drop | -0.79" | -0.79" | -0.79" | -0.79" |
| D Bottom Bracket Height | 13.78" | 13.78" | 13.78" | 13.78" |
| E Chainstay Length | 17.52" | 17.52" | 17.52" | 17.52" |
| F Seat Tube Angle | 71° | 71° | 71° | 71° |
| G Effective Seat Tube Angle | 76° | 76° | 76° | 76° |
| H Head Tube Angle | 65° | 65° | 65° | 65° |
| I Fork Offset | 1.73" | 1.73" | 1.73" | 1.73" |
| J Wheelbase | 48.19" | 49.02" | 50.12" | 50.91" |
| K Head Tube Length | 3.94" | 4.33" | 5.12" | 5.12" |
| L Reach | 17.72" | 18.50" | 19.29" | 20.08" |
| M Stack | 24.45" | 24.45" | 25.16" | 25.16" |
