Details
MADE FOR FUN

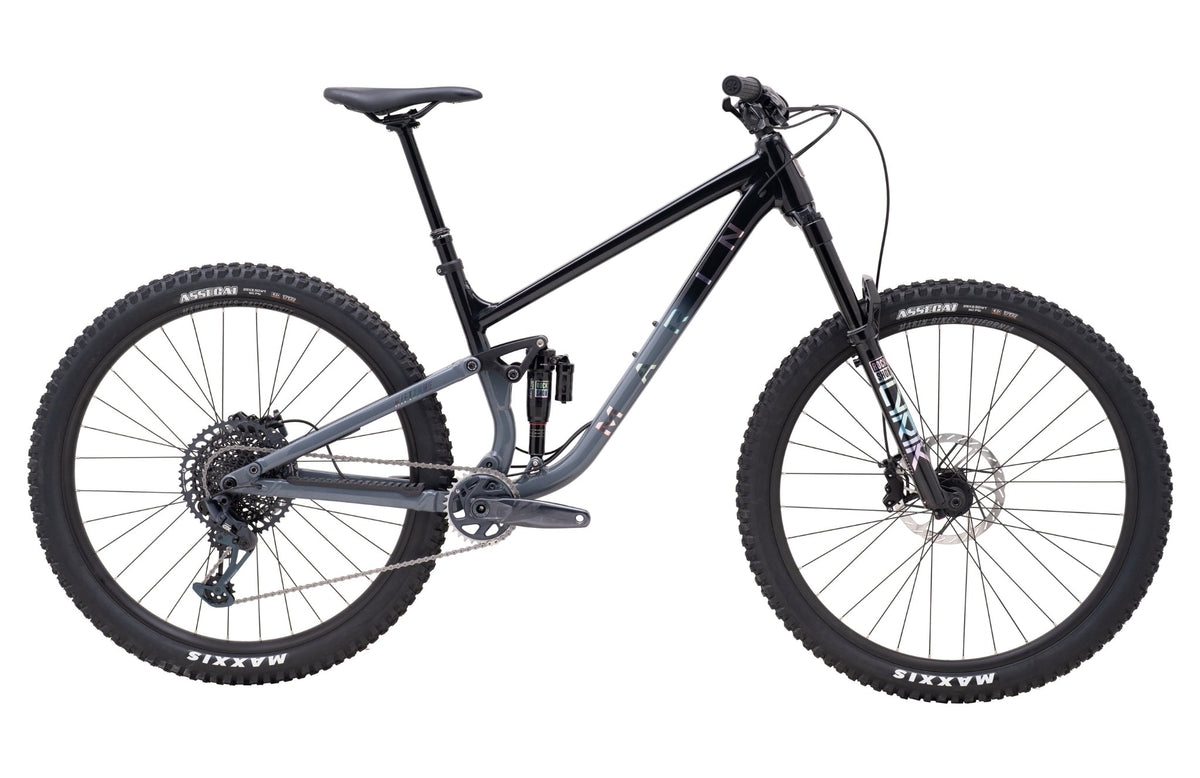

The Marin Rift Zone is your ultimate do-it-all trail bike, made to party on any terrain. With modern geometry and 130mm of rear travel, a lightweight aluminium frame and our super-plush Multi-Trac suspension platform for endless good times on the trails.
XR = EXTRA RAD

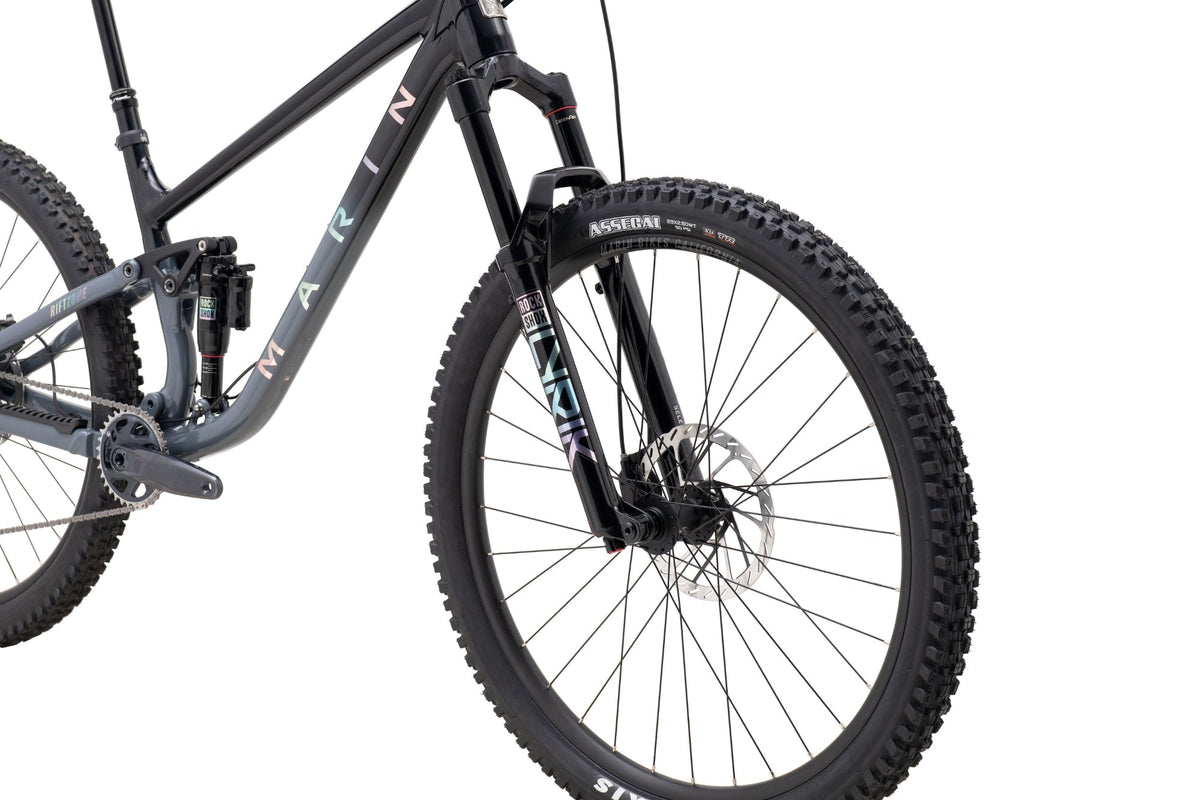

The XR gets an extra spicy build to make it even more capable on the descents. Starting up front, the fork travel is boosted to 150mm for an even more composed and stable ride. To handle longer and gnarlier descents, the rear shock gets a piggyback reservoir and quality 4 pistons brakes for fade free performance when things get rough!
FRAME FEATURES
Wheel size fit! Smaller sizes get nimble 27.5" wheels, while larger frames roll on confidence-inspiring 29" wheels. Medium riders get the choice. The frame is also UDH compatible, making for a future-proof package!
WHERE IT BEGAN!
Marin's roots are tangled with the very beginnings of mountain biking. Founded in Marin County, California, the sport's birthplace, This rich heritage fuels their passion to this day. Now, Marin pushes those boundaries further with riders like Matt Jones, constantly innovating to redefine what's possible on a mountain bike
Specs
| frameset | |
|---|---|
| Frame | Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs, SRAM UDH |
| Headset | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| suspension | |
| Fork | RockShox Lyrik Select+, 150mm Travel, 29" wheels, 110x15 Maxle Stealth, 42mm Offset |
| Shock | RockShox Super Deluxe Select+, 210x55mm, 25xM8 Hardware, Custom Tune |
| drivetrain | |
| Rear derailleur | SRAM GX Eagle Lunar |
| Shifter | SRAM GX Eagle Lunar MMX Mount |
| Crank | SRAM GX Eagle, 32T, 55MM CL, 170MM Length |
| Cassette | SRAM GX 1275 T-Type 10-52T |
| Chain | SRAM NX Eagle |
| brakes | |
| Front brake | SRAM DB8 4-Piston Hydraulic Disc, HSC 200mm Rotor |
| Rear brake | SRAM DB8 4-Piston Hydraulic Disc, HSC 180mm Rotor |
| wheels | |
| Front hub | Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h |
| Rear hub | Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H |
| Rim | Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
| Tyre | Maxxis Assegai, 29x2.5", MAXX TERAA, EXO, Tubeless Compatible |
| contact points | |
| Handlebar | Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
| Grips | Marin Grizzly Lock-On |
| Saddle | Marin Speed Concept |
| Seatpost | TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm |
| Stem | Marin CNC, 35mm Length, 35mm Bar Bore |
| Pedals | Not Included |
| weight | |
| Bike weight | 32.6 lbs. (Size L) |
Geo
| Frame Size | S (27.5") |
M (27.5") |
M (29") |
L (29") |
XL (29") |
| Height (cm) | 163-170cm | 168-175cm | 170-177cm | 177-185cm | 185-192cm |
| (A) Frame stack | 569 | 601 | 628 | 637 | 642 |
| (B) Frame reach | 415 | 430 | 460 | 485 | 515 |
| (C) Head tube angle | 65.1° | 65.1° | 65.1° | 65.1° | 65.1° |
| (D) Head tube length | 115 | 120 | 115 | 125 | 130 |
| (E) Seat tube angle | 77° | 77° | 77° | 77° | 77° |
| (F) Seat tube length | 330 | 390 | 400 | 425 | 430 |
| (G) Effective top tube | 550 | 569 | 605 | 632 | 663 |
| (H) BB Height | 344 | 344 | 348 | 348 | 348 |
| (I) BB offset (Drop) | 35 | 35 | 35 | 35 | 35 |
| (J) Chainstay length | 430 | 430 | 430 | 430 | 430 |
| (K) Wheelbase | 1148 | 1164 | 1205 | 1234 | 1266 |
| (L) Standover height | 661 | 678 | 691 | 702 | 702 |
| Handlebar Width | 780 | 780 | 780 | 780 | 780 |
| Stem Length | 35 | 35 | 35 | 35 | 35 |
| Crank Length | 170 | 170 | 170 | 170 | 170 |
| Fork Offset | 44 | 44 | 44 | 44 | 44 |
| Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 |
* All lengths in mm
Build
Assembly Videos - Dual Suspension MTB
Get ready to hit the road with your new bike! It’ll arrive almost ready to go, but you’ll need to do a quick setup first. Don’t worry, we’ve popped all the tools you’ll need right in the box.
If you’re a bike-building pro: You’ll be done in just 10-15 minutes.
Got a knack for fixing things? Give it 15-25 minutes.
New to the DIY world? Take your time, around 30-40 minutes, and you’ll get there!
Need some visual aids? We’ve got you covered! Just click on our step-by-step video guide below for a smooth setup. Happy cycling!
How To Unbox Your Dual Suspension MTB
How To Setup Your Suspension
Dial In Your Bike Fit
Dial In Your Tyre Pressures
Pre-Ride Check
