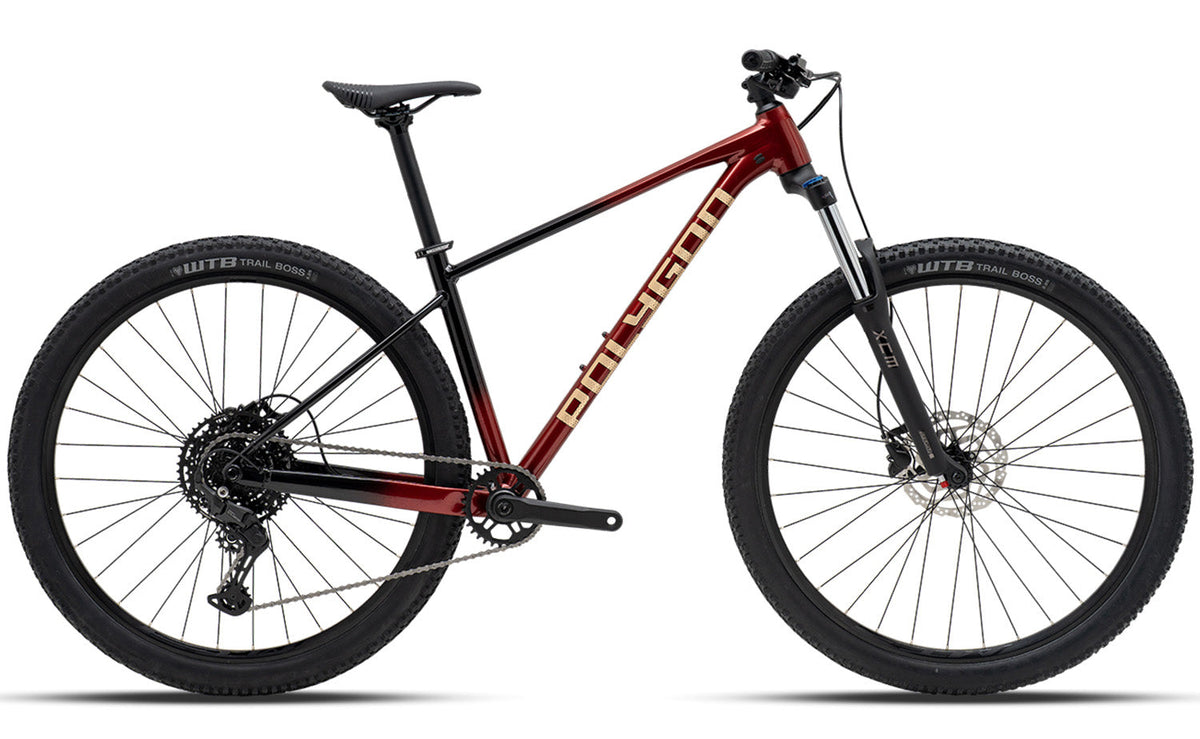

Polygon Xtrada 5 - Mountain Bike [New] - hardtail mountain bike
Polygon Xtrada 5 - Mountain Bike [New] - hard tail mountain bike product image 3
Polygon Xtrada 5 - Mountain Bike [New] - hardtail mountain bike product image 4
Polygon Xtrada 5 - Mountain Bike [New] - hardtail mountain bikes product image 5
Polygon Xtrada 5 - Mountain Bike [New] - hardtail mountain bike product image 10
Ex-Demo Polygon Xtrada 5 29 - Medium #5767
Ex-Demo Polygon Xtrada 5 29 - Medium #5767
Ex-Demo Polygon Xtrada 5 29 - Medium #5767
Ex-Demo Polygon Xtrada 5 29 - Medium #5767
Ex-Demo Polygon Xtrada 5 29 - Medium #5767
Ex-Demo Polygon Xtrada 5 29 - Medium #5767
Ex-Demo Polygon Xtrada 5 29 - Medium #5767

Details

YOUR FIRST REAL MTB

YOUR FIRST REAL MTB

Built to open the door to real mountain biking, with handling that feels composed, efficient, and confidence-inspiring from the first ride. Stable on loose terrain yet responsive under power, it encourages riders to progress onto faster, more technical trails.

MODERN XC GEOMETRY

MODERN XC GEOMETRY

Modern XC geometry creates a refined balance of stability and agility. A more confident front end improves control on descents, while an efficient pedaling position and 29-inch wheels help maintain speed smoothly across varied trail conditions.

TRAIL-READY PERFORMANCE

TRAIL-READY PERFORMANCE

A 120 mm coil fork brings comfort and control to rougher tracks, while Shimano CUES 10-speed gearing and hydraulic disc brakes deliver simple, dependable performance for building confidence off-road.

SUNTOUR XCM 32
SUNTOUR XCM 32 Offers 120 mm of coil-sprung travel with lockout and rebound adjust. Boost 15×110 mm thru-axle and tapered steerer improve stiffness and precise handling on trails.
SHIMANO CUES 10 SPEED
SHIMANO CUES 10 SPEED Rear derailleur with clutch and 11‑48T cassette delivers smooth, reliable shifting. Paired with a 170 mm Prowheel crank and KMC X‑Glide chain for consistent pedaling performance.
SHIMANO MT200 HYDRAULIC
SHIMANO MT200 HYDRAULIC 2‑piston hydraulic disc brakes provide consistent stopping power and modulation for XC and trail riding. Smooth, reliable braking under varied conditions.
RELIABLE WHEELS
RELIABLE WHEELS 29” alloy double-wall tubeless ready rims with Boost 12×148 mm hub, paired with 29×2.25” WTB Trail Boss tires for stable traction and confidence over rough terrain.
UDH + BOOST THRU AXLES
UDH + BOOST THRU AXLES Universal Derailleur Hanger (UDH) ensures consistent derailleur alignment, simplifies maintenance, and allows easy replacement, while Boost thru-axles increase wheel stiffness and stability.

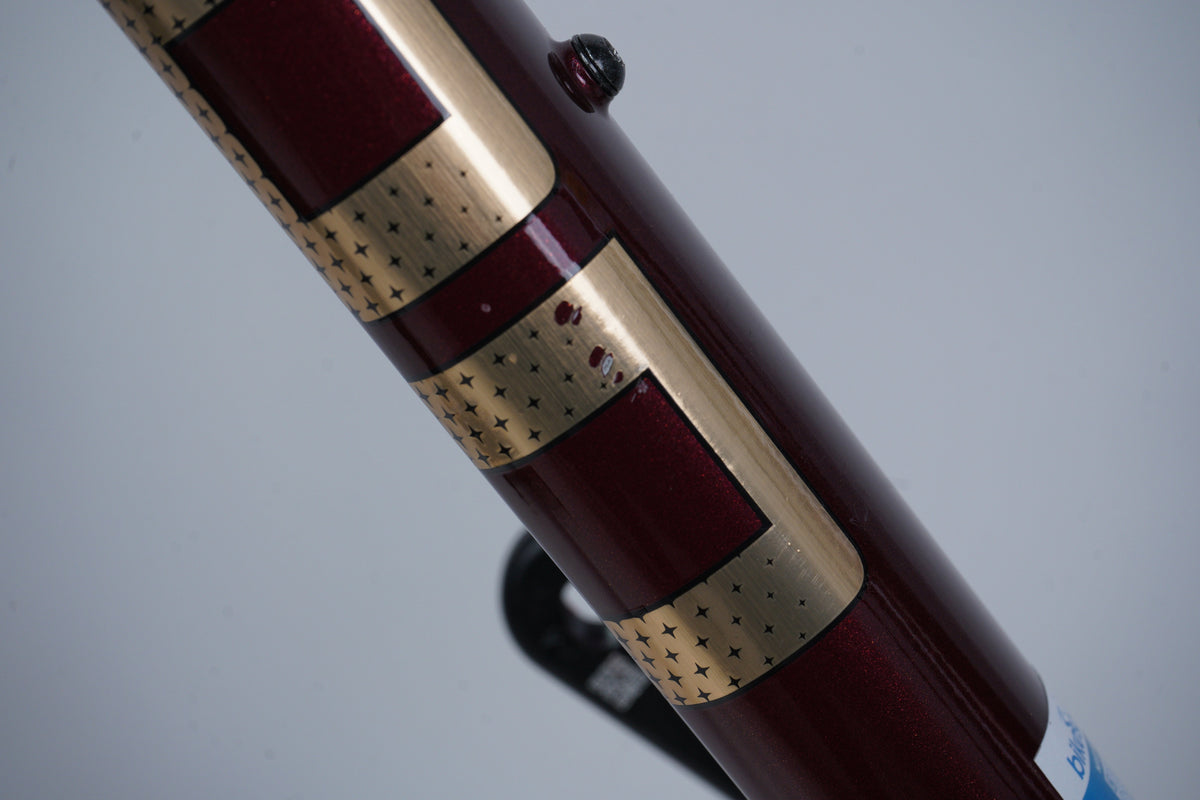

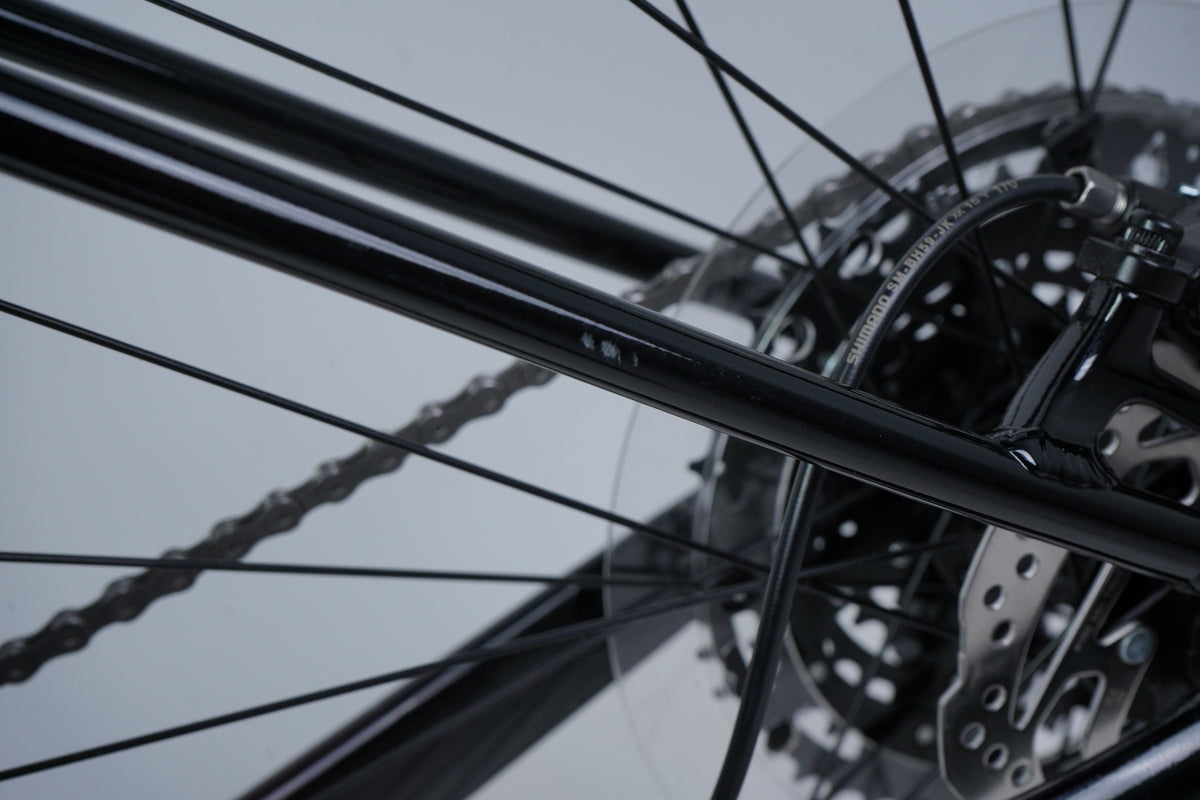

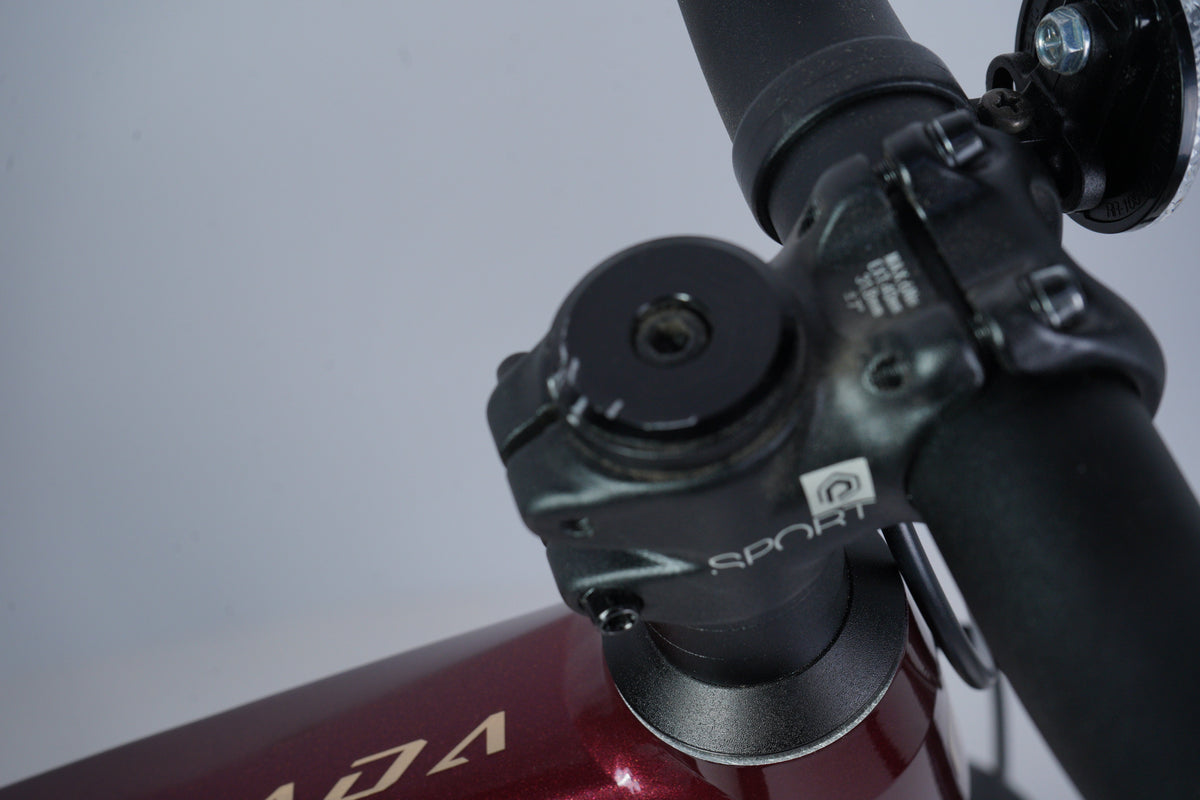

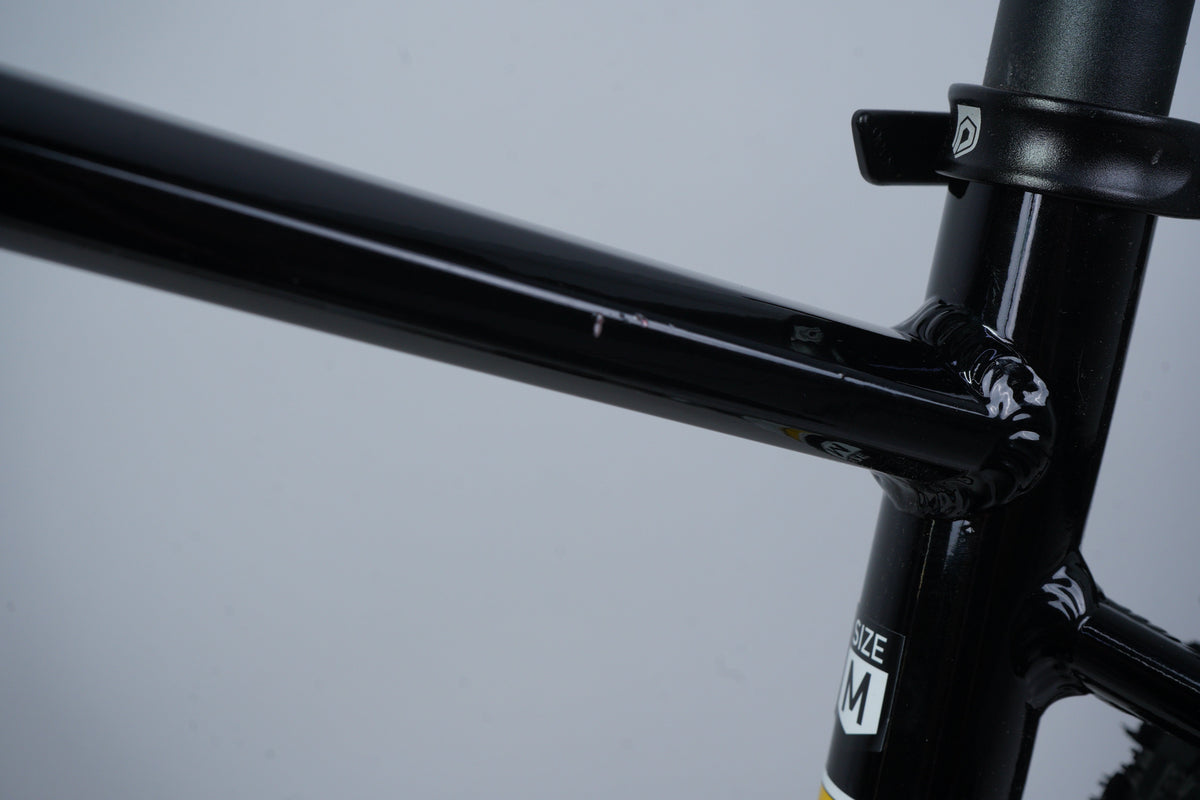

Get the bike you always wanted for the lowest possible price. These ex demo bikes come with small cosmetic blemishes that would probably happen after your first ride or two. So why not save on your dream ride? All of our standard policies that you would typically get with a new bike, such as warranty, also apply! Value and assurance, a match made in heaven!
Any questions? Chat to our friendly team
Specs
frameset
FrameALX XC 29", Aluminum, Hardtail, Internal Cable Routing, 12x148mm Thru Axle Rear, UDH Hanger, Post-Mount Disc Brake 160mm
HeadsetZero Stack w/ Sealed Bearings, ZS 44/28.6 Top | ZS 56/40 Bottom
suspension
ForkSuntour XCM 32, 120mm Travel, Coil Spring, Lockout, Rebound Adjust, Boost Thru Axle 15x110mm, Steel Tapered Steerer 1-1/2" – 1-1/8", Offset 0mm
drivetrain
Rear derailleurShimano CUES RD-U6000, 10-Speed with Clutch
ShifterShimano CUES SL-U6000, 10-Speed Trigger
CrankProwheel RMZ-MD25S-TT, 170mm
Chainring32T
CassetteShimano CS-LG300, 10-Speed, 11-48T
ChainKMC X-Glide, 10-Speed
brakes
Front brakeShimano MT200, 2-Piston, Hydraulic Disc
Rear brakeShimano MT200, 2-Piston, Hydraulic Disc
RotorShimano SM-RT10, 160mm
wheels
Front hubAlloy Boost Thru Axle 15x110mm, 6-Bolt
Rear hubAlloy Boost Thru Axle 12x148mm, 6-Bolt
RimAlloy Double Wall, Internal Width 23mm, Depth 19mm, 32H, Tubeless-Ready
TyreWTB Trail Boss, 29x2.25"
Max tyre size29x2.25"
contact points
HandlebarPolygon Sport, 760mm Width, 20mm Rise, 9° Bend, 31.8mm Diameter, Alloy
SaddleLinc Void, Steel Rails ø7mm
SeatpostPolygon Sport, 30.9x350mm, Alloy
StemPolygon Sport, 40mm Length, 3° Rise/Drop, Alloy
PedalsOne-Piece PP Body
weight
Bike weight32.4lbs
Geo

  S M L XL
Rider Height 5'1"-5'5" 5'5"-5'9" 5'9"-6'1" 6'1"-6'5"
(A) Stack 620 629 638 647
(B) Reach 410 430 450 470
(C) Head Tube Angle 67° 67° 67° 67°
(D) Head Tube Length 90 100 110 120
(E) Seat Tube Angle 73° 73° 73° 73°
Seat Tube Angle Effective 74° 74° 74° 74°
(F) Seat Tube Length 390 430 450 470
(G) Top Tube Effective 586 609 632 655
(H) Bottom Bracket Height 313 313 313 313
(I) Bottom Bracket Offset 60 60 60 60
(J) Chainstay 432 432 437 437
(K) Wheel Base 1121 1145 1174 1198
(L) Standover Height 725 756 772 788
Fork Travel 120 120 120 120

* All lengths in mm

Build

2024 Polygon Xtrada 7 1x12 Assembly Video

Your bike needs minor assembly before riding; use the tools and videos included.

As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.

Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.

  1. Unboxing Your 2024 Polygon Xtrada 7 1x12

  2. Bike Fit Setup

  3. Tyre Pressure Setup
