Polygon Relic 24 - Kids Mountain Bike - kids bike

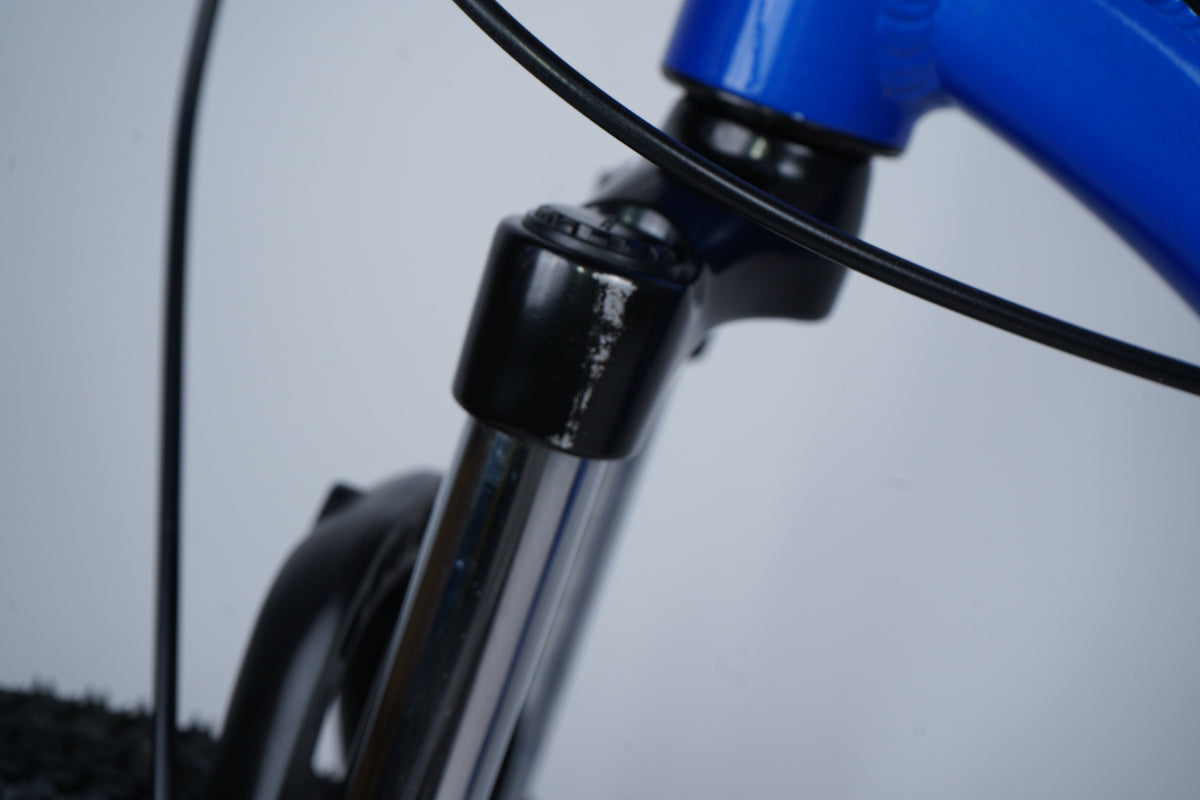

Ex-Demo Polygon Relic 24 - #5620 - used bikes online product image 2

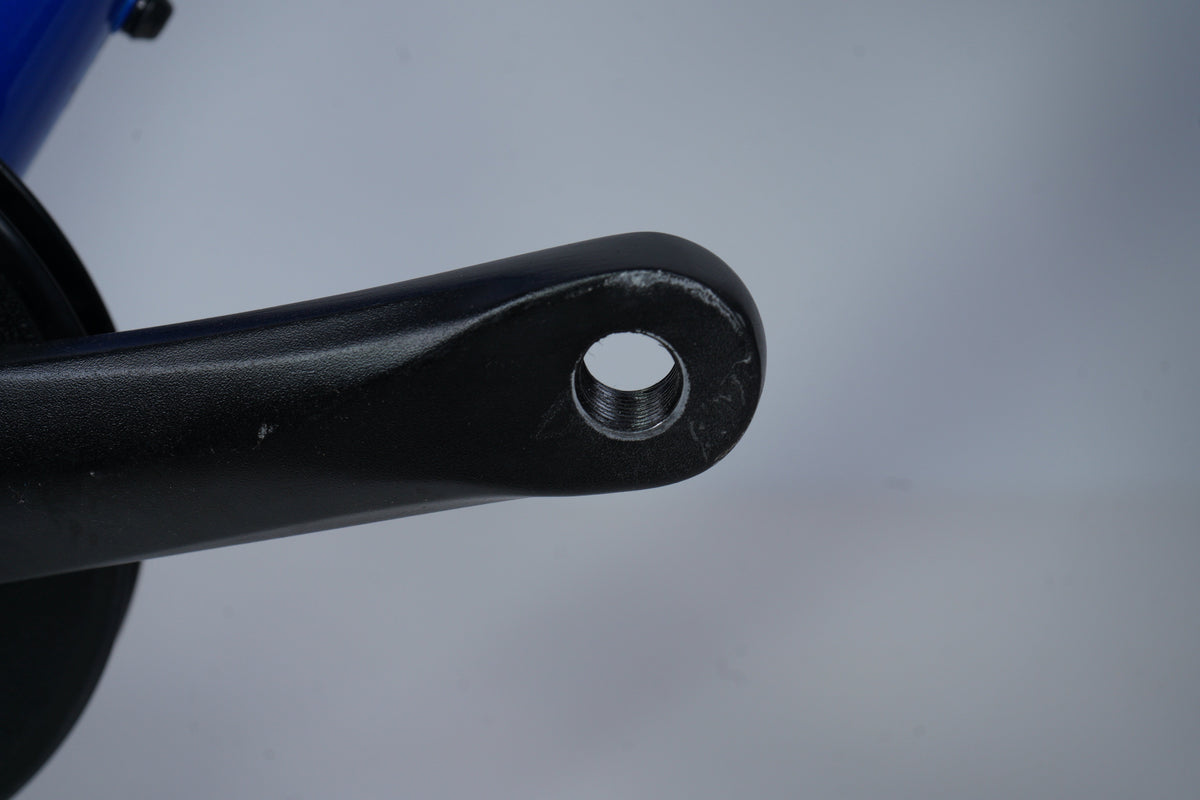

Ex-Demo Polygon Relic 24 - #5620 - used bikes online product image 3

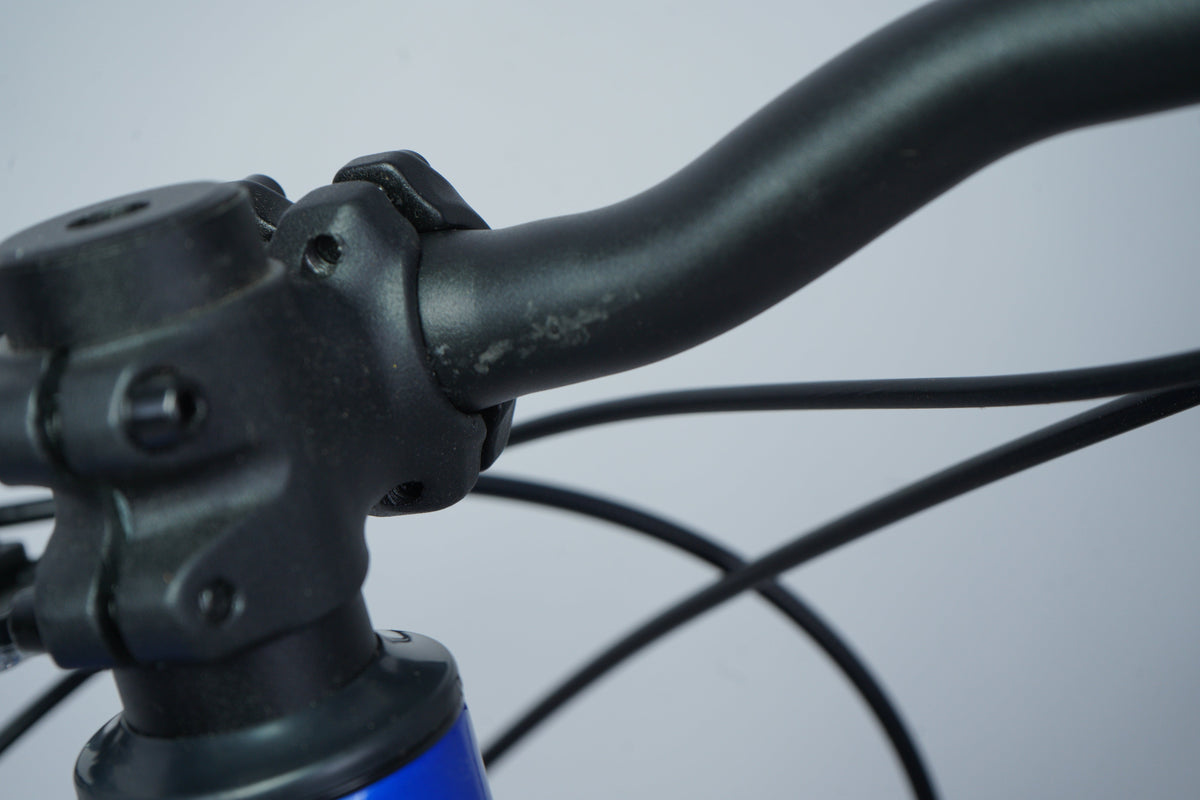

Ex-Demo Polygon Relic 24 - #5620 - used bikes online product image 4

Details

LIGHTWEIGHT

LIGHTWEIGHT

The latest Relic 24” from Polygon features the perfect mix of quality parts, confidence-inspiring geometry and durability. It features a super lightweight aluminium frame with bottle mounts, robust tubing and a lifetime warranty.

GEOMETRY

GEOMETRY

The comfy riding position and the steady handling of the Relic make it ideal for new riders. It features a 70° head tube and 72° seat tube angles, and 425mm chain stays for confident handling.

ZOOM FORK
ZOOM FORK With 60mm of travel, the Zoom HL suspension fork features a kid's spec extra-soft spring and quick-release wheel interface.
SHIMANO 8-SPEED
SHIMANO 8-SPEED 8-Speed Tourney from Shimano offers an ample gear range for getting around, with a 32t chainring up front and a 12-32t on the rear.
DISC BRAKES
DISC BRAKES Specially designed for young riders with short-reach mechanical levers for small hands, these levers are made from durable materials that provide powerful and consistent braking in all conditions.
Get the bike you always wanted for the lowest possible price. These ex demo bikes come with small cosmetic blemishes that would probably happen after your first ride or two. So why not save on your dream ride? All of our standard policies that you would typically get with a new bike, such as warranty, also apply! Value and assurance, a match made in heaven!
Any questions? Chat to our friendly team
Specs
frameset
FrameAL6 Alloy Youth, 24" Wheels, IS Seatstay Disc Mount, 135mm Dropouts
suspension
ForkZoom HL, 60mm Travel, Alloy Crown & Lower, Coil Spring, Straight 1-1/8" Steerer, QR x 100mm
ShockShimano Tourney SL-RS45, Revo Shifter with Optical Gear Display, 8-Speed
drivetrain
Rear derailleurShimano RD-TX800-SGS, Direct Attach
ShifterShimano Tourney SL-RS45, Revo Shifter with Optical Gear Display, 8-Speed
CrankProwheel A105PP 32T, 152mm
CassetteShimano HG200, 8 Speed, 12-32T
ChainKMC Z-8.3
brakes
Front brakeTektro TS-325A Mechanical Disc, Alloy Lever, 160mm Rotor
Rear brakeTektro TS-325A Mechanical Disc, Alloy Lever, 160mm Rotor
wheels
Front hubAlloy, 32H, QR, 6-Bolt
Rear hubAlloy, 32H, QR, 6-Bolt, 135mm Spacing
RimAlloy, Double-Wall, Disc Specific, 32H
TyreVee XCV 24 x 2.10"
Max tyre size24 x 2.3" (26 x 2.3" if the wheelset is upgraded to 26")
contact points
Handlebar640mm, Steel
GripsSlip-on Rubber, L:110mm R:72mm
SaddlePolygon Kids
Seatpost27.2x300mm, 16mm Offset, Alloy
Stem40mm, Steel
PedalsKids Specific Nylon Pedal
weight
Bike weight29.20 lbs
accessories
Kick standAlloy Centre Mount
Geo

Riders Height 4'1" to 4'11"
(A) Stack 514
(B) Reach 363
(C) Head Tube Angle 70
(D) Head Tube Length 100
(E) Seat Tube Angle 73
Seat Tube Angle Effective 73
(F) Seat Tube Length 300
(G) Top Tube Effective 520
(H) Bottom Bracket Height 265
(I) Bottom Bracket Offset -40
(J) Chainstay 410
(K) Wheel Base 988
(L) Standover Height 653

* All lengths in mm

** Realistic standover height measured at 3 o'clock pedal position

Build

Assembly Videos - Tambora G7

Your bike needs minor assembly before riding; use the tools and videos included.

As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.

Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.

Please follow the video playlist below to complete the setup of your new bike correctly.

  1. Unboxing Your Tambora G7

  2. Dial In Your Bike Fit

  3. Dial In Your Tyre Pressures

  4. Pre-Ride Check
