Details
ENDURANCE GRAVEL
Whether you're embarking on a multi-day backpacking trip or seeking out hidden trails, the Polygon Bend V9X is your ideal companion for off-the-grid adventures thanks to its infinite mounting possibilities. Its stable yet agile geometry and comfortable upright riding position inspire confidence on any terrain, from gravel roads to singletrack.
DO IT ALL ADVENTURER
The lightweight alloy frame and Novatec G24 carbon wheels deliver a responsive and efficient ride, while the SRAM Rival/GX Eagle AXS wireless electronic drivetrain offers seamless shifting and a wide gear range for conquering any climb or descent. Ride with extra confidence on the descents with wide 50c tyres, dropper post, and FOX AX 32 fork with 40mm of travel
A TRUSTED BRAND
Leveraging 30 years of experience crafting championship-winning road and mountain bikes, Polygon brings its performance-driven engineering and vertically integrated manufacturing to the gravel world. The Bend V9X is a testament to this legacy, boasting durability, reliability, and a 5-year warranty for peace of mind on any adventure.
INDUSTRY REVIEW
"The 50mm fast rolling tyres make the bike hum along. The Fox TaperCast fork is the cherry on top." - AMB

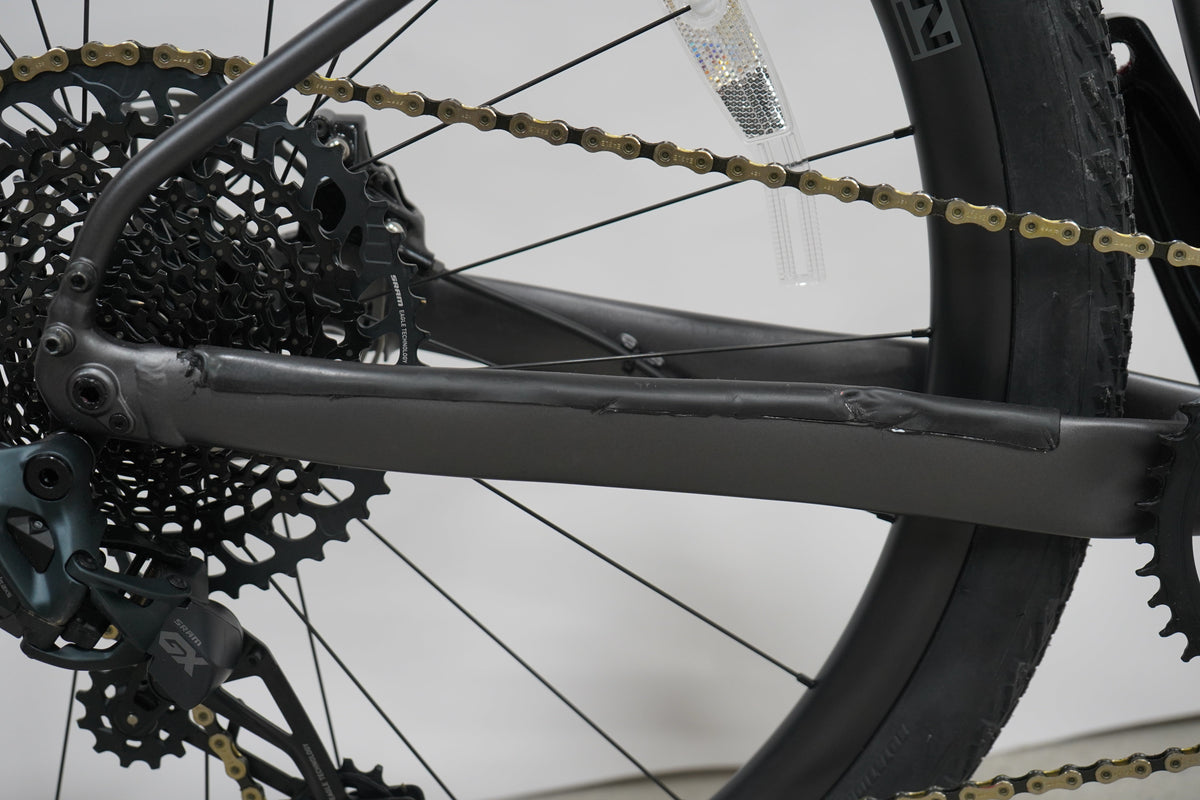

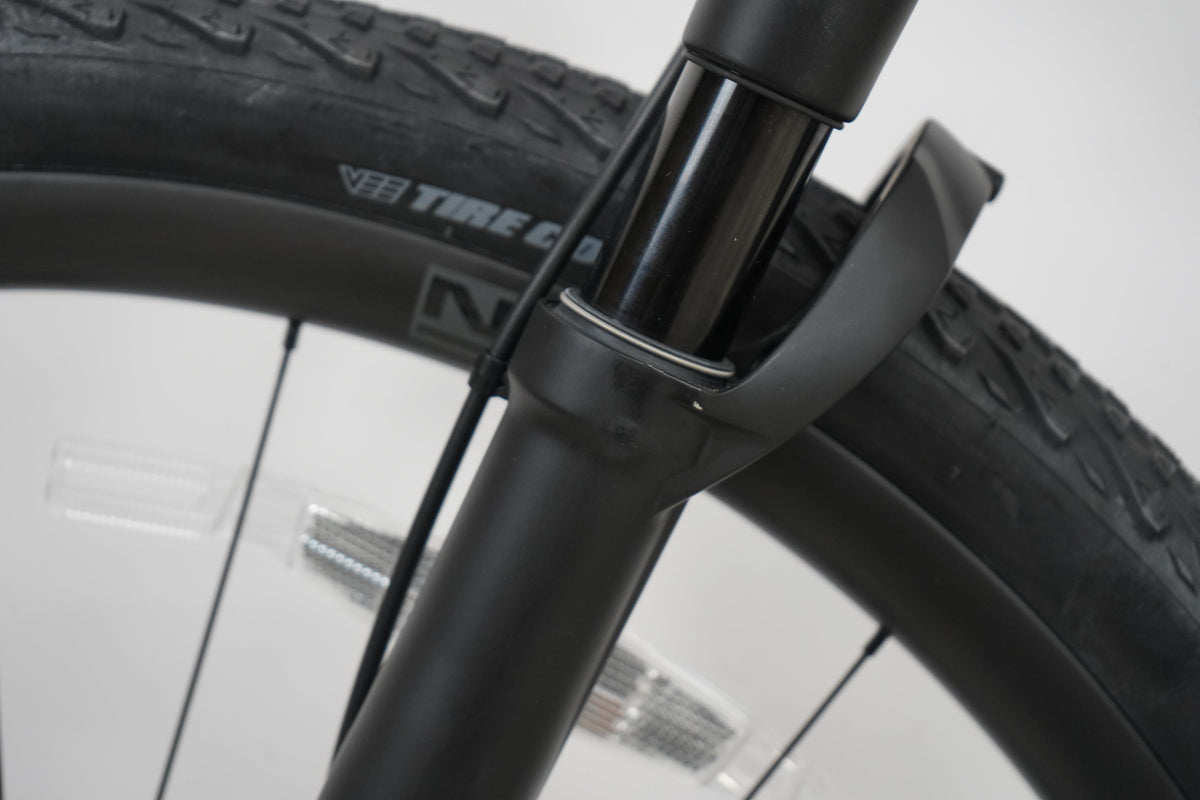

Get the bike you always wanted for the lowest possible price. These ex demo bikes come with small cosmetic blemishes that would probably happen after your first ride or two. So why not save on your dream ride? All of our standard policies that you would typically get with a new bike, such as warranty, also apply! Value and assurance, a match made in heaven!
Specs
| frameset | |
|---|---|
| Frame | ALX Gravel Frame, Internal Cable Routing, BB86 Press Fit BB, 12x142mm Thru-Axle, Flat Mount Disc |
| suspension | |
| Fork | Fox AX 32, GRIP Damper Float air spring, 40mm Travel, 12x100mm Thru-Axle, Flat Mount Disc |
| drivetrain | |
| Rear derailleur | SRAM GX Eagle AXS, 12-Speed |
| Shifter | SRAM Rival ETAP AXS, 12-Speed |
| Crank | SRAM Rival 1, Wide, S-M: 165mm, L-XL: 170mm |
| Chainring | 40T |
| Cassette | SRAM XG-1275, 12-Speed, 10-52T |
| Chain | SRAM GX Eagle, 12-Speed |
| brakes | |
| Front brake | SRAM RIVAL, Hydraulic Disc Brake, 160mm Paceline Rotor |
| Rear brake | SRAM RIVAL, Hydraulic Disc Brake, 140mm Paceline Rotor |
| wheels | |
| Front hub | NOVATEC D791, 12X100mm, 24H, CL Hub, Stainless double butted spokes, Alloy Nipple |
| Rear hub | Novatec D92, 12x142mm 24H CL Hub Stainless Double Butted Spokes, Alloy Nipple |
| Rim | Novatec G24 Carbon Rim, 28mm internal width, Tubeless Tape Installed |
| Tyre | Vee Tire Co. Rail, 700x50C, 622x50, Tubeless Ready |
| contact points | |
| Handlebar | Entity Expert, 31.8mm Clamp Diameter, 125mm Rise, 16 Degree Flare, 420mm Width (S-M), 440mm Width (L-XL) |
| Saddle | Entity STEEL ø 7mm |
| Seatpost | RockShox Reverb AXS XPLR, 75mm |
| Stem | Entity Expert, 70mm Length, 31.8mm Clamp, 7-Degree |
| weight | |
| Bike weight | 25lbs (Size L) |
Geo
| S | M | L | XL | |
| Wheel Size | 700C | 700C | 700C | 700C |
| Rider Height (cm) | 160-168 | 167-175 | 174-182 | 181-189 |
| (A) Seat Tube Length | 405 | 450 | 495 | 540 |
| (B) Seat Tube Angle | 74 | 73.5 | 73 | 73 |
| (C) Effective Seat Tube Angle | 74 | 73.5 | 73 | 73 |
| (D) Head Tube Length | 105 | 130 | 165 | 200 |
| (E) Head Tube Angle | 69 | 69.5 | 70 | 70 |
| (F) Effective Top Tube | 525 | 550 | 580 | 610 |
| (G) BB Height | 282 | 282 | 282 | 282 |
| (H) BB Offset | 75 | 75 | 75 | 75 |
| (I) Chainstay Length | 445 | 445 | 445 | 445 |
| (J) Wheelbase | 1038 | 1054 | 1076 | 1107 |
| (K) Frame Reach | 363 | 376 | 389 | 409 |
| (L) Frame Stack | 564 | 589 | 624 | 657 |
| (M) Standover Height | 697 | 739 | 782 | 824 |
* All lengths in mm
Build
Polygon Bend Assembly
Your bike needs minor assembly before riding; use the tools and videos included.
As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.
Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.
Unboxing Your Bike
Bike Fit Setup
Tyre Pressure Setup
