Details
ENGINEERED FOR PERFORMANCE
The Haro Rivette Carbon 2 is crafted from a custom carbon frame designed to maximize stiffness and minimize weight. With its aerodynamic tube shapes and internal cable routing, it cuts through the wind while maintaining perfect handling and control for competitive cyclists.
PRECISION SHIFTING
Upgrade your ride with Shimano’s 105 Di2 electronic groupset, ensuring flawless, instant shifting every time. Paired with Shimano 105 hydraulic disc brakes, the Rivette Carbon 2 offers consistent braking power and control in all weather conditions, letting you focus on the road ahead.
AERODYNAMICS & CONTROL
The Vision Carbon SC30 AGX wheels are built for speed, designed to deliver maximum efficiency and durability on every ride. With tubeless-ready rims and Vittoria Rubino Pro IV tires, you’ll enjoy smooth, high-performance traction for race-day precision.
RACE-READY GEOMETRY
Designed to optimize comfort, power transfer, and handling, the Rivette Carbon 2’s geometry is race-tested and fine-tuned for explosive acceleration and sharp cornering. The carbon aero seatpost and ergonomic handlebars ensure a comfortable ride, whether you're in a sprint or tackling tough climbs.
Get the bike you always wanted for the lowest possible price. These ex demo bikes come with small cosmetic blemishes that would probably happen after your first ride or two. So why not save on your dream ride? All of our standard policies that you would typically get with a new bike, such as warranty, also apply! Value and assurance, a match made in heaven!
Specs
| frameset | |
|---|---|
| Frame | Haro Rivette Carbon Frame |
| Headset | Token A-Box Headset with internal cable routing |
| suspension | |
| Fork | Haro Rivette Carbon Fork with internal routing and Carbon Tapered steerer |
| drivetrain | |
| Rear derailleur | Shimano 105 Di2 12-speed, RD-R7150 |
| Front derailleur | Shimano 105 Di2, FD-R7150, Braze On |
| Shifter | Shimano 105 Di2 12-speed, ST-R7170 |

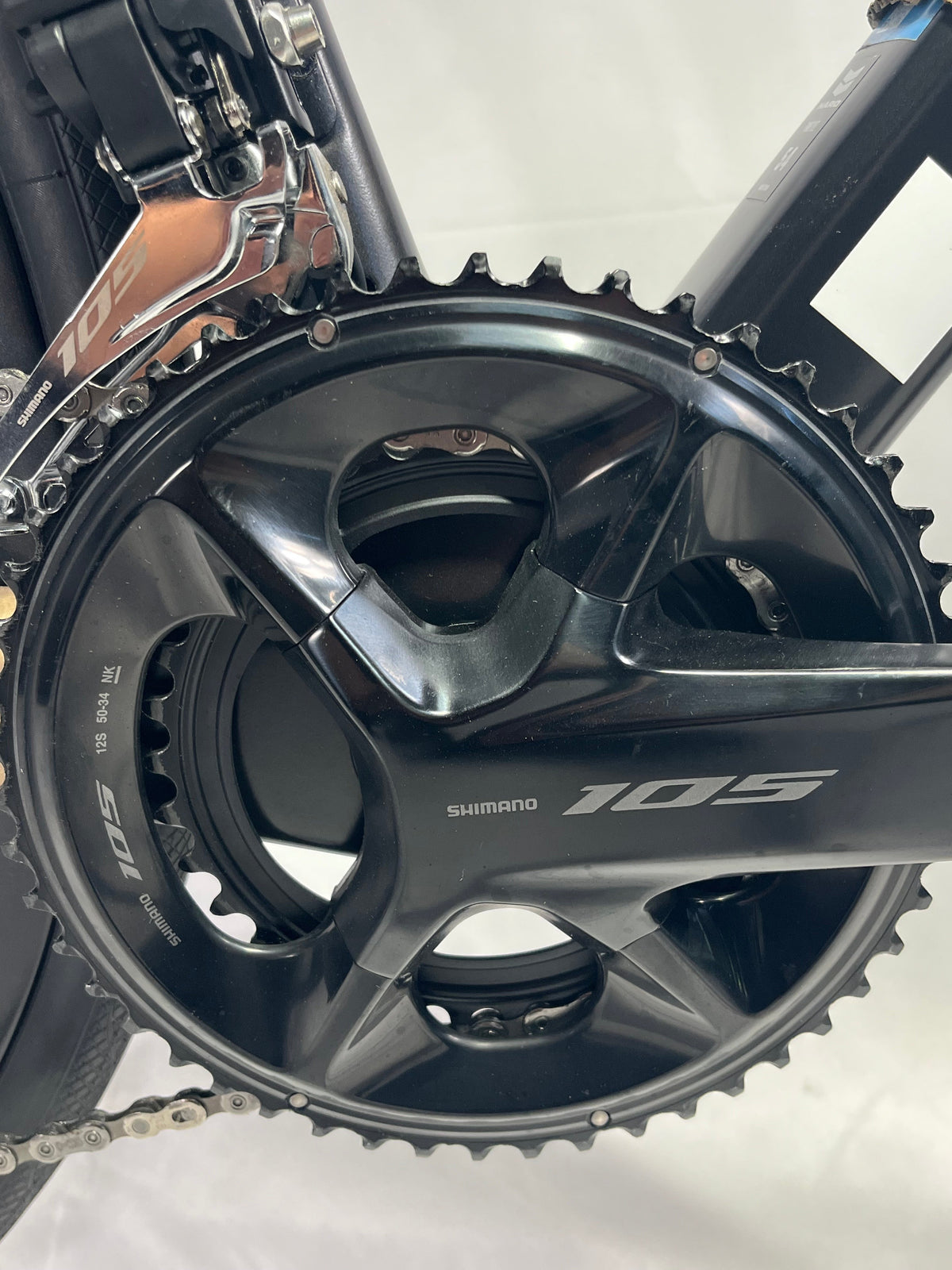

| Crank | Shimano 105 FC-R7100, 50-34T, size-specific crank lengths (165mm for 48cm, 170mm for 51cm, 172.5mm for 54cm, 56cm, 175mm for 58cm, 61cm) |
| Chainring | 50-34T, Shimano 105 FC-R7100 |
| Cassette | Shimano 105 12-speed, 11-34T |
| Chain | Shimano HG-12spd, CN-M7100 |
| brakes | |
| Front brake | Shimano 105 Hydraulic Disc Brakes |
| Rear brake | Shimano 105 Hydraulic Disc Brakes |
| Rotor | 160mm, CL |
| wheels | |
| Front hub | N/A (Integrated with wheelset, Vision Carbon SC30 AGX) |
| Rear hub | N/A (Integrated with wheelset, Vision Carbon SC30 AGX) |
| Rim | Vision Carbon SC30 AGX Tubeless Clincher |

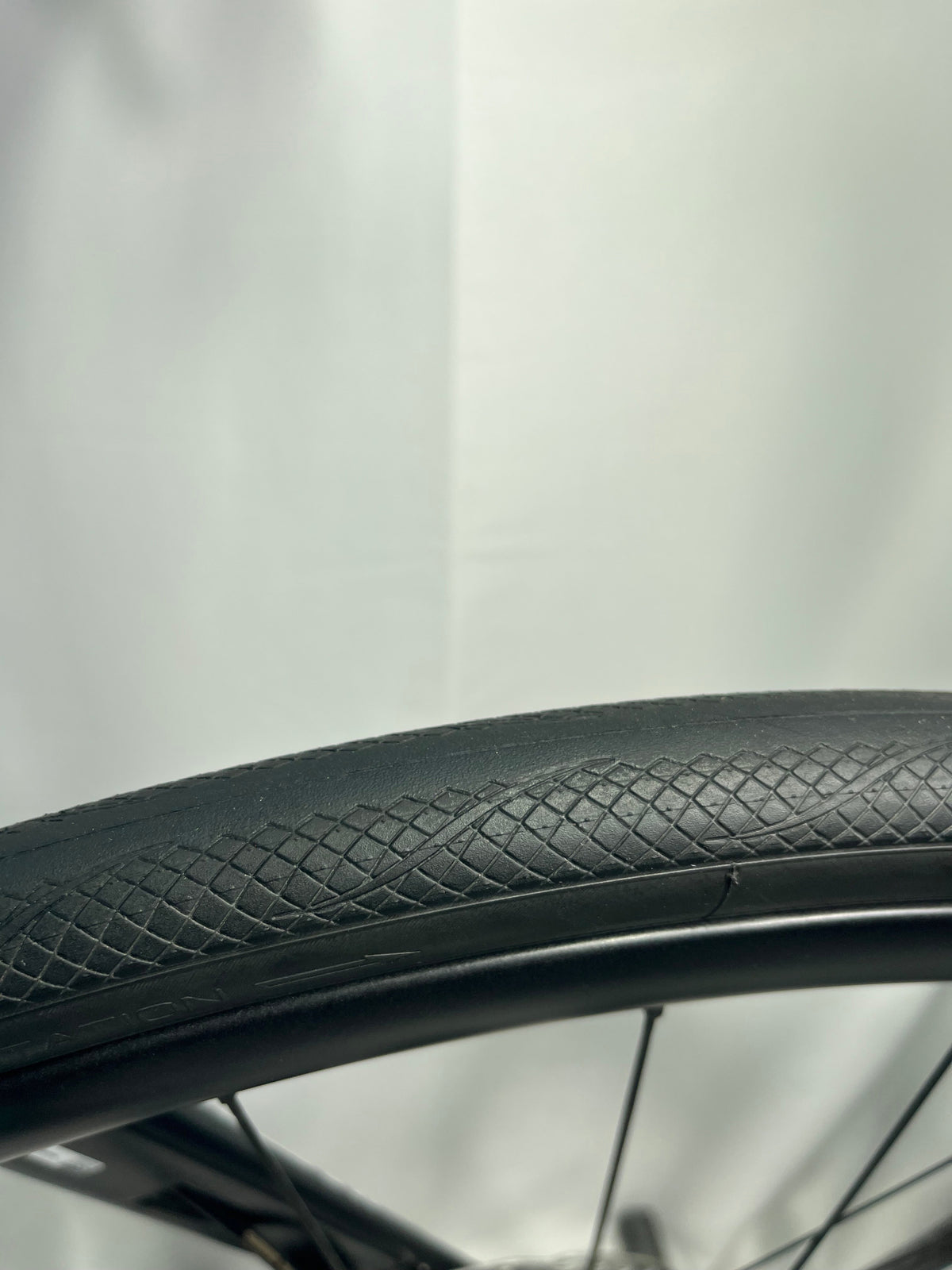

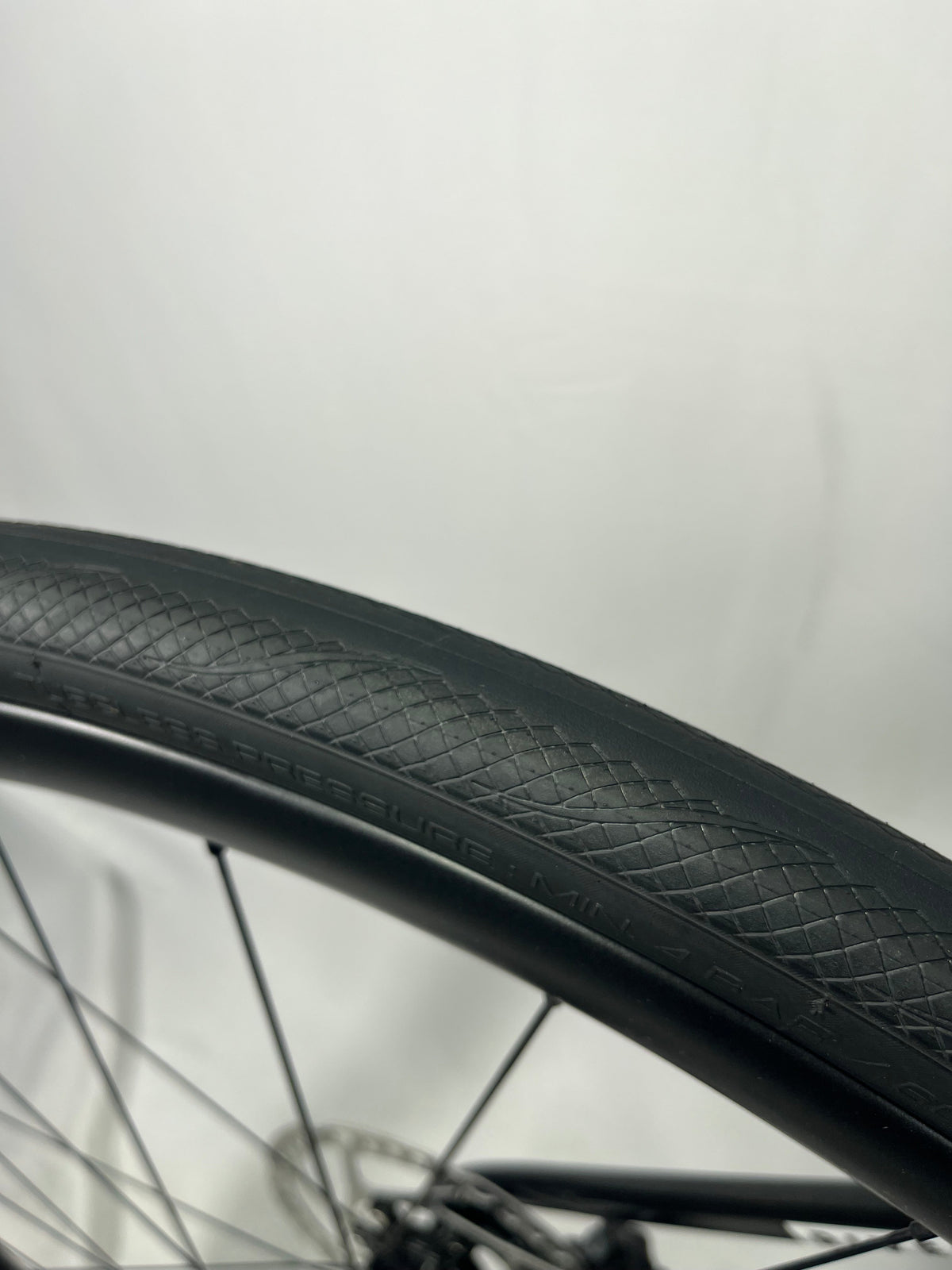

| Tyre | Vittoria Rubino Pro IV 30-622 TLR, 70x30c |
| Max tyre size | 700x36c |
| Inner tube | Tubeless-ready setup (Valves, tape, and sealant included) |
| contact points | |
| Grips | Ciclovation Advanced, Leather touch, 3mm Thick |
| Saddle | Selle San Marco Shortfit 2.0 Open-Fit, Manganese rails |
| Seatpost | Haro Rivette Carbon Aero, 275mm for 48/51/54, 375mm for 56/58/61 |
| Stem | BLKTEC 3D forged 6061-T6, -7°, ø31.8, size-specific lengths (90mm for 48cm, 100mm for 51cm and 54cm, 110mm for 56cm, 58cm, and 120mm for 61cm) |
| weight | |
| Bike weight | 17.19 lbs ( Size 56 ) |
Geo
| Size | XS | S | M | L | XL | XXL |
| Rider Height | 5'1" - 5'4" | 5'4" - 5'7" | 5'7" - 5'9" | 5'9" - 5'11" | 5'11" - 6'2" | 6'2" - 6'5" |
| Top Tube (Effective) | 518mm | 533mm | 549mm | 565mm | 581mm | 605mm |
| Seat Tube (C-T) | 430mm | 470mm | 510mm | 536mm | 558mm | 590mm |
| Stack Height | 513mm | 533mm | 553mm | 574mm | 594mm | 624mm |
| Reach | 374mm | 383mm | 387mm | 393mm | 398mm | 406mm |
| Standover | 721mm | 753mm | 786mm | 809mm | 832mm | 862mm |
| Head Tube Length | 110mm | 130mm | 153mm | 164mm | 188mm | 220mm |
| Head Angle | 70.9° | 71.2° | 71.2° | 73° | 73° | 73° |
| Seat Angle | 74.6° | 74.3° | 74.3° | 73.3° | 72.9° | 72.3° |
| Wheel Base | 983mm | 997mm | 1009mm | 995mm | 1008mm | 1025mm |
| Chainstay | 408mm | 408mm | 408mm | 408mm | 408mm | 408mm |
| BB Drop | 74mm | 74mm | 72mm | 72mm | 69mm | 69mm |
| Axle to Crown | 376mm | 376mm | 376mm | 376mm | 376mm | 376mm |
| Fork Offset | 53mm | 53mm | 53mm | 45mm | 45mm | 45mm |
| Stem Length | 90mm | 100mm | 100mm | 110mm | 110mm | 120mm |
| Bar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Trail | 62.7mm | 60.4mm | 60.7mm | 57.8mm | 57.8mm | 57.8mm |
| Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c |
