Model Year

2026 – Present

Colour Options

• White Silver

Description

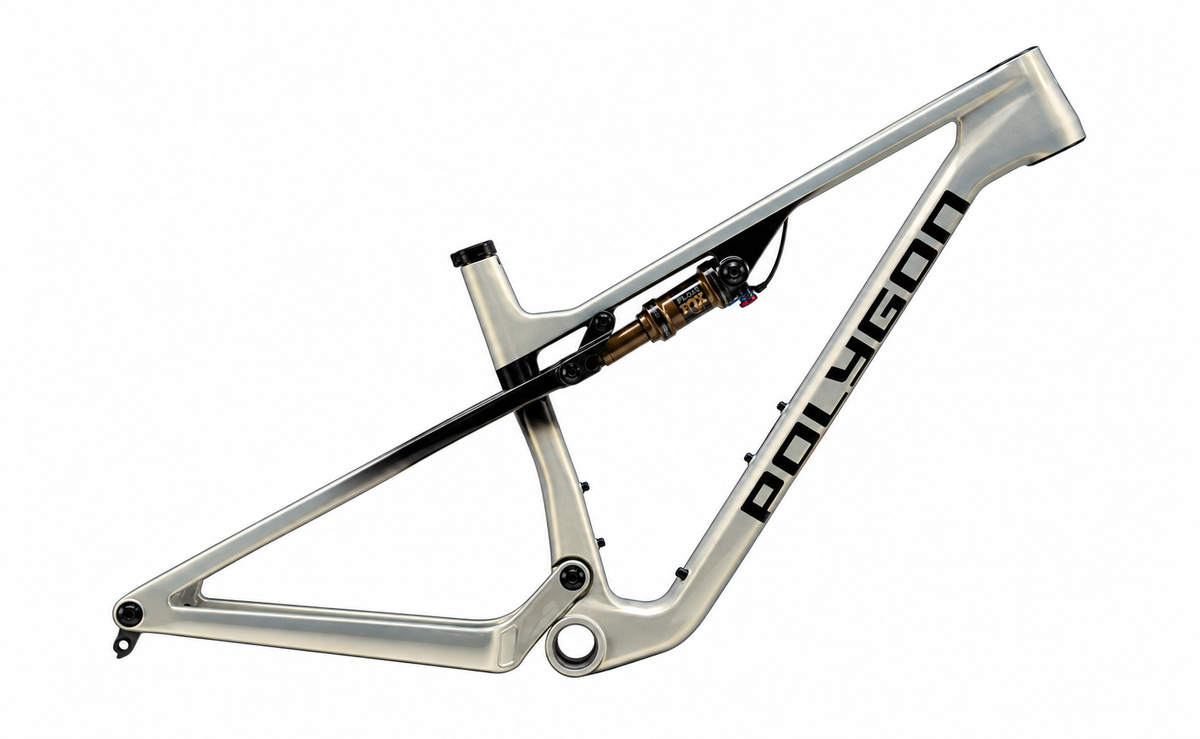

Designed for aggressive downcountry riding, high-speed singletrack, and technical XC courses, the 2026 Polygon Syncline DR9 Frameset* merges featherlight carbon performance with expanded trail capability. Constructed from Polygon's premium ACX carbon fiber, this frame features progressive trail-inspired geometry with a slacker head tube angle, longer reach, and short chainstays for razor-sharp handling on technical descents and efficient power delivery on steep climbs. Equipped with a 12x148mm Boost rear end, SRAM Universal Derailleur Hanger (UDH) standard for direct-mount drivetrain compatibility, full internal cable routing, and internal dropper post compatibility, it delivers a stiff, compliant, and future-proof foundation for a top-tier custom build.

Technical Specifications

• Frame Material: ACX Downcountry Performance Carbon Fiber

• Wheel Size Compatibility: 29"

• Recommended Fork Travel: 120mm

• Rear Axle Spacing: 12x148mm Boost Thru-Axle (SRAM UDH Standard)

• Bottom Bracket Standard: PressFit BB92 / Threaded T47 (depending on production batch)

• Seatpost Diameter: 30.9mm (internal dropper post routing compatible)

• Headset Standard: Integrated Tapered (IS 42/28.6 | IS 52/40)

• Brake Mount Standard: Flat-Mount or Post-Mount Disc (Max 180mm rear rotor)

• Cable Routing: Fully internal shift, brake, and dropper post routing

• Intended Use: Downcountry, Aggressive Cross-Country (XC), and Singletrack Riding
