Details
EMPOWER YOUR RIDE

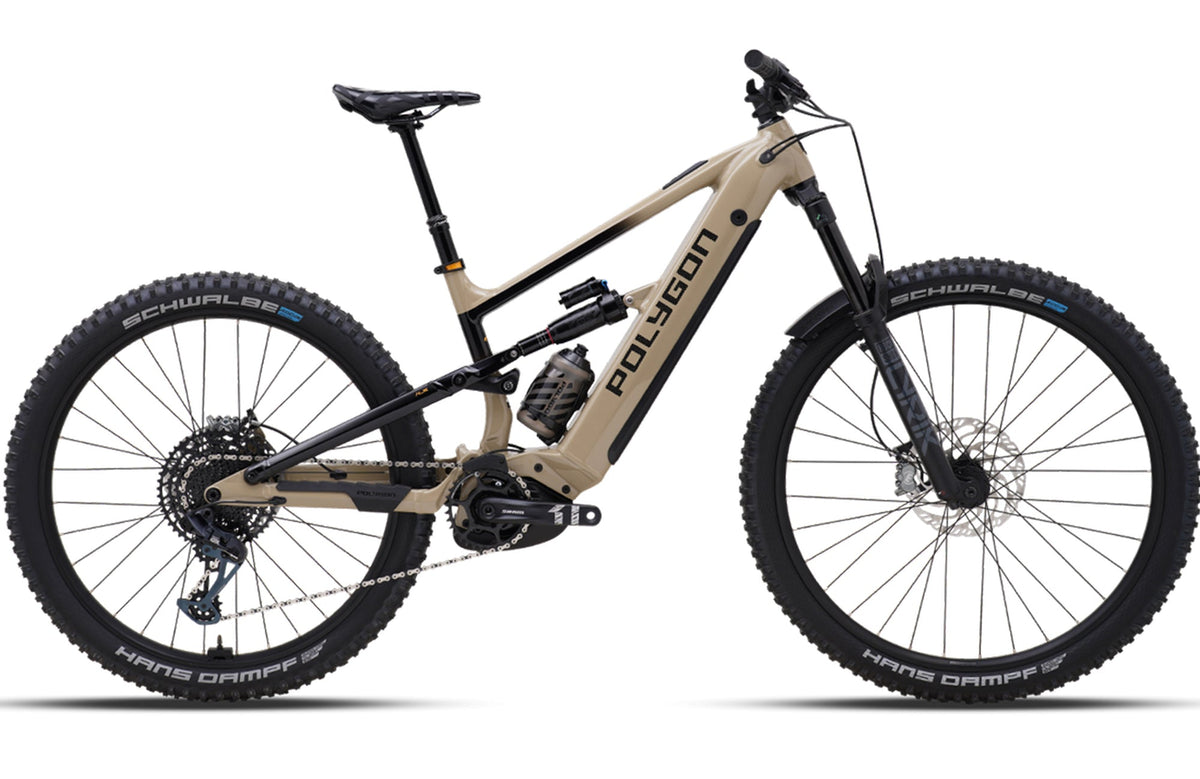

The Polygon Siskiu TE-N is your all-mountain companion, ready to elevate your e-MTB experience on any trail. From singletrack adventures to technical climbs and flowy descents, this bike's balanced design, with 140/150mm travel, delivers both agility and confidence. Experience the freedom to explore further, ride longer, and conquer challenging terrain with ease.
BOSCH!

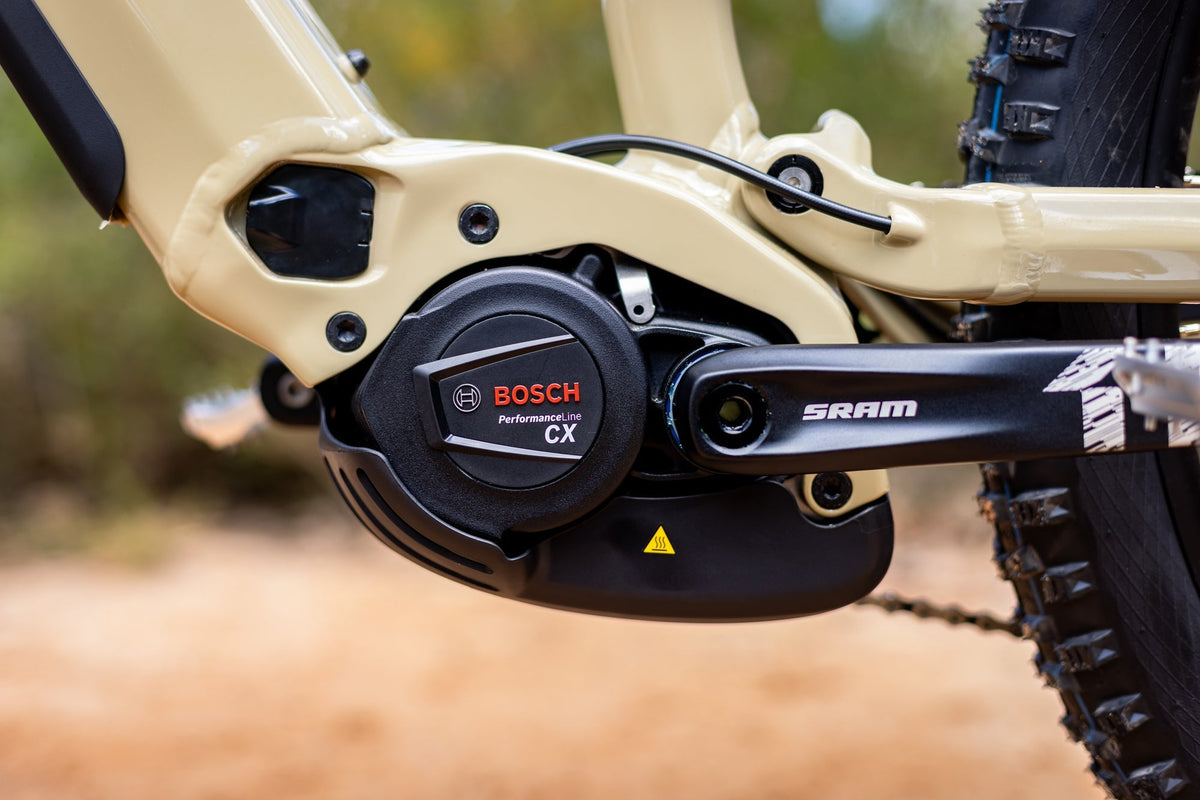

Think of the TE-N as the T8E, upgrading to the super desirable BOSCH Performance Line CX motor, delivering 85 Nm of smooth, quiet assistance for conquering any climb. The integrated 625Wh Bosch PowerTube battery offers ample range for all-day adventures, making the Siskiu TE-N one of the most affordable, trail-ready eMTBs equipped with the premium Bosch system.
FLIP-CHIP
The Siskiu TE-N features a flip-chip for personalized geometry adjustments. In the high position, run a mullet setup (27.5" rear wheel and 29" front) for a playful and agile ride on tight trails. Switch to the low position for optimized 29er (front and rear) performance on high-speed, chunky sections.
A TRUSTED BRAND
Polygon boasts over 30 years of experience and is known for offering high-performance bikes at competitive prices. The Polygon Factory Racing Team features top-100 enduro athletes who have rigorously tested and developed the Polygon range of eMTBs, with the Siskiu TE featuring as their favourite training tool. Rest assured, the Siskiu TE is finely tuned for performance, durability, and pure riding enjoyment.
The Polygon Siskiu TE-N is an electric mountain bike with Bosch-powered assist for powerful, reliable off-road riding. Its durable all-terrain frame, lightweight construction, and integrated display for battery and ride data make it well-suited for mixed terrain and steep climbs.
Specs
| frameset | |
|---|---|
| Frame | ALX Trail Frame, One Piece Linkage Suspension Platform 140mm Travel, Dropper Post And Rear Derailleur Routing, Direct Post-Mount Disc Brake, 148x12mm Boost Thru-Axle, Sram UDH |
| suspension | |
| Fork | RockShox Lyrik Select, 150mm, Debonair+, Charger RC Damper |

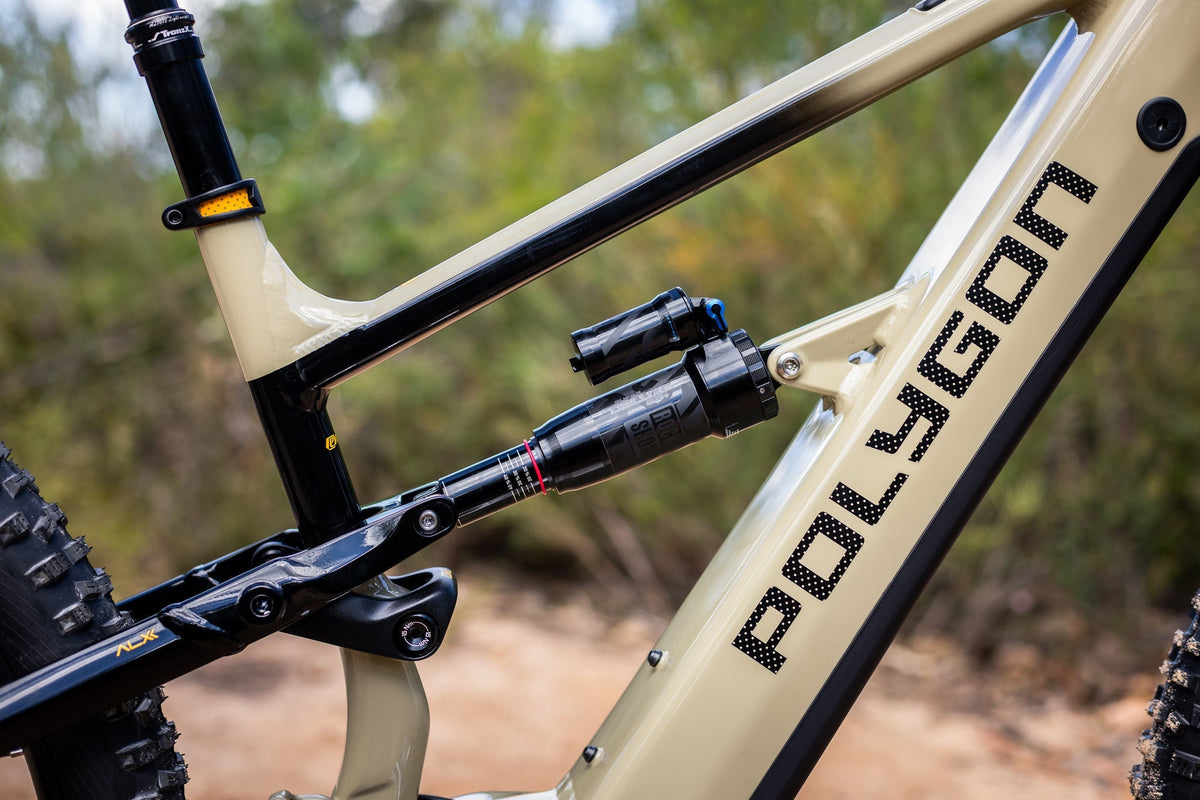

| Shock | RockShox Super Deluxe Select+ , 210x55 |
| drivetrain | |

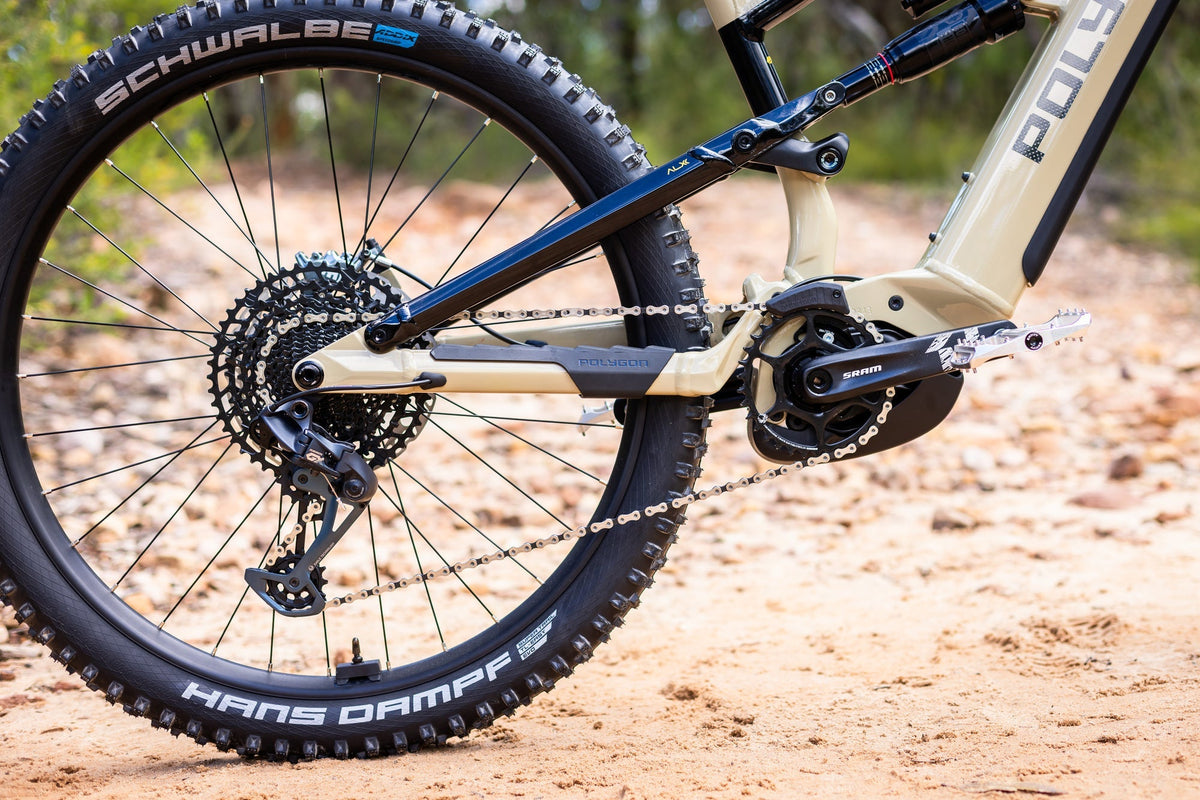

| Rear derailleur | Sram GX Eagle 12-Speed |
| Shifter | Sram SX Eagle, 1x12-Speed Trigger |

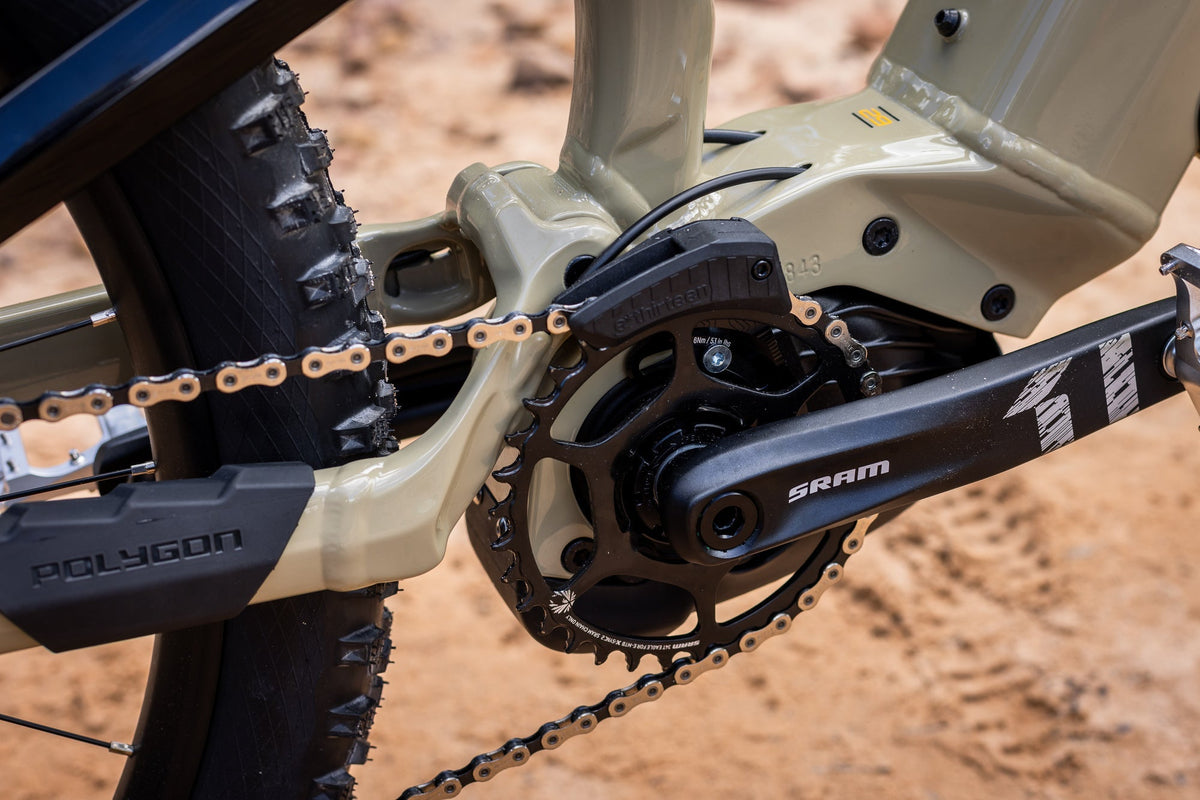

| Crank | Sram X-Sync, 34T |
| Cassette | Sram CS-PG-1210-A1 Eagle, 12-Speed, 11-50T |
| Chain | Sram GX Eagle 12-Speed |
| e system | |
| Battery | Bosch Power Tube, 625Wh, Horizontal |
| Motor | Bosch Performance Line CX, 85Nm |
| Range | 80-150km (Figures may vary depending on rider weight, terrain and mode used) |
| Charging time | 2.1hr (50%), 4.9hr (100%) |
| Charger | Bosch Battery Charger 4A 110V |
| Switch | Bosch Mini Remote BRC3300 |
| brakes | |

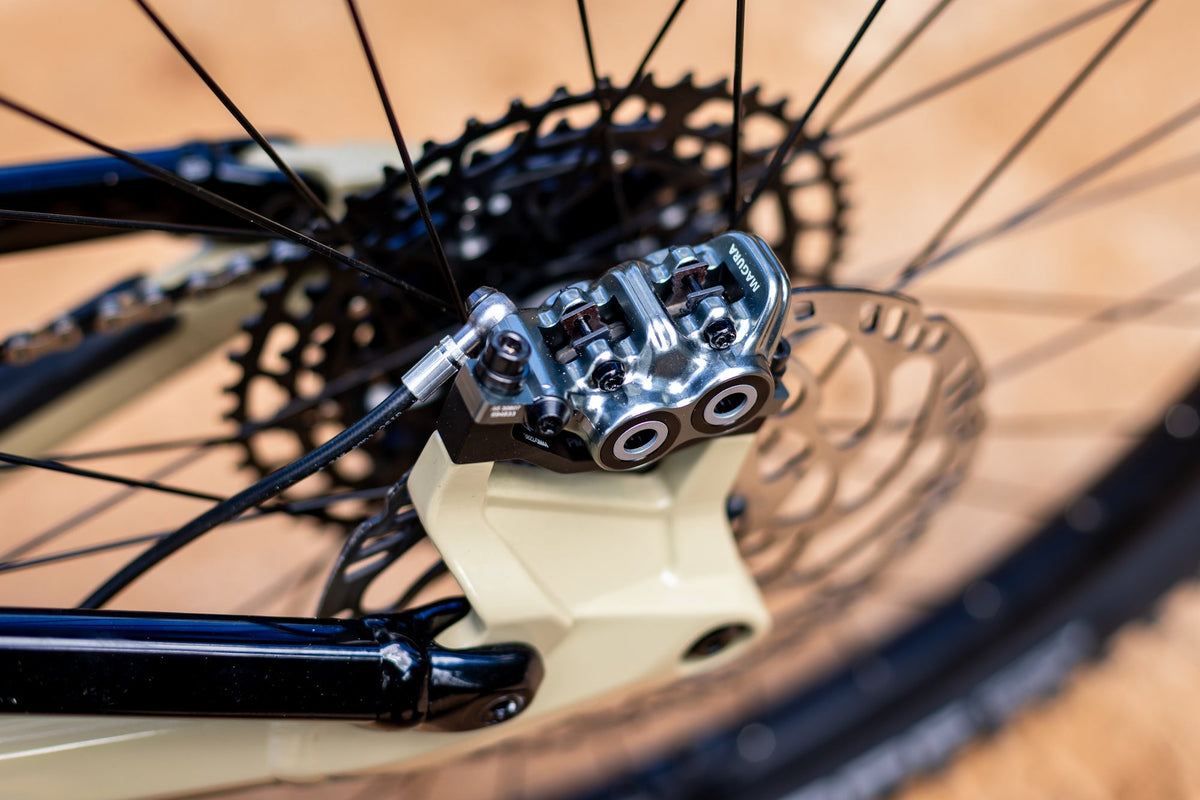

| Front brake | Magura MT7 Hydraulic Disc Brake, HC3 Lever |
| Rear brake | Magura MT7 Hydraulic Disc Brake, HC3 Lever |
| Rotor | 203mm Magura MDR Rotor |
| wheels | |
| Front hub | DT Swiss 370, 15mm Thru-Axle, 110mm spacing, 6-Bolt |
| Rear hub | DT Swiss 370 Classic, 12x148mm, 32H, 6-bolt |
| Rim | Front: Polygon 29'' Alloy Double Wall FV, 30mm Inner Width, 32H | Rear: Polygon 27.5'' Alloy Double Wall FV, 30mm Inner Width, 32H, Tubeless Ready ** |
| Tyre | Schwalbe Hans Dampf EVO 29x2.60" (Front) / 27.5x2.60" (Rear), Super Trail TLE, Addix Speed Grip, Tubeless Ready --- Maxxis Dissector 29x2.40" (Front) / 27.5x2.40" (Rear), 3C MaxxTerra, EXO+, Tubeless Ready, Foldable, WT, Black ** |
| contact points | |
| Saddle | Entity Xtend |
| Seatpost | TranzX JD-YSP23JL, 1x Remote, 30.9mm, 150mm (S-M), 170mm (L-XL) |
| Handlebar | Entity Expert, 35mm Clamp, 780mm Width, 25mm Rise, 9° Bend |
| Stem | Entity Expert, 35mm Length |
| weight | |
| Bike weight | 54lbs (Size L) |
Geo
| S | M | L | XL | |
| Rider’s height in ft/in | 5'2"–5'6" | 5'6"–5'10" | 5'10"–6'1" | 6'1"–6'5" |
| (A) Seat tube length | 390 | 400 | 430 | 450 |
| (B) Seat tube angle | 71.7 | 71.7 | 71.7 | 71.7 |
| (C) Effective seat tube angle | 77 | 77 | 77 | 77 |
| (D) Head tube length | 95 | 95 | 105 | 120 |
| (E) Head tube angle | 65 | 65 | 65 | 65 |
| (F) Effective top tube | 588 | 608 | 630 | 653 |
| (G) BB Height | 337 | 337 | 337 | 337 |
| (H) BB offset | 39 (drop) | 39 (drop) | 39 (drop) | 39 (drop) |
| (I) Chainstay length | 445 | 445 | 445 | 445 |
| (J) Wheelbase | 1205 | 1225 | 1249 | 1275 |
| (K) Frame reach | 445 | 465 | 485 | 505 |
| (L) Frame stack | 618 | 618 | 627 | 641 |
| (M) Standover height | 677 | 683 | 706 | 720 |
| S | M | L | XL | |
| (A) Seat tube length | 390 | 400 | 430 | 450 |
| (B) Seat tube angle | 72.6 | 72.6 | 72.6 | 72.5 |
| (C) Effective seat tube angle | 77.9 | 77.9 | 77.9 | 77.8 |
| (D) Head tube length | 95 | 95 | 105 | 120 |
| (E) Head tube angle | 65.9 | 65.9 | 65.9 | 65.8 |
| (F) Effective top tube | 586 | 606 | 628 | 651 |
| (G) BB Height | 349 | 349 | 349 | 349 |
| (H) BB offset | 27 (drop) | 27 (drop) | 27 (drop) | 27 (drop) |
| (I) Chainstay length | 442 | 442 | 442 | 442 |
| (J) Wheelbase | 1203 | 1223 | 1247 | 1274 |
| (K) Frame reach | 454 | 474 | 494 | 514 |
| (L) Frame stack | 611 | 611 | 620 | 634 |
| (M) Standover height | 689 | 695 | 718 | 732 |
Build
Bosch E-Mountain Bike - Assembly Guide
Your bike needs minor assembly before riding; use the tools and videos included.
As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.
Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.
How To Unbox Your Bosch E-MTB
Dial In Your Suspension Setup
Dial In Your Bike Fit
Dial In Your Tyre Pressures
Pre-Ride Check
