Model Year

2024 – Present

Colour Options

• Gloss Emerald Green / Metallic Dark Grey


Description

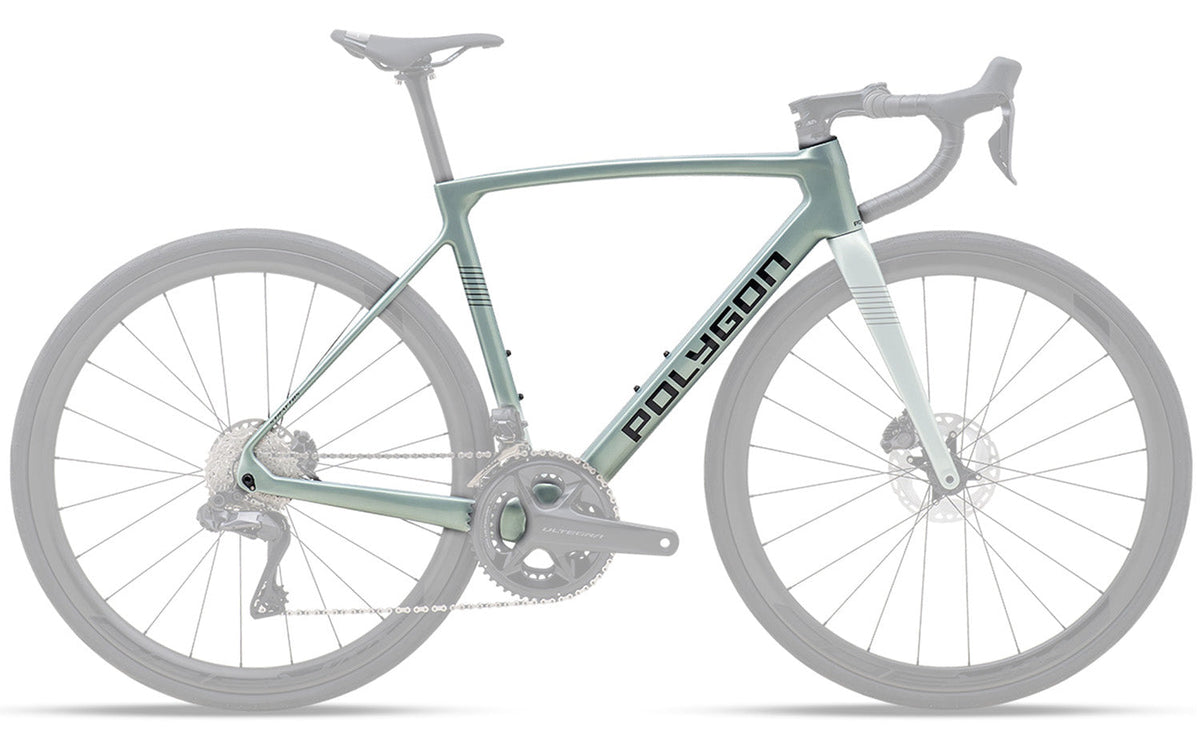

Engineered to deliver exceptional all-day comfort without sacrificing power or acceleration, the Polygon Strattos S8X Frameset* is built on Polygon’s lightweight ACX carbon fiber platform. Featuring endurance-focused geometry with dropped seatstays and tuned flex zones, this chassis absorbs high-frequency road vibrations to minimize rider fatigue over long distances. Designed around flat-mount hydraulic disc brakes and 12mm thru-axles, it incorporates subtle aerodynamic tube profiling, full internal cable routing optimized for electronic drivetrains, and clearance for modern high-volume road tires up to 700x30c, offering a stiff, fast, and smooth foundation for gran fondos and endurance road racing.

*Frame only without fork

Technical Specifications

• Frame Material: ACX All-Round UCI-Approved Carbon Fiber


• Wheel Size Compatibility: 700c (Up to 700x30c tire clearance)

• Rear Axle Spacing: 12x142mm Thru-Axle (12x100mm Front Thru-Axle)

• Bottom Bracket Standard: PressFit BB86

• Seatpost Diameter: 27.2mm (internal seatpost wedge clamp design)

• Headset Standard: Integrated Tapered Sealed Bearing (IS 52/28.6 | IS 52/40)

• Brake Mount Standard: Flat-Mount Hydraulic Disc

• Cable Routing: Fully internal shift, electronic wire, and hydraulic brake routing

• Intended Use: Endurance Road, Gran Fondos, and Sportive Cycling
