Details
FOLDABLE

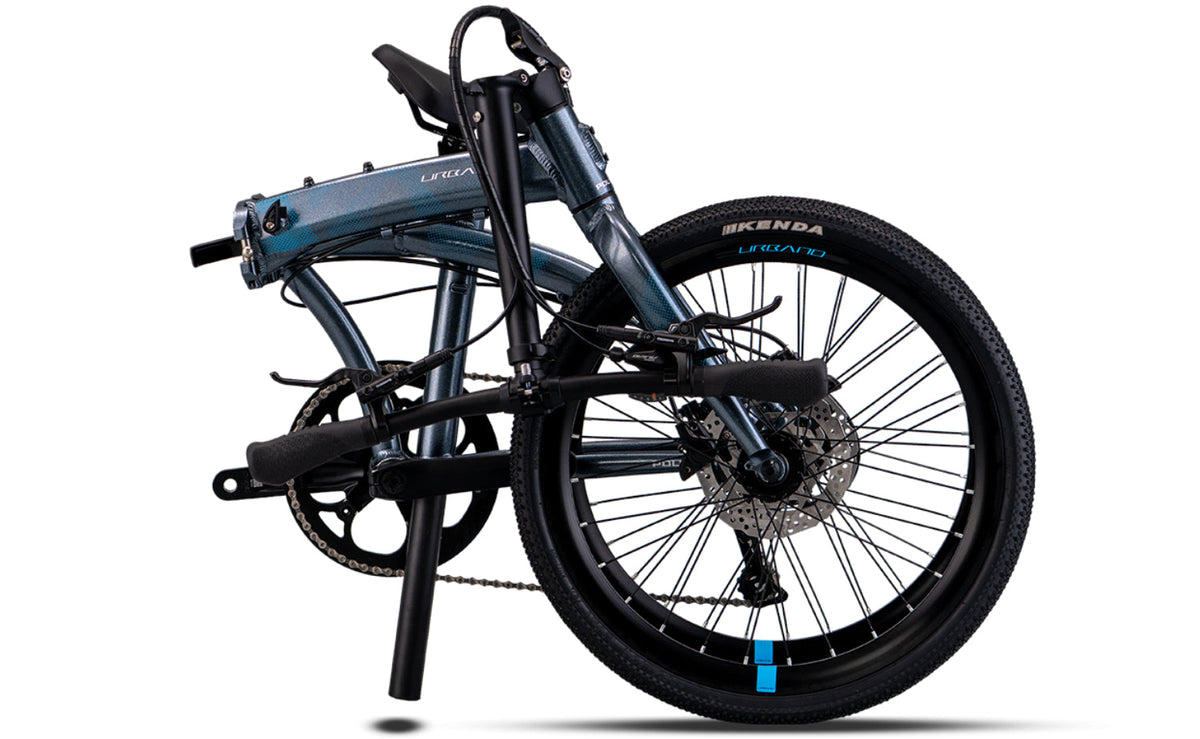

Built with a lightweight ALX frame, Polygon Urbano keeps the rider upright to improve comfort and visibility. Urbano was created for those looking for a unique portable bike to live an active lifestyle.
GEOMETRY
The Urbano 5 is an urban commuter's dream and easily tackles the city streets and public transport. Featuring a 73° head tube, a comfortable 73° seat tube and a short 434mm reach for upright comfort.
ALLOY TECH
Aluminium has long been the ideal material for bikes and aeroplanes with its incomparable strength-to-weight ratios. Polygon started with 6061 triple-butted tubing and heat treating for strength and durability.
Specs
| frameset | |
|---|---|
| Frame | ALX Aluminium Foldable Frame With Safety Lock And Magnetic |
| suspension | |
| Fork | ALX Aluminium Rigid Fork, Straight 1-1/8", Threadless 147mm |
| drivetrain | |
| Rear derailleur | Shimano Sora RD-R3000 |
| Shifter | Shimano Altus SL-M2010 9-Speed |
| Crank | Alloy 2-Piece Crankset, 53T Steel Chainring, 170mm Crank Arm |
| Cassette | Shimano CS-HG200, 11-34T, 9-Speed |
| Chain | KMC X12 |
| brakes | |
| Front brake | Tektro HDM-275 Hydraulic Disc, 160mm Rotor |
| Rear brake | Tektro HDM-275 Hydraulic Disc, 160mm Rotor |
| wheels | |
| Rim | Alloy, Double Wall 20” |
| Tyre | VEE SPEEDSTER 20"x1 3/8" |
| contact points | |
| Handlebar | Alloy, 25.4mm, 560mm Wide, 6 degree backsweep |
| Saddle | Entity Saddle |
| Seatpost | Alloy 34.9x580mm W/Shim to 36.4mm |
| Stem | Alloy Foldable Stem Adjustable |
| accessories | |
| Kick stand | Included |
Geo
| 13" | |
| Rider height | 4'11" - 6'3" |
| (A) Stack | 340 |
| (B) Reach | 434 |
| (C) Head Tube Angle | 73° |
| (D) Head Tube Length | 95 |
| (E) Seat Tube Angle | 73° |
| Seat Tube Angle Effective | 73° |
| (F) Seat Tube Length | 330 |
| (G) Top Tube Effective | 578 |
| (H) Bottom Bracket Height | 296 |
| (I) Bottom Bracket Offset | 40 |
| (J) Chainstay | 400 |
| (K) Wheel Base | 991 |
| (L) Standover Height | 576 |
* All lengths in mm
