Details
BUILT TO FLY
The Trid ZZ is your ticket to the next level. Its custom-designed AL6 alloy frame features an ultra-stiff, tapered headtube, a low bottom bracket, and a super low standover height – all optimized for throwing down tricks and boosting massive airs. This slopestyle machine is designed to unlock your creativity and push the limits of what's possible on two wheels.
SMOOTH LANDINGS GUARANTEED
The Trid ZZ is equipped with a 100mm RockShox Pike DJ fork and Monarch R rear shock, providing a plush and predictable ride that soaks up harsh landings and keeps you in control. while SRAM GX DH 1x7 drivetrain and Shimano hydraulic disc brakes ensure that you have the right speed to hit any gap or drop.
30 YEARS OF EXPERIENCE
Polygon is a factory-direct brand with over 30 years of experience crafting high-performance bikes at competitive prices. Vertically integrated manufacturing ensures quality and cost savings. Their mountain bikes have been tested on the world stage at events like Redbull Rampage and the World Cup circuit, boasting a 5-year frame warranty for peace of mind.
Model Year
2022 – Present
Colour Options
-
Metallic Grey / Black Decal
Description

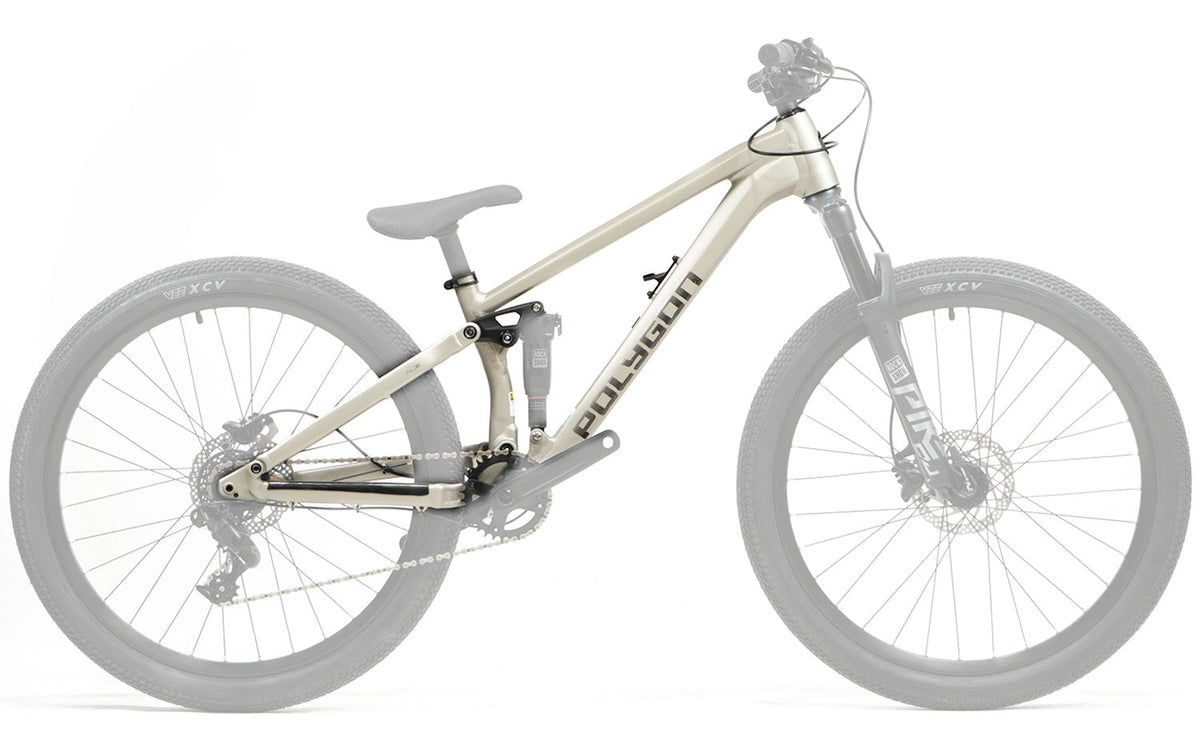

Co-developed and tested alongside world-class slopestyle riders like Sam Reynolds and Kurt Sorge, the Polygon Trid ZZ Frameset* is purpose-built for massive air, bike park slopestyle features, and high-impact dirt jump courses. Built on a ultra-stiff AL6 hydroformed 6061 aluminum frame delivering 100mm of rear travel, this chassis is designed to handle big trick landings while maintaining the flickable feel of a hardtail dirt jumper. Featuring ultra-short 400mm chainstays, a low standover height, internal cable routing, and a integrated downtube shifter mount adapter for clean bar-spins, it serves as an agile, durable, and highly capable base for custom slopestyle builds.
*Frame only without rear shock
Technical Specifications
-
Frame Material: AL6 Hydroformed Aluminum Alloy Slopestyle Chassis (100mm Rear Travel)
-
Wheel Size Compatibility: 26"
-
Recommended Fork Travel: 100mm (Tapered Steerer)
-
Recommended Rear Shock: Metric 190x51mm (7.5" x 2.0") / M8x22mm hardware
-
Rear Axle Spacing: 12x142mm Thru-Axle
-
Bottom Bracket Standard: 73mm Threaded BSA
-
Seatpost Diameter: 30.9mm (Pivotal or standard post compatible)
-
Headset Standard: Zero Stack / Semi-Integrated (ZS 44/28.6 | ZS 56/40)
-
Brake Mount Standard: Post-Mount Hydraulic Disc (Direct 160mm rotor)
-
Special Features: Dedicated Down-Tube Shifter Mount Adapter (for gyro/bar-spin setups) and internal cable routing
-
Intended Use: Slopestyle, Big Air Dirt Jumping, and Bike Park Progression
