Details
SHIMANO 105 DRIVETRAIN
Shimano's 105, R7000 series provides riders with a supportive groupset that beginner and advanced riders utilise for precise shifting, reliability all at an amazing price point. By using a 2x11 gearing system the drivetrain has 22 speeds and can conquer any climb or descent with an efficient and effective cadence.
A TRUSTED BRAND
Polygon boasts over 30 years of experience and is known for offering high-performance bikes at competitive prices. Polygon road bikes have led to numerous national titles and even a victory at the 2023 Tour De Taiwan. With a 5-year warranty, you can trust Polygon to deliver from the factory to the track.
105 BRAKES
The Shimano 105 series hydraulic disc brakes offer greater rider control in all conditions. With convenient one way bleeding and an easy hose joint system, installation and adjustment are kept simple.
Specs
| frameset | |
|---|---|

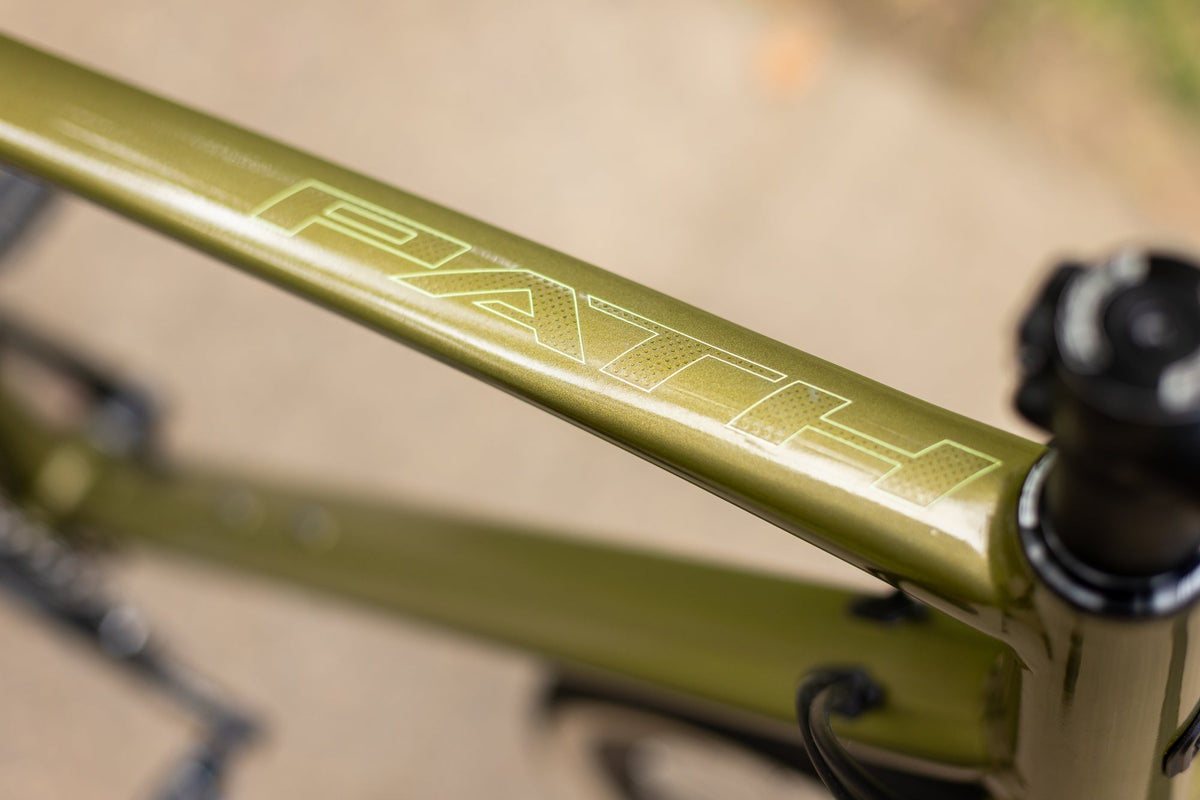

| Frame | ALX Gravel |
| Headset | Integrated Headset W/ Sealed Bearing, IS 42/28.6 / IS 52/40 |
| suspension | |
| Fork | Carbon Rigid, Full Carbon (15kg Load Capactiy) |
| drivetrain | |
| Rear derailleur | Shimano 105 RD-R7000 SS, 11-Speed |
| Shifter | Shimano 105 ST-R7020, 2x11-Speed Shifter |
| Crank | Praxis ALBA, 48-32T |
| Cassette | Shimano 105 CS-R7000, 11-Speed, 11-30T |
| Chain | KMC X11, 11-Speed |
| brakes | |
| Front brake | Shimano 105 ST-R7020 |
| Rear brake | Shimano 105 ST-R7020 |
| Rotor | Shimano SM-RT30, 160mm |
| wheels | |
| Front hub | Novatec D791SB, 12x100mm, 24H, CL |
| Rear hub | Novatec D792SB, 12x142, 24H, CL |
| Rim | Alloy Double Wall, FV, 24H , 622x19, H;30mm, Tubeless Tape Instaled * |
| Tyre | VeeTireCo G-Sport, 700x35C, DCC Compound, Tubeless ready |
| contact points | |

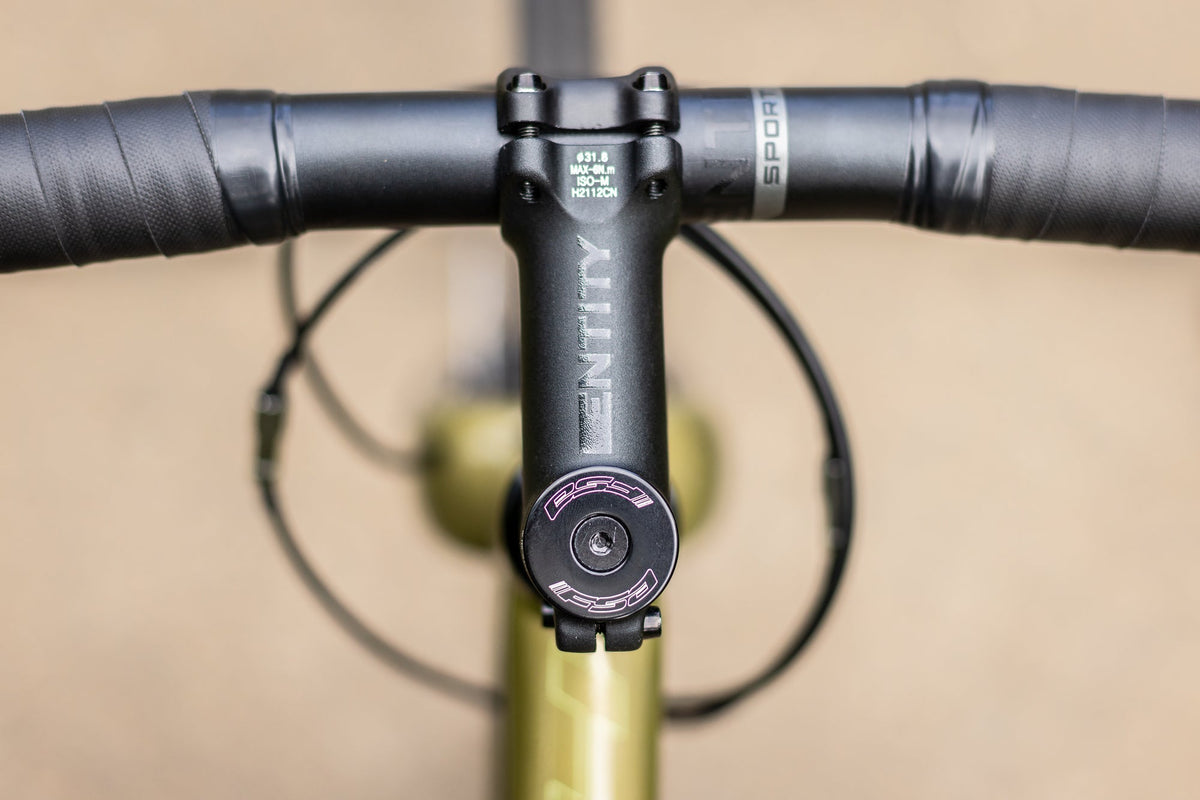

| Handlebar | Entity Sport, 121mm drop x 74mm reach x 16° flare |
| Saddle | Entity, Steel, ø7mm |
| Seatpost | Entity Sport, 27.2x350mm |
| Stem | Entity Sport, 31.8mm |
| weight | |
| Bike weight | 22lbs |
Geo
| S | M | L | XL | |
| Height (cm) | 4'11" – 5'4" | 5'4" – 5'9" | 5'9" – 6'2" | 6'2" – 6'5" |
| (A) Seat Tube Length | 430 | 470 | 515 | 560 |
| (B) Seat Tube Angle | 74.5 | 74 | 73.5 | 73 |
| (C) Effective Seat Tube Angle | 74.5 | 74 | 73.5 | 73 |
| (D) Head Tube Length | 140 | 160 | 190 | 220 |
| (E) Head Tube Angle | 70 | 71.5 | 71.8 | 72 |
| (F) Effective Top Tube | 525 | 550 | 580 | 610 |
| (G) Bb Height | 276.5 | 276.5 | 276.5 | 276.5 |
| (H) Bb Offset | 78 | 78 | 78 | 78 |
| (I) Chainstay Length | 425 | 425 | 425 | 425 |
| (J) Wheelbase | 1016.9 | 1022.8 | 1044.9 | 1067.5 |
| (K) Frame Reach | 367.2 14.46 | 379.7 | 395.3 | 410.4 |
| (L) Frame Stack | 568.9 | 593.8 | 623.5 | 652.8 |
| (M) Standover Height | 687.5 | 726 | 768.41 | 809.9 |
| Handle Bar Width | 420 | 420 | 440 | 440 |
| Stem Length | 80 | 80 | 90 | 90 |
Build
Polygon Path X - Assembly Instructions
Your bike needs minor assembly before riding; use the tools and videos included.
As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.
Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.
Unboxing Your Bike
Bike Fit Setup
Tyre Pressure Setup
Pre-Ride Check
