Model Year

2022 - 2024

Colour Options

• Purple / Grey / White

• Turquoise Surf / Grey / Black

Description

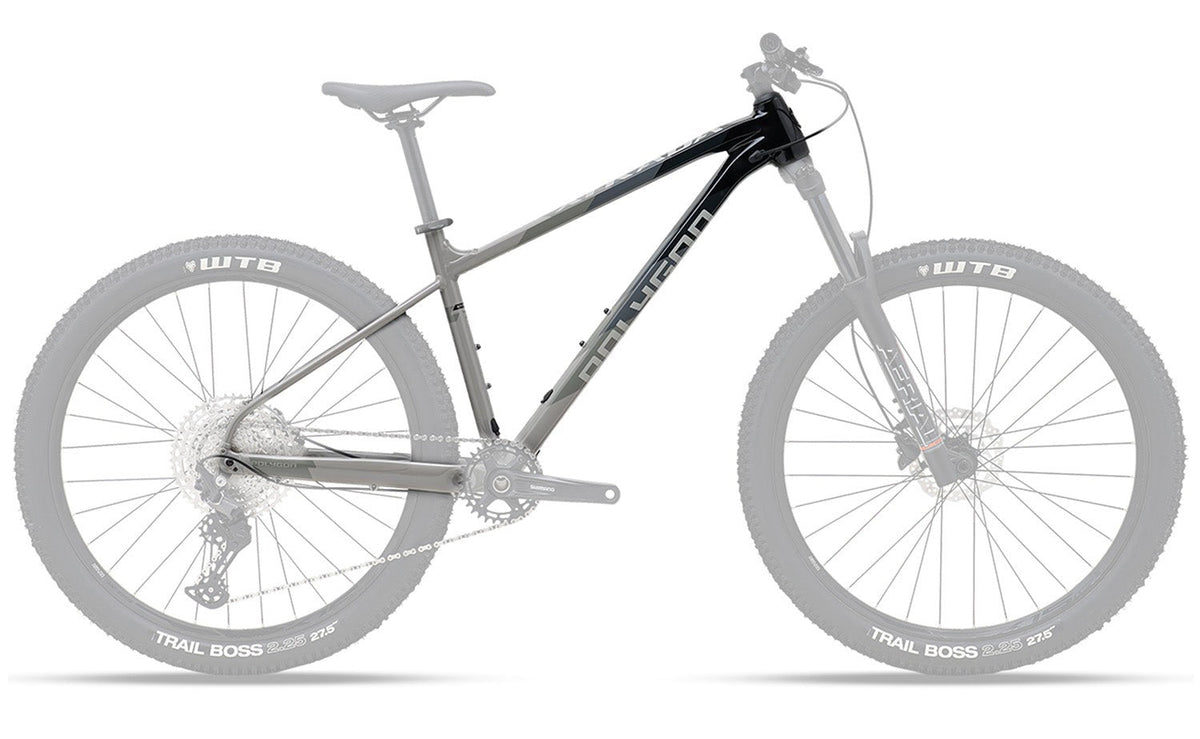

Serving as the premier alloy hardtail platform for the 2023 lineup, the 2023 Polygon Xtrada 7 Frameset is built for high-speed singletrack, local trail loops, and aggressive cross-country progression. Constructed from heat-treated, hydroformed ALX 6061 triple-butted aluminum alloy, this frame features Polygon's Wheel Fit Size System (27.5" or 29" wheel optimization) alongside progressive XC trail geometry—utilizing a slack 67° head tube angle for high-speed descending control and a steep seat tube angle for efficient power transfer on climbs. Complete with internal cable routing, a tapered headtube, threaded 73mm bottom bracket shell, and 12x148mm Boost thru-axle rear spacing, it delivers a lightweight, stiff, and responsive base for a high-performance 1x build.

Technical Specifications

• Frame Material: ALX XC Trail Hydroformed 6061 Triple-Butted Aluminum Alloy

• Wheel Size Compatibility: Wheel Fit Size System (27.5" for S–L / 29" for M–XL)

• Recommended Fork Travel: 120mm

• Rear Axle Spacing: 12x148mm Boost Thru-Axle

• Bottom Bracket Standard: 73mm Threaded BSA

• Seatpost Diameter: 27.2mm (internal dropper post routing compatible)

• Headset Standard: Zero Stack (ZS) Sealed Bearing Tapered (ZS 44/28.6 | ZS 56/40)

• Brake Mount Standard: Post-Mount Hydraulic Disc (Max 160mm/180mm rear rotor)

• Cable Routing: Internal shift and dropper post routing with external brake line routing

• Intended Use: Cross-Country (XC), Singletrack Progression, and Trail Riding
